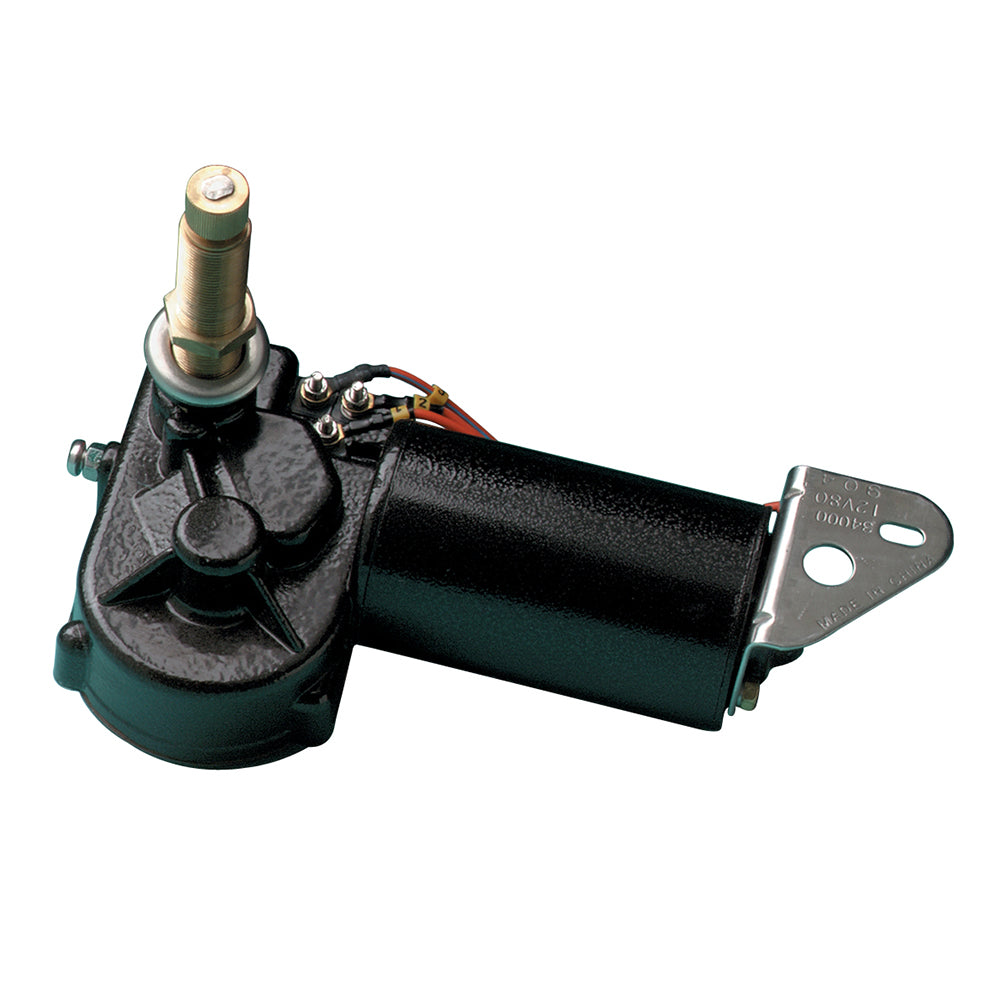

Marinco Wiper Motor MRV 12V with 2.5-inch Shaft - Model 34000

Wiper Motor MRV 12V 2.5" Shaft - 80

The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.

Features:

• Factory pre-set sweep of 80 or 110 degrees adjustable to 45, 60, 80 or 110 degrees
• 0.625" diameter shaft (16 mm)
• Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
• Corrosion-resistant casing
• Heavy-duty motor with right angle drive
• Two-speed motor, can be operated as one speed
• Solid brass knurled drive nut with brass and stainless steel drive shaft
• Adjustable right or left self parking, coast to park
• Retail version includes 5 amp fuse and holder
• Stainless steel fasteners and mounting bracket
• Use with three-position switch (not included)
• Compact size - 7.625" L x 4" W x 2" D
• Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
• Stall current: 11.5 to 13.0 amps
• No load current: 0.5 to 1.2 amps

The Marinco MRV 12V Wiper Motor is designed for reliable performance in demanding applications. With a compact size of approximately 7.6 inches in length, 4 inches in width, and 2 inches in depth, this heavy-duty motor features a corrosion-resistant casing suitable for various environments. It powers standard 22-inch by 22-inch deluxe arm and blade assemblies or 20-inch by 20-inch premier arm and blade setups, making it versatile for marine, industrial, or specialty vehicle use. The motor offers a factory preset sweep of 80 or 110 degrees, which is adjustable to 45, 60, 80, or 110 degrees to accommodate different windshield sizes and user preferences. Its 0.625-inch diameter shaft (16 mm) and available shaft lengths of 1.5, 2.5, or 3.5 inches—including a knurled arm fitting—allow for flexible installation options. The MRV motor includes a solid brass knurled drive nut along with brass and stainless steel drive shafts, ensuring durability and corrosion resistance. The unit features a dual-speed motor capable of operating at one speed or utilizing both for increased power, with a stall torque of 109 in-lbs, making it suitable for heavy-duty applications. It also includes adjustable right or left self-parking and coast-to-park functionality for convenience. The package comes with a 5-amp fuse and holder, stainless steel fasteners, and a mounting bracket for secure installation. Designed for ease of use, it works with a three-position switch (not included). The motor's robust construction and adjustable features make it ideal for maintaining clear visibility in harsh conditions while offering long-lasting performance. Whether used in marine vessels, utility vehicles, or specialty machinery, the Marinco MRV 12V Wiper Motor provides reliable and customizable operation for demanding environments.

Features:

• Factory preset sweep of 80 or 110 degrees, adjustable to 45, 60, 80, or 110 degrees

• 0.625-inch diameter shaft (16 mm) with multiple length options

• Corrosion-resistant casing suitable for harsh environments

• Heavy-duty motor with right angle drive for durability

• Two-speed operation with single-speed capability

• Solid brass knurled drive nut and stainless steel drive shaft for longevity

• Adjustable right or left self-parking with coast-to-park feature

• Includes 5-amp fuse and holder for safety

• Stainless steel fasteners and mounting bracket for secure installation

• Compact size suitable for various vehicle and equipment applications
