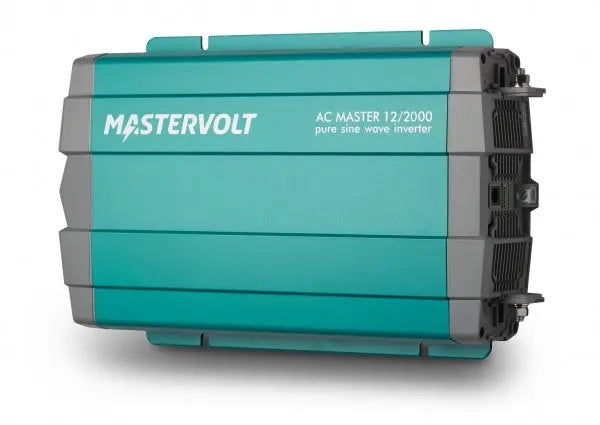

Mastervolt AC Master 12/2000 Inverter 12V Input 120v 2000W Output

Mastervolt AC Master 12/2000: Advanced Power Inverter for 12V Systems

Mastervolt AC Master 12/2000 Inverter 12V Input 120v 2000W Output

Mastervolt AC Master 12/2000 V) Inverter

Model: 28512000

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable speed fan for quiet operation at low power.
• Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 12V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Specifications

Output voltage115/120 V - 50/60 Hz (selectable)

Output waveform
true sine

Nominal battery voltage
12v

Recommended battery capacity
200 Ah

Continuous power at 25 degC / 77 degF, cos phi 1
2000 W

Continuous power at 40 degC / 104 degF, cos phi 1
2000 W

Peak load (1 min.)
< 2300 W

Peak load (1 s)
< 3500 W

AC connection
North American socket with GFCI

Galvanic isolation
Yes

Efficiency
92 %

Display/read-out
LED indication: battery voltage, load level, status

Alarms
potential free alarm contact

Dimensions, hxwxd
9.8 x 17.4 x 3.3 inch

Weight
11.5 lb

Technical specifications

Technology
high frequency, input & output fully isolated

Low battery voltage, switches off at
10,5 V

Low battery voltage, switches on at
12,5 V

High battery voltage, switches off at
16,5 V

High battery voltage, switches on at
14,5 V

Input current (nominal load)
200 A

No-load power consumption (ON mode)
< 1.8 A

No-load power consumption (energy saving mode)
< 0.1 A

Minimal DC fuse (slow blow)
250 A

Minimal cable size
70 mm2

Harmonic distortion typical
< 3 %

Cos phi
all power factors allowed

Temperature range (ambient temp.)
-4 degF to 140 degF

Cooling
temperature and load controlled fan

Protection degree
IP21, horizontal wall mounting

Protections
over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)

MasterBus compatible
yes, using a MasterBus AC Master Interface

High-Performance 2000W Output for Reliable Energy

The Mastervolt AC Master 12/2000 inverter provides a powerful 2000W output designed to convert 12V DC input into stable 120V AC power. This inverter supports a range of household and industrial appliances, offering reliable energy conversion without interruption. Built with advanced technology, it ensures clean and efficient power delivery, helping protect sensitive electronics from damage due to voltage fluctuations. Its robust construction and optimized design make it a perfect fit for off-grid, marine, or backup power applications where dependable energy is crucial.

Compact Design with User-Friendly Features

The Mastervolt inverter features a compact and lightweight design that simplifies installation in tight spaces. Alongside its powerful specifications, this model includes intuitive controls and clear display indicators for ease of use. Safety features such as overload protection, battery under-voltage alarm, and automatic shutdown enhance operational reliability. Users appreciate the quiet operation and efficient heat dissipation, ensuring the inverter runs optimally even in demanding environments. Whether for mobile or stationary setups, the AC Master 12/2000 balances performance with convenience.

Durability and Efficiency for Long-Term Use

Mastervolt is known for building durable products, and the AC Master 12/2000 inverter is no exception. Constructed from high-quality materials, this inverter withstands harsh conditions and continuous use. It achieves high conversion efficiency, minimizing energy loss and extending battery life. The inverter’s design incorporates smart cooling systems and sturdy internal components to maintain consistent output under load. These features provide users with a trustworthy power source that delivers peak performance over years, making it an excellent investment for anyone seeking dependable 12V to 120V power conversion.
