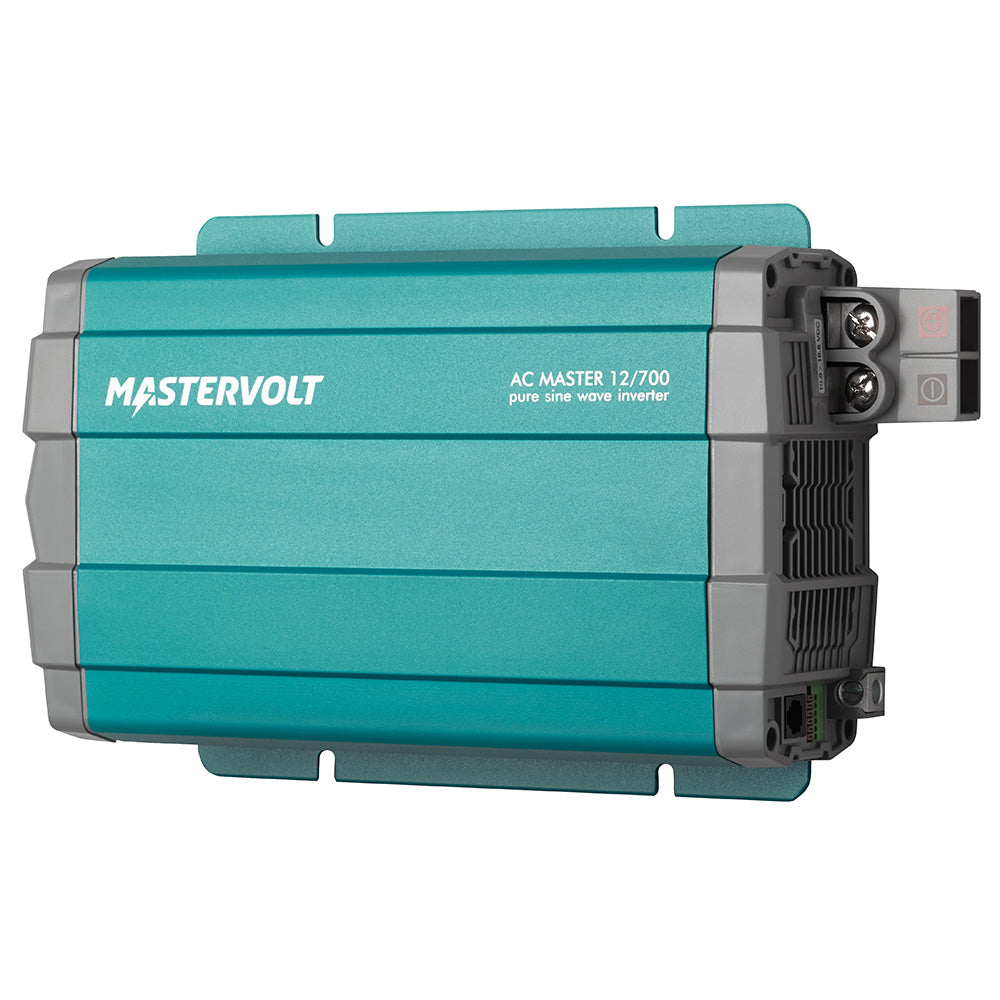

Mastervolt AC Master 12/700 (120V) Pure Sine Wave Inverter for Recreational and Semi-Professional Use

AC Master 12/700 (120V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when youre far from the nearest grid connection.

Features:

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power-saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable-speed fan for quiet operation at low power.
• Optional remote control for instant switch-off of the inverter and all connected equipment(not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

Applications:

• Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

• Output voltage: 100/110/115/120 V 50/60 Hz (selectable)
• Output waveform: True sine
• Nominal battery voltage:12V
• Recommended battery capacity: 100 Ah
• Continuous power at 25 C / 77 F, cos phi 1: 700 W
• Continuous power at 40 C / 104 F, cos phi 1: 700 W
• Peak load (1 min.): < 810 W
• Peak load (1 s): < 1230 W

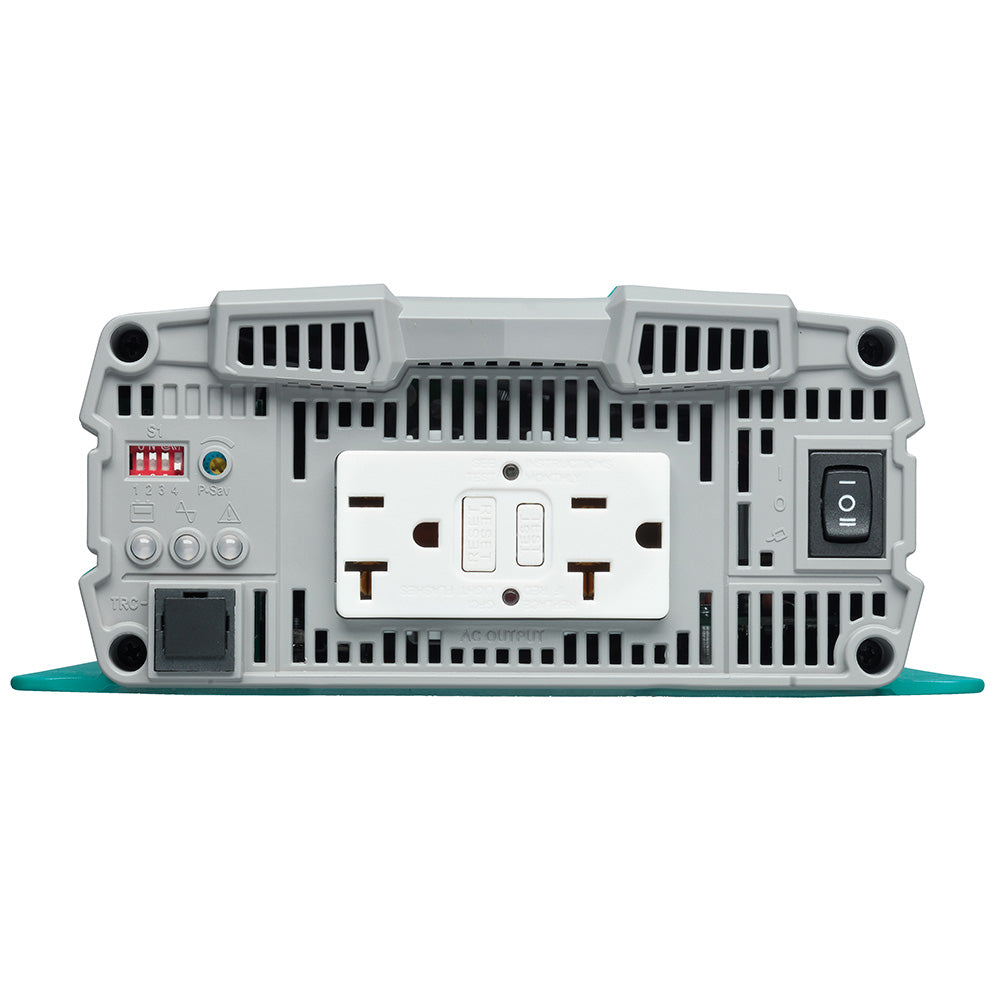

• AC connection: North American socket with GFCI
• Galvanic isolation: Yes
• Efficiency: 91%
• Display/read-out: LED indication: battery voltage, load level, status
• Alarms: Potential free alarm contact
• Dimensions, hxwxd: 200 x 330 x 83 mm/7.9 x 13.0 x 3.3 inc
• Weight: 2.6 kg/5.7 lb
• Compliance: Safety: ABYC A31, UL 458, EMC: FCC class B

Technical Specifications:

• Technology: high frequency, input output fully isolated
• Low battery voltage, switches off at 10.5 V
• Low battery voltage, switches on at 12.5 V
• High battery voltage, switches off at 16.5 V
• High battery voltage, switches on at 14.5 V
• Input current (nominal load): 70 A
• No-load power consumption (ON mode): < 1.5 A
• No-load power consumption (energy saving mode): < 0.1 A
• Minimal DC fuse (slow blow): 100 A
• Minimal cable size: 25 mm
• Harmonic distortion typical: < 3 %
• Cos phi: All power factors allowed
• Temperature range (ambient temp.): -20 C to 60 C, derating power > 40 C/-4 F to 140 F
• Cooling: Temperature and load controlled fan
• Protection degree: IP21, horizontal wall mounting
• Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Mastervolt AC Master 12/700 inverter is a reliable power solution designed for recreational and semi-professional applications where grid power is unavailable or unstable. This compact inverter converts 12V battery power into a stable 120V or 230V AC output, supporting essential home appliances, lighting, electric cooking, and power tools during outdoor adventures, mobile work environments, or off-grid locations. Its pure sine wave technology ensures that sensitive electronics operate smoothly, preventing potential damage caused by power fluctuations. The inverter's high-frequency switching eliminates humming sounds, providing quiet operation even under full load.

Built for durability and safety, the AC Master 12/700 features advanced protections including over-temperature, overload, short circuit, and voltage safeguards, ensuring reliable performance in demanding conditions. Its automatic power-saving function extends battery runtime, making it suitable for extended use. The inverter's lightweight, compact design simplifies installation and setup, saving valuable space and time. A convenient LED display indicates battery voltage, load level, and system status, allowing for quick monitoring. Optional remote control functionality enables quick shutdown of the inverter and connected equipment, enhancing operational safety.

Designed with versatility in mind, the AC Master 12/700 supports a wide range of applications from powering lighting and appliances to running electric tools in remote locations. Its galvanic isolation and compliance with safety standards like UL 458 and FCC Class B ensure that it meets rigorous industry requirements. The inverter is compatible with MasterBus systems when used with the appropriate interface, facilitating integration into larger power management networks. Whether used in RVs, boats, service vehicles, or off-grid cabins, the Mastervolt inverter provides dependable energy conversion for demanding environments, ensuring you stay powered wherever your adventures take you.

Features:

• Pure sine wave technology protects sensitive equipment and provides high-quality power output

• Delivers full peak power under demanding conditions for reliable operation

• Automatic power-saving system extends battery runtime during prolonged use

• Compact and lightweight design simplifies installation and setup

• Protected against over-temperature, overload, short circuit, and voltage fluctuations for safe operation

• Variable-speed fan offers quiet cooling during operation

• Optional remote control enables instant inverter shutdown (not available for 300W and 500W models)

• Convenient plug connection, with hard-wiring options for high-capacity models
