Mastervolt AC Master 12/700 Inverter 12V Input 120v 700W Output

Mastervolt AC Master 12/700 Inverter Features and Benefits

Mastervolt AC Master 12/700 Inverter 12V Input 120v 700W Output

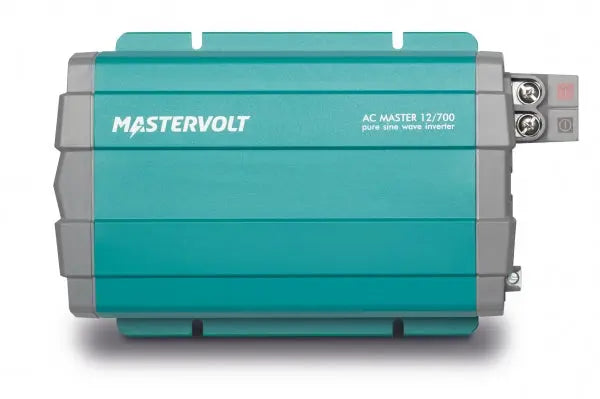

Mastervolt AC Master 12/700 (120 V) Inverter

Model: 28510700

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable speed fan for quiet operation at low power.
• Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 12V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Specifications

Output voltage100/110/115/120 V - 50/60 Hz (selectable)

Output waveform
true sine

Nominal battery voltage
12v

Recommended battery capacity
100 Ah

Continuous power at 25 degC / 77 degF, cos phi 1
700 W

Continuous power at 40 degC / 104 degF, cos phi 1
700 W

Peak load (1 min.)
< 810 W

Peak load (1 s)
< 1230 W

AC connection
North American socket with GFCI

Galvanic isolation
Yes

Efficiency
91 %

Display/read-out
LED indication: battery voltage, load level, status

Alarms
potential free alarm contact

Dimensions, hxwxd
7.9 x 13.0 x 3.3 inch

Weight
5.7 lb

Technical specifications

Technology
high frequency, input & output fully isolated

Low battery voltage, switches off at
10,5 V

Low battery voltage, switches on at
12,5 V

High battery voltage, switches off at
16,5 V

High battery voltage, switches on at
14,5 V

Input current (nominal load)
70 A

No-load power consumption (ON mode)
< 1,5 A

No-load power consumption (energy saving mode)
< 0,1 A

Minimal DC fuse (slow blow)
100 A

Minimal cable size
25 mm

Harmonic distortion typical
< 3 %

Cos phi
all power factors allowed

Temperature range (ambient temp.)
-4 degF to 140 degF

Cooling
temperature and load controlled fan

Protection degree
IP21, horizontal wall mounting

Protections
over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)

MasterBus compatible
yes, using a MasterBus AC Master Interface

Efficient Power Conversion with Mastervolt AC Master 12/700

The Mastervolt AC Master 12/700 inverter offers efficient 12V DC to 120V AC power conversion, designed to provide reliable and stable power output of 700 watts. Its advanced technology ensures minimal energy loss and maximum performance, making it ideal for marine, automotive, and off-grid systems. This inverter effectively converts battery power to household AC power, powering devices safely while maintaining high efficiency. Users benefit from a compact, robust design constructed to handle demanding environments while maintaining smooth operation under load.

Compact and Durable Design for Versatile Use

With a compact size and durable housing, the Mastervolt inverter fits seamlessly into a variety of setups including boats, RVs, and remote locations. The sturdy construction resists vibrations and moisture, ensuring reliable operation in harsh conditions. Whether installed in tight engine compartments or on-board electrical cabinets, this inverter balances durability with portability. Its user-friendly interface simplifies installation and monitoring, making it an excellent choice for professionals and enthusiasts seeking dependable power conversion solutions.

Advanced Safety and Monitoring Features

The Mastervolt AC Master 12/700 comes equipped with multiple safety features including overload protection, short circuit shutdown, and thermal monitoring. These features protect both the inverter and connected devices, ensuring safe operation in diverse scenarios. Additionally, the inverter provides clear status indicators to help users monitor performance and troubleshoot potential issues quickly. This level of intelligent control not only enhances system reliability but also extends the lifespan of connected electronics and battery banks.
