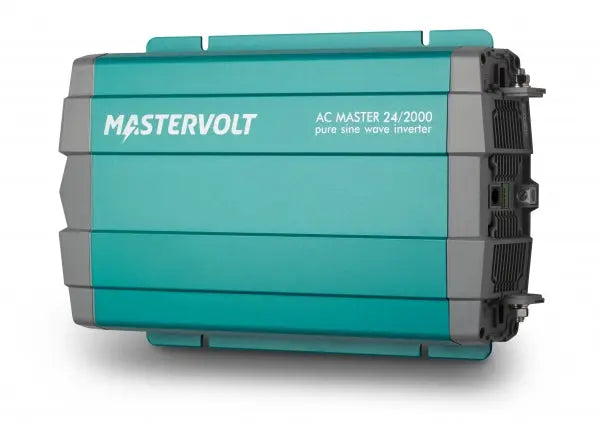

Mastervolt AC Master 24/2000 Inverter, 24v Input 120v 2000 Watt Output

Mastervolt AC Master 24/2000: Reliable Power Inverter with High Efficiency

Mastervolt AC Master 24/2000 Inverter, 24v Input 120v 2000 Watt Output

Mastervolt AC Master 24/2000 V) Inverter

Model: 28522000

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable speed fan for quiet operation at low power.
• Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 24V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Specifications

Output voltage100/110/115/120 V - 50/60 Hz (selectable)

Output waveform
true sine

Nominal battery voltage
24V

Recommended battery capacity
110 Ah

Continuous power at 25 degC / 77 degF, cos phi 1
2000 W

Continuous power at 40 degC / 104 degF, cos phi 1
2000 W

Peak load (1 min.)
< 2300 W

Peak load (1 s)
< 3500 W

AC connection
North American socket with GFCI

Galvanic isolation
Yes

Efficiency
93 %

Display/read-out
LED indication: battery voltage, load level, status

Alarms
potential free alarm contact

Dimensions, hxwxd
9.8 x 17.4 x 3.3 inch

Weight
11.5 lb

Technical specifications

Technology
high frequency, input & output fully isolated

Low battery voltage, switches off at
21v

Low battery voltage, switches on at
25v

High battery voltage, switches off at
33v

High battery voltage, switches on at
29v

Input current (nominal load)
100A

No-load power consumption (ON mode)
< 1.0 A

No-load power consumption (energy saving mode)
< 0.05 A

Minimal DC fuse (slow blow)
125 A

Minimal cable size
35 mm2

Harmonic distortion typical
< 5 %

Cos phi
all power factors allowed

Temperature range (ambient temp.)
-4 degF to 140 degF

Cooling
temperature and load controlled fan

Protection degree
IP21, horizontal wall mounting

Protections
over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)

MasterBus compatible
yes, using a MasterBus AC Master Interface

Robust Power Conversion with Mastervolt

The Mastervolt AC Master 24/2000 inverter is engineered to provide efficient and dependable power conversion. Designed to handle a 24-volt DC input and deliver a steady 120-volt, 2000-watt AC output, this inverter is ideal for both residential and marine applications. Its advanced circuitry ensures consistent voltage regulation, making it perfectly suited for sensitive electronics and demanding electrical loads. With Mastervolt’s reputation for quality, this model offers durability and high performance that users can trust for their critical power needs.

Compact Design for Versatile Installation

This Mastervolt AC Master inverter features a compact and sturdy design that allows for easy installation in tight spaces. Its lightweight construction does not compromise on power, providing a balance of size and capability. Whether it's installed on boats, recreational vehicles, or backup power systems, the inverter’s design simplifies setup and maintenance. Additionally, its robust build provides resistance to vibrations and harsh environments, extending the device’s lifespan and ensuring reliable operation in varied conditions.

Advanced Features for Safety and Performance

The Mastervolt AC Master 24/2000 comes equipped with multiple safety features, including overvoltage protection, thermal shutdown, and short-circuit prevention. These safeguards protect both the inverter and connected devices from electrical faults. The inverter also operates with high efficiency to minimize energy loss while delivering clean and stable power output. Its smart design includes user-friendly indicators and controls, allowing for easy monitoring and operation. These features make it an excellent choice for anyone seeking a reliable and safe power inverter solution.
