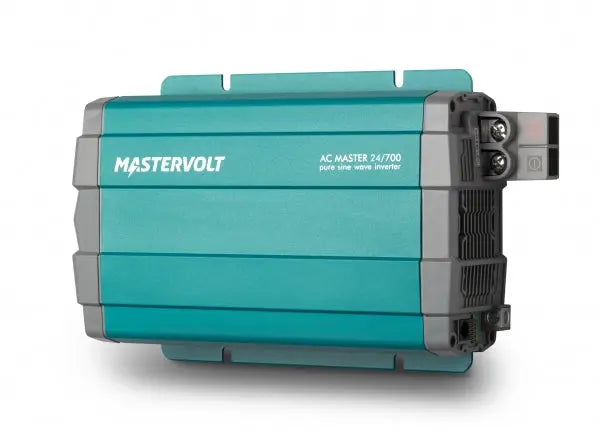

Mastervolt AC Master 24/700 Inverter, 24v Input 120v 700 Watt Output

Mastervolt AC Master 24/700 Inverter: Efficient Power Conversion for Your Needs

Mastervolt AC Master 24/700 Inverter, 24v Input 120v 700 Watt Output

Mastervolt AC Master 24/700 (120 V) Inverter

Model: 28520700

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable speed fan for quiet operation at low power.
• Optional remote control for instant switch off of the inverter and all connected equipment
• Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 24V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Specifications

Output voltage100/110/115/120 V - 50/60 Hz (selectable)

Output waveform
true sine

Nominal battery voltage
24 V

Recommended battery capacity
50 Ah

Continuous power at 25 degC / 77 degF, cos phi 1
700 W

Continuous power at 40 degC / 104 degF, cos phi 1
700 W

Peak load (1 min.)
< 810 W

Peak load (1 s)
< 1230 W

AC connection
North American socket with GFCI

Galvanic isolation
Yes

Efficiency
93 %

Display/read-out
LED indication: battery voltage, load level, status

Alarms
potential free alarm contact

Dimensions, hxwxd
7.9 x 13.0 x 3.3 inch

Weight
5.7 lb

Technical specifications

Technology
high frequency, input & output fully isolated

Low battery voltage, switches off at
21 V

Low battery voltage, switches on at
25 V

High battery voltage, switches off at
33 V

High battery voltage, switches on at
29 V

Input current (nominal load)
35 A

No-load power consumption (ON mode)
< 0.8 A

No-load power consumption (energy saving mode)
< 0.06 A

Minimal DC fuse (slow blow)
50 A

Minimal cable size
16 mm

Harmonic distortion typical
< 5 %

Cos phi
all power factors allowed

Temperature range (ambient temp.)
-4 degF to 140 degF

Cooling
temperature and load controlled fan

Protection degree
IP21, horizontal wall mounting

Protections
over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)

MasterBus compatible
yes, using a MasterBus AC Master Interface

Reliable Performance of the Mastervolt AC Master 24/700

The Mastervolt AC Master 24/700 inverter is designed to provide reliable and stable power conversion from 24 volts DC to 120 volts AC at 700 watts output. This inverter is ideal for applications demanding consistent power, such as recreational vehicles, boats, and off-grid systems. With its high-quality components and precise engineering, the Mastervolt inverter ensures excellent efficiency and minimal energy loss, making it a dependable choice for powering household electronics and sensitive equipment safely.

Compact Design and Easy Installation

The Mastervolt AC Master 24/700 features a compact and robust design, allowing for straightforward installation in confined spaces. Its lightweight construction combined with durable materials ensures long-lasting service even in harsh conditions. Installation is user-friendly, with clear wiring terminals and mounting options suitable for a variety of setups. Whether upgrading an existing system or building a new one, this inverter is designed to integrate seamlessly with your equipment, saving time and reducing complexity.

Advanced Safety Features and User-Friendly Operation

Safety is a top priority for the Mastervolt AC Master 24/700 inverter. It includes multiple built-in protections such as overload, short circuit, and thermal shutdown safeguards that protect both the inverter and connected devices. The inverter operates quietly with minimal electromagnetic interference, making it suitable for sensitive electronics. Additionally, its simple control interface allows users to monitor and adjust performance easily, ensuring efficient energy usage and peace of mind during operation.
