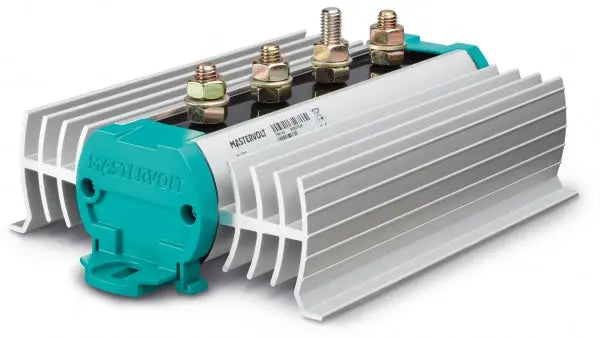

Mastervolt BI703 BI Series Battery Isolator 70 Amp 3 Battery

Mastervolt BI703 BI Series Battery Isolator for Reliable Power Management

Mastervolt BI703 BI Series Battery Isolator 70 Amp 3 Battery

Mastervolt BI 703 Battery Isolator

Model: 83007030

• Battery isolators that divide your charge current with a minimum energy loss.
• The Charge Mate for connecting and/or disconnecting two batteries.
• Battery Watch for monitoring the condition of your batteries (also usable as main switch).

Onboard systems usually consist of two or more batteries that function independently when powering the 12 or 24 V consumers. These batteries require independent charging with reliable battery isolators or battery combiners.

Mastervolt’s BI battery isolators are based on conventional diode technology. The diode voltage drop (ca. 0.6 V) can be compensated for by adapting the output voltage of the connected charger or alternator. Mastervolt Mass battery chargers and Alpha Pro charge regulators are standardly equipped with automatic voltage drop compensation.

The Mastervolt BI battery isolators are compact and fully solid state, preventing wear. The weight varies from 580 to 1300 grams.

Completely corrosion-proof material with aluminium heat sinks. The electronic components are encased in synthetic materials, the BI models have molded diode splitters.

The synthetic end plates feature connection lugs, the solid bolt connections with nuts and locking rings ensure easy installation.

Specifications

General specifications

Number of battery outlets
3

Dimensions, hxwxd
8.1 x 5.5 x 3.1 inch

Weight
2.4

Technical specifications

Max. output battery charger
50 A

Max. output alternator
70 A

Compensation diode
No

High-Quality Mastervolt Engineering

The Mastervolt BI703 BI Series battery isolator is designed to deliver dependable battery management for up to three batteries simultaneously. With a robust 70 Amp capacity, it ensures efficient distribution and isolation of power sources, preventing battery drain and optimizing system performance. Trusted for its durability and precision, the Mastervolt brand guarantees longevity and consistent performance in marine, automotive, and industrial applications.

Efficient Multi-Battery Isolation

This BI703 isolator is expertly engineered to handle three separate batteries without cross-draining. It protects each battery by enabling them to charge independently while sharing a common alternator. This maximizes battery life and maintains peak power availability, especially crucial in demanding environments where reliable energy management is vital.

Easy Installation and Maintenance

Mastervolt designs the BI703 isolator with user convenience in mind, offering straightforward installation and minimal maintenance requirements. The compact build and clear connection points reduce setup time, while the rugged housing ensures resistance to vibrations and harsh conditions. This makes the BI703 an ideal choice for professionals looking for efficient and long-lasting battery management solutions.
