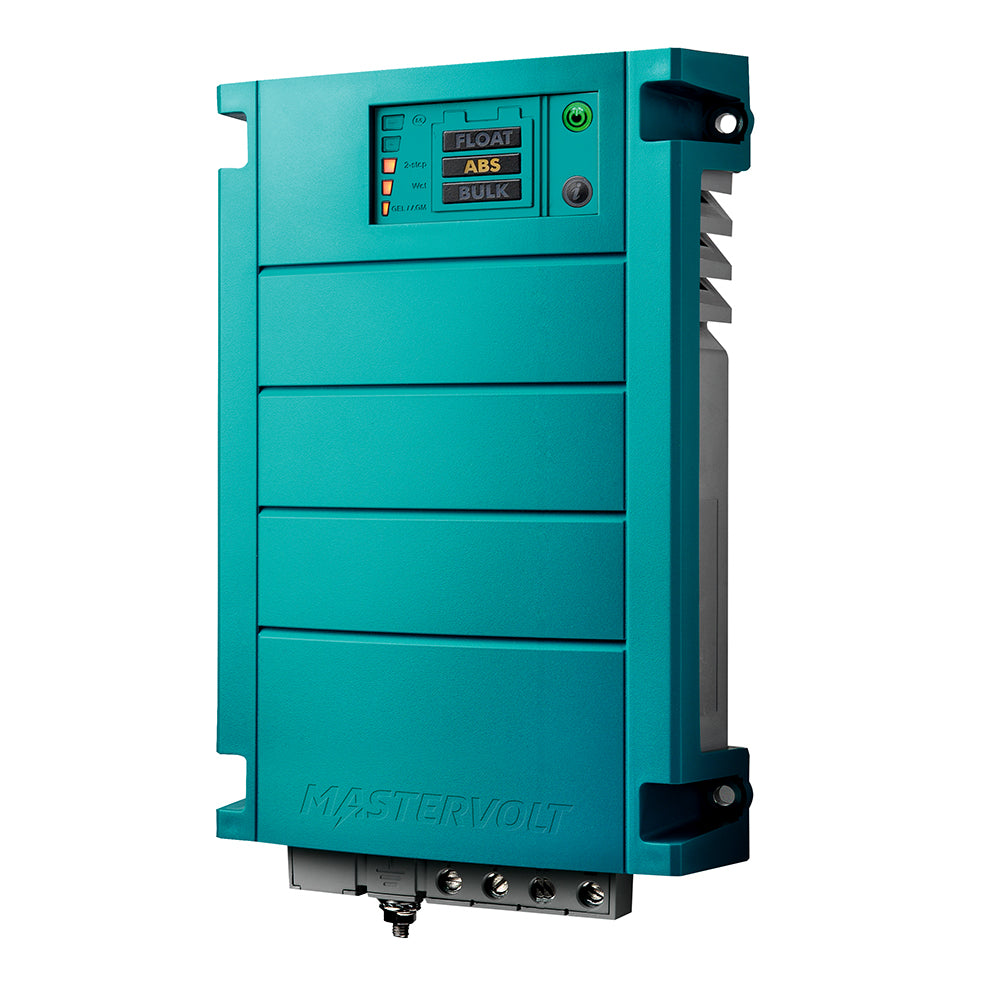

Mastervolt ChargeMaster 12 Amp Battery Charger - 3 Bank, 24V for Marine and RV Applications

ChargeMaster Battery Charger - 12 Amp - 3 Bank - 24V

Power You Can Rely On

Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolts ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (not available on ChargeMaster 24/6). You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.

Charging Your Batteries With Every Voltage

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.nbsp;

Sturdy Connectionsnbsp;

Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.

Charging Multiple Battery Banksnbsp;

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two meters of cable for a plug amp; play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

Features:

• 3-Step+ charging technology for fast and complete charging.
• Safe and complete charging due to standard safety features.
• Memory function prevents overcharging in case of an unstable power supply.
• Clear control panel.
• Easy to install.
• Built-in system functionality (MasterBus) in combination with other Mastervolt products (not available on ChargeMaster 24/6).

General Specifications

• Nominal output voltage: 24 Vnbsp;
• Total charge current:12 Anbsp;
• Number of battery outlets: 3nbsp;
• Charge current second output: 12 Anbsp;
• Charge current third output:12 Anbsp;
• Battery capacity range: 24-120 Ahnbsp;
• Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
• AC connection: 2M AC cable
• Power supply mode: yes
• Display/read-out: LED display
• Fastening: 4x screw
• Dimensions, H x W x D: 234 x 132 x 60 mm / 9.2 x 5.2 x 2.4 inch
• Weight: 1.8 kg / 4.0 lb
• Approvals:CE, ABYC A-31, SAE J1171/ISO8846 ignition protected

Technical Specifications

• Charge characteristic: IUoUo, automatic / 3-step+ for gel/AGM/wet/Lithium Ion
• Charge voltage Bulk: 28.8 V
• Charge voltage Absorption: 28.5 V
• Absorption time: 4 hours
• Charge voltage Float (wet batteries): 26.5 V
• Charge voltage Float (gel/AGM batteries): 27.6 V
• Temperature compensation: -60 mV/ C -33 mV/ F
• Voltage compensation: automatic
• Power consumption (DC side): lt; 2 mA
• Full load consumption (230 V AC): 435 W
• Current Control function: no
• Power factor control: 0.98
• Temperature range (ambient temp.): -25 C to 60 C, derating gt; 25 C -13 F to 140 F
• Sound level: lt; 52 dBA at 1M
• Protection degree: IP23
• Protections: over temperature, over load, short circuit, high/low battery voltage
• Cooling: vario fan
• MasterBus compatible: yes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Mastervolt ChargeMaster 12 Amp Battery Charger (Part Number: 44020120) provides reliable and efficient power management for your batteries, whether you're on a boat, RV, or off-grid setup. Designed with versatility in mind, this 3-bank, 24V charger is equipped to handle multiple battery banks simultaneously, ensuring your batteries are charged quickly and thoroughly. Its auto-ranging feature guarantees optimal operation across a wide voltage range (90-265 V AC), making it suitable for global use. The advanced 3-step+ charging technology ensures fast, safe, and complete charging cycles, which helps prolong battery life and maintain peak performance. The charger’s built-in safety features protect against overcurrent, overheating, and short circuits, providing peace of mind during operation. Its LED control panel offers clear status updates, simplifying system monitoring and adjustments. Easy to install and connect via MasterBus compatibility (except on the 24/6 model), the ChargeMaster seamlessly integrates into complex power systems for centralized control and remote monitoring. Crafted with high-quality materials, the charger features corrosion-resistant metal fittings for secure connections and durability. Its compact design and lightweight construction make it perfect for space-constrained environments while delivering professional-grade performance. This charger supports various battery types, including gel, AGM, wet, and lithium-ion, with specific voltage settings to optimize charging protocols. Certified with CE, ABYC A-31, and ISO8846 ignition protection standards, the ChargeMaster 12 Amp ensures safety and compliance for marine and recreational applications. Whether powering your vessel or maintaining backup batteries, the ChargeMaster is built to provide dependable power where you need it most.

Features:

• 3-Step+ charging technology for fast and complete charging

• Auto-ranging operation from 90-265 V AC for global compatibility

• Multi-bank charging with three separate outputs

• Standard safety features for safe operation

• Memory function prevents overcharging during unstable power conditions

• User-friendly LED control panel for easy system monitoring

• Simple installation with secure, corrosion-resistant connections

• Supports gel, AGM, wet, and lithium-ion batteries with adjustable voltage settings

• MasterBus compatibility for system integration and remote control (excluding ChargeMaster 24/6)
