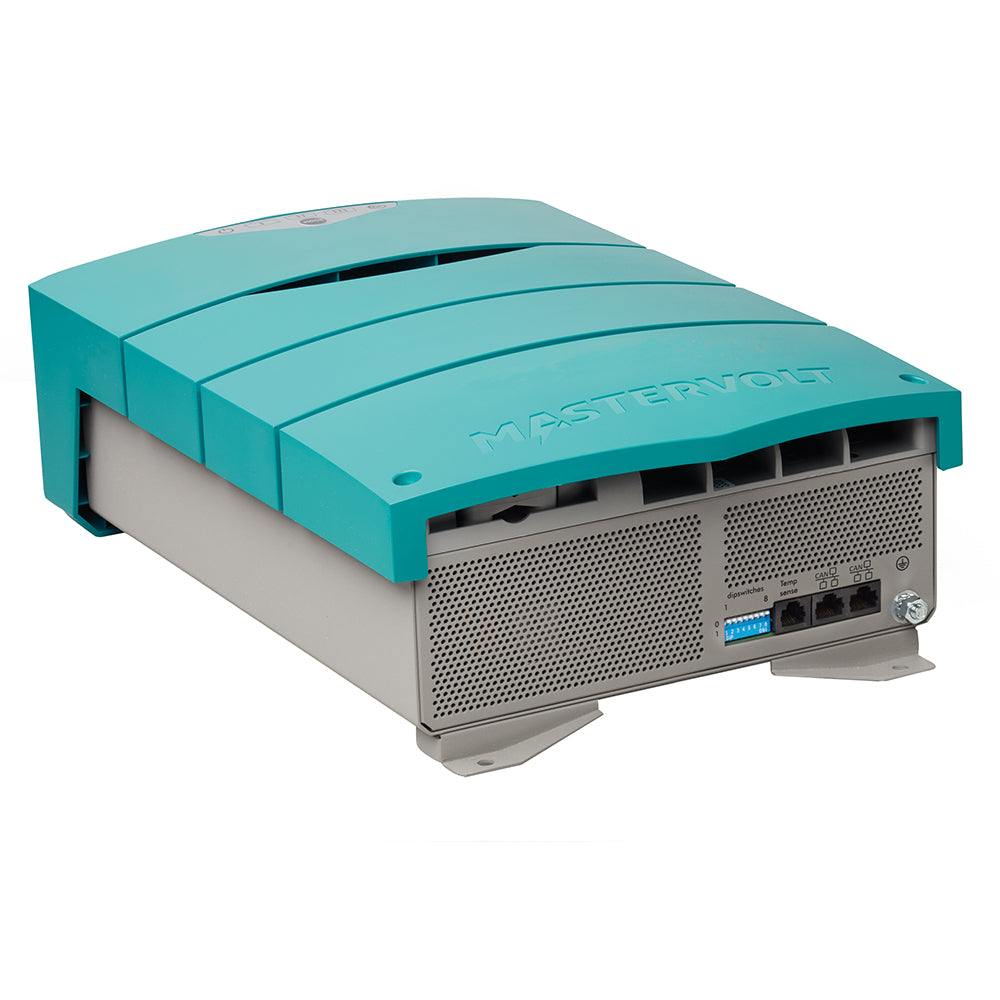

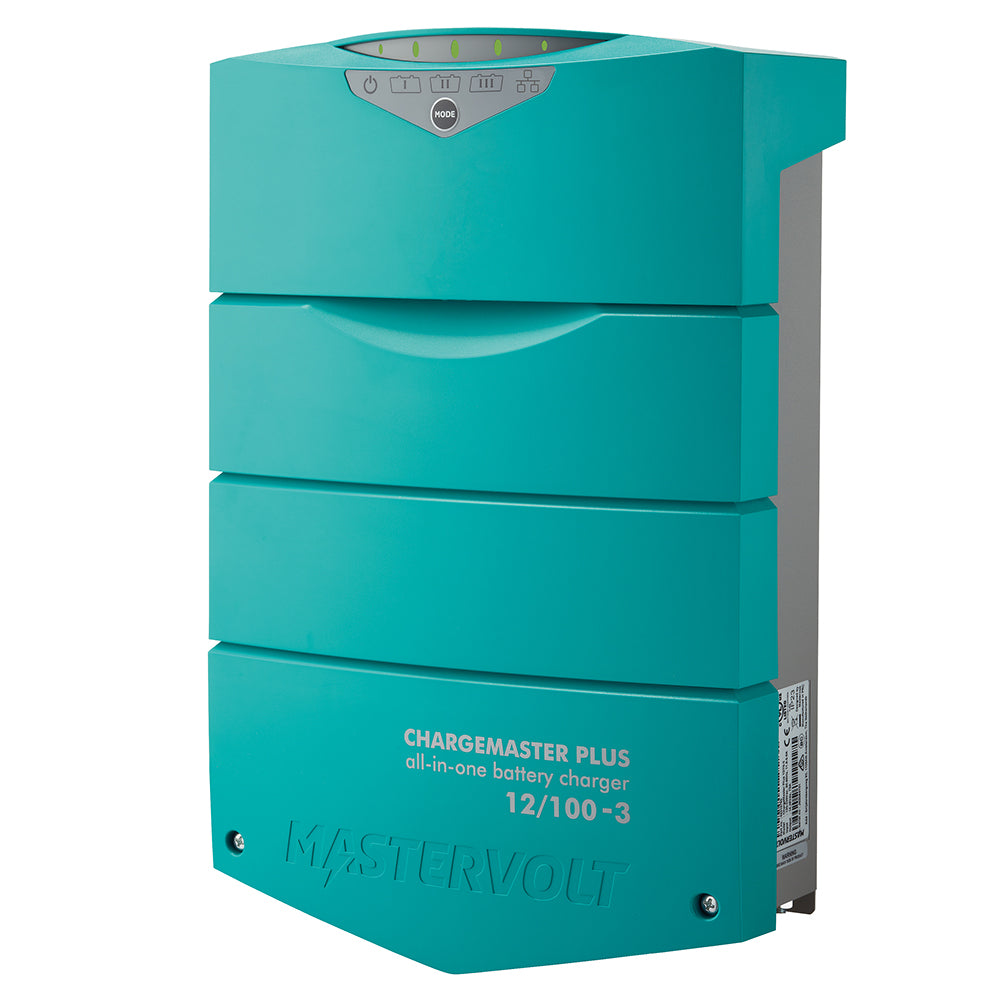

Mastervolt ChargeMaster Plus 12/100-3 CZone/MBus Battery Charger

ChargeMaster Plus 12/100-3 CZone/MBus

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

Batterys Best Friend

With the Batterys Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

• Revival mode: automatically revives even fully depleted batteries.
• Priority Charge: redirect available power to the lowest battery, for faster charging.
• Smart Input: charge all three batteries from one single alternator for continuous charging on the go.

Global Charging

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

Powerful Connections

In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features:

• MasterBus, CZone and NMEA communication.
• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
• Charges multiple batteries while being underway.
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 C.
• Safe Charge: quickly recognize the State of Charge for extended battery life.
• Very wide operating range of 80-275 V AC, 35-70 Hz.
• Compact, easy to connect and quick to install.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Mastervolt ChargeMaster Plus 12/100-3 is a versatile and high-performance battery charger designed for demanding marine, mobile, and off-grid applications. This advanced device combines multiple functions into a single unit, eliminating the need for auxiliary chargers, battery isolators, and VSRs, which simplifies system design and reduces installation costs. Capable of charging up to three batteries simultaneously, the ChargeMaster Plus employs a fast and safe 3-step+ charging method suitable for various battery chemistries including Lithium Ion, Gel, and AGM. Its intelligent features include Revival Mode, which automatically revives fully depleted batteries, and Priority Charge, which directs power to the lowest battery for expedited charging, ensuring optimal battery health and longevity. The Smart Input feature allows for continuous charging from a single alternator, making it ideal for mobile applications where power sources may vary. Designed to operate across the globe, the ChargeMaster Plus handles wide AC voltage ranges and fluctuating frequencies, maintaining consistent performance even in harsh environments. Its robust construction and compliance with standards such as CE, ABYC, UL, SAE, CEC, and RCM/C-Tick make it suitable for demanding marine and mobile markets. The system simplifies operation with an easy-to-understand display that indicates the charging phase for all three outputs, while its ergonomic connections facilitate quick and straightforward installation. Integrated communication protocols, including MasterBus, CZone, and NMEA, enable seamless integration with other system components, displays, and power management systems. The device can also serve as a power supply for delicate communication equipment or during construction phases of marine vessels, adding to its versatility. Key features include multi-communication capabilities, dual outputs, built-in DC-DC converter, current limiter, and VSR. It supports a wide operating voltage range from 80 to 275 V AC and delivers extended output power, providing 20% more at 14.4 V and 80% charging power at 60°C. Compact and easy to install, the ChargeMaster Plus is a reliable choice for complex power management systems that demand efficiency, safety, and flexibility in battery charging.

Features:

• MasterBus, CZone, and NMEA communication for seamless system integration.

• Multi-charger with dual outputs, including one in/output, DC-DC converter, current limiter, and VSR.

• Compatible with Lithium Ion, Gel, AGM, and various battery sizes and configurations.

• Capable of charging multiple batteries simultaneously while underway.

• Extended specifications providing 20% more output at 14.4 V and 80% charging power at 60°C.

• Safe Charge feature for accurate State of Charge recognition, extending battery life.

• Wide operating voltage range from 80 to 275 V AC with 35-70 Hz frequency.

• Compact design for easy connection and quick installation, suitable for demanding environments.
