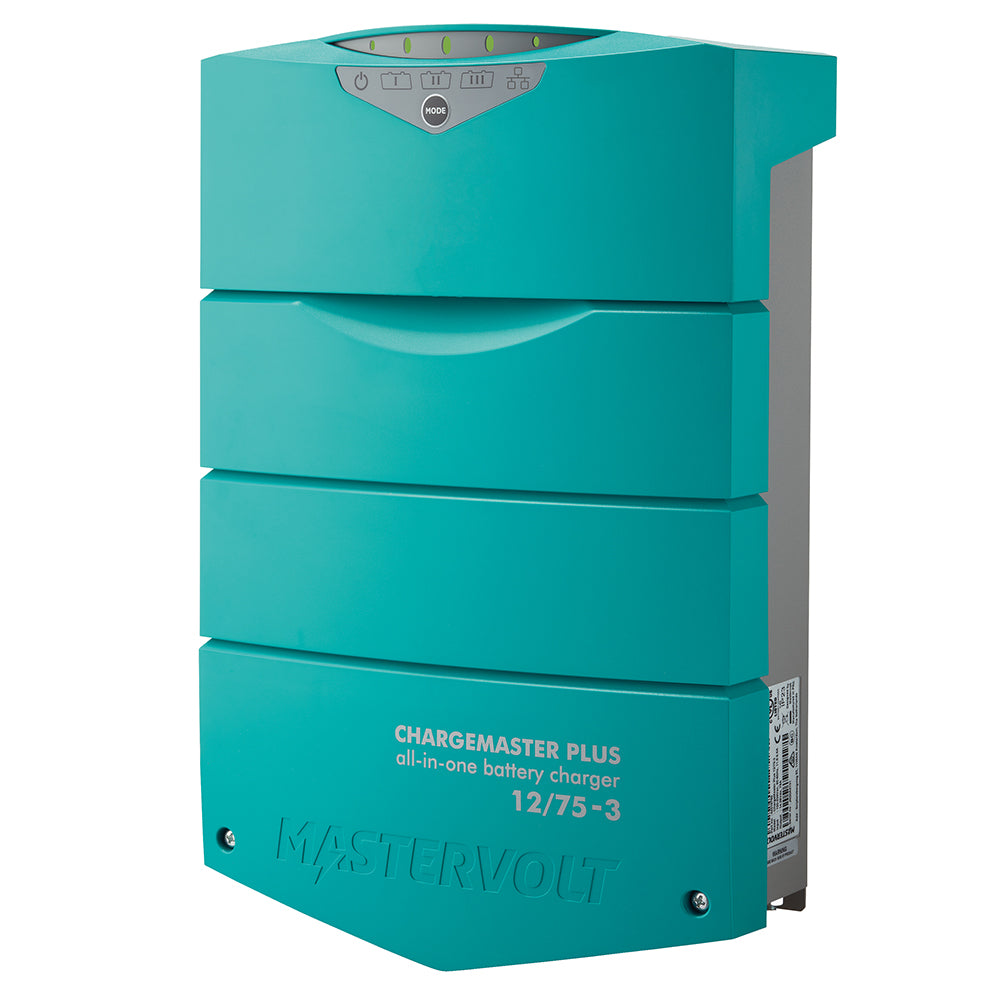

Mastervolt ChargeMaster Plus 12/75-3 CZone Battery Charger - 3 Bank, 75A Max Current

ChargeMaster Plus 12/75-3 CZone - 3-Bank

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

Batterys Best Friend

With the Batterys Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

• Revival mode: automatically revives even fully depleted batteries.
• Priority Charge: redirect available power to the lowest battery, for faster charging.
• Smart Input: charge all three batteries from one single alternator for continuous charging on the go.

Global Charging

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments.For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

Powerful Connections

In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features:

• MasterBus, CZone and NMEA communication
• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger
• Charges multiple batteries while being underway
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 C
• Safe Charge: quickly recognize the State of Charge for extended battery life
• Very wide operating range of 80-275 V AC, 35-70 Hz

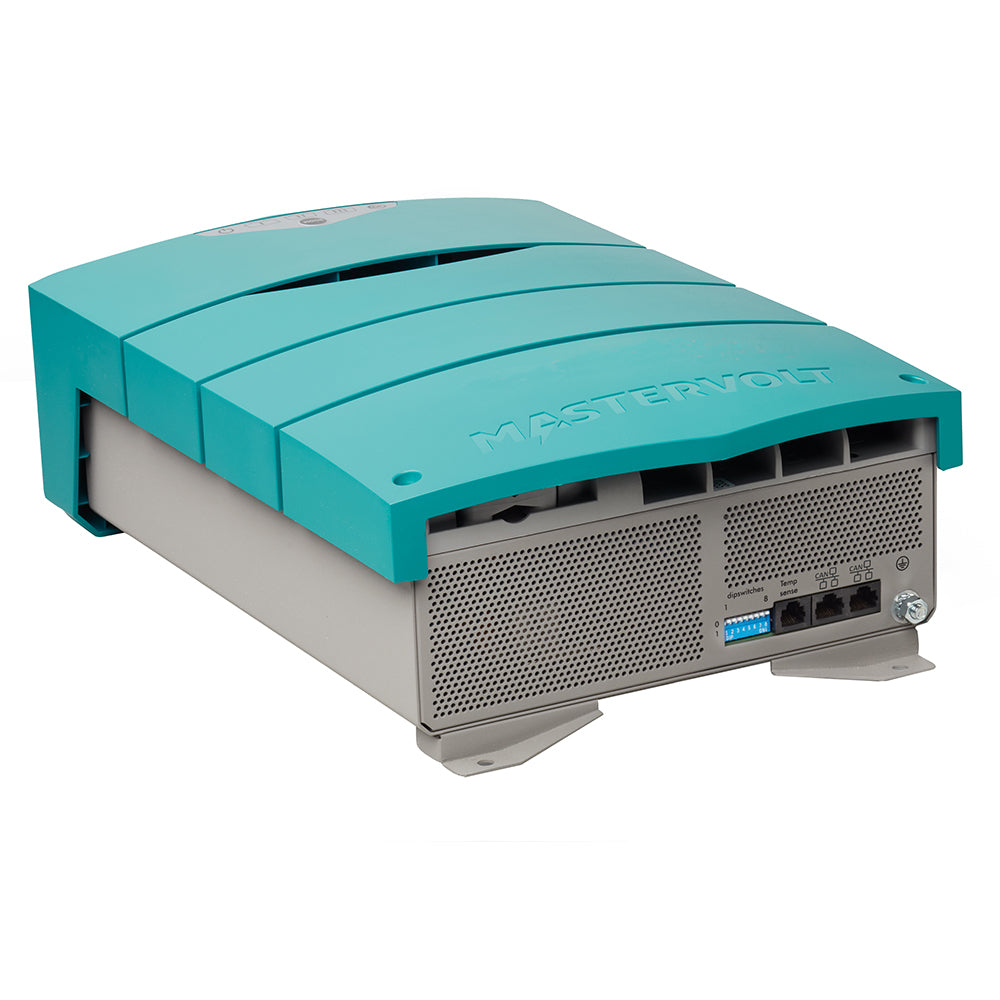

• Compact, easy to connect and quick to install

Specifications:

• Nominal Output Voltage: 12V
• Max Charge Current Per Output: 75A
• Number of Battery Outlets: 3 (max.)
• Display/Read-Out: LED Display
• Total Charge Current: 75A at 14.4V

The Mastervolt ChargeMaster Plus 12/75-3 CZone is a versatile and advanced multi-bank battery charger designed for demanding marine and mobile applications. It integrates multiple functions, such as auxiliary charging, battery isolators, and VSR, simplifying system setup while reducing overall costs. Capable of safely and efficiently charging up to three batteries simultaneously, it supports a variety of battery chemistries, sizes, and voltages, making it an ideal choice for complex energy systems.

Equipped with the innovative Batterys Best Friend architecture, the ChargeMaster Plus employs a fast and safe 3-step+ charging method, ensuring optimal battery health and longevity. Unique features like Revival mode allow automatic revival of fully depleted batteries, while Priority Charge intelligently directs power to the lowest charged battery for faster overall charging. The Smart Input feature enables the unit to draw power from a single alternator, facilitating continuous charging during operation. Designed for global use, it handles wide AC voltage ranges and high temperatures, maintaining reliable performance in harsh environments. Compliance with CE, ABYC, UL, SAE, CEC, and RCM/C-Tick standards ensures safety and quality for marine and mobile markets.

System simplicity is a key aspect of this charger, with clear LED displays indicating the charge phase for each output. Its robust, ergonomic connections reduce installation time, and the integrated VSR eliminates the need for additional components by efficiently directing alternator energy to the batteries. The ChargeMaster Plus supports communication protocols such as MasterBus, CZone, and NMEA, enabling seamless integration with displays, shunts, and power management systems, including standards like FireCan and CANopen. It can also serve as a power supply during setup or for delicate communication devices, adding to its versatility.

Features include multi-protocol communication, dual outputs, DC-DC conversion, current limiting, and support for various battery types like Lithium Ion, Gel, or AGM. It can handle large or small battery banks while underway, providing extended power capacity with 20% more output at 14.4V and 80% charging power at 60°C. The charger’s wide operating voltage range of 80-275 V AC and frequency of 35-70 Hz ensures reliable operation worldwide. Compact and easy to install, the ChargeMaster Plus is a robust solution for complex power systems requiring efficient, safe, and intelligent battery management.

Features:

• MasterBus, CZone, and NMEA communication for seamless integration

• Dual outputs with in/out configuration, DC-DC converter, current limiter, and VSR

• Supports multiple battery chemistries including Lithium Ion, Gel, AGM, and various sizes

• Charges multiple batteries simultaneously while underway

• Provides 20% more output at 14.4V and 80% charging power at 60°C for extended performance

• Fast and safe 3-step+ charge method with battery health monitoring

• Automatic Revival mode for fully depleted batteries

• Priority Charge feature for faster charging of the lowest battery

• Global AC voltage compatibility (80-275 V) and wide frequency range (35-70 Hz)

• Compact design with quick installation and robust connections
