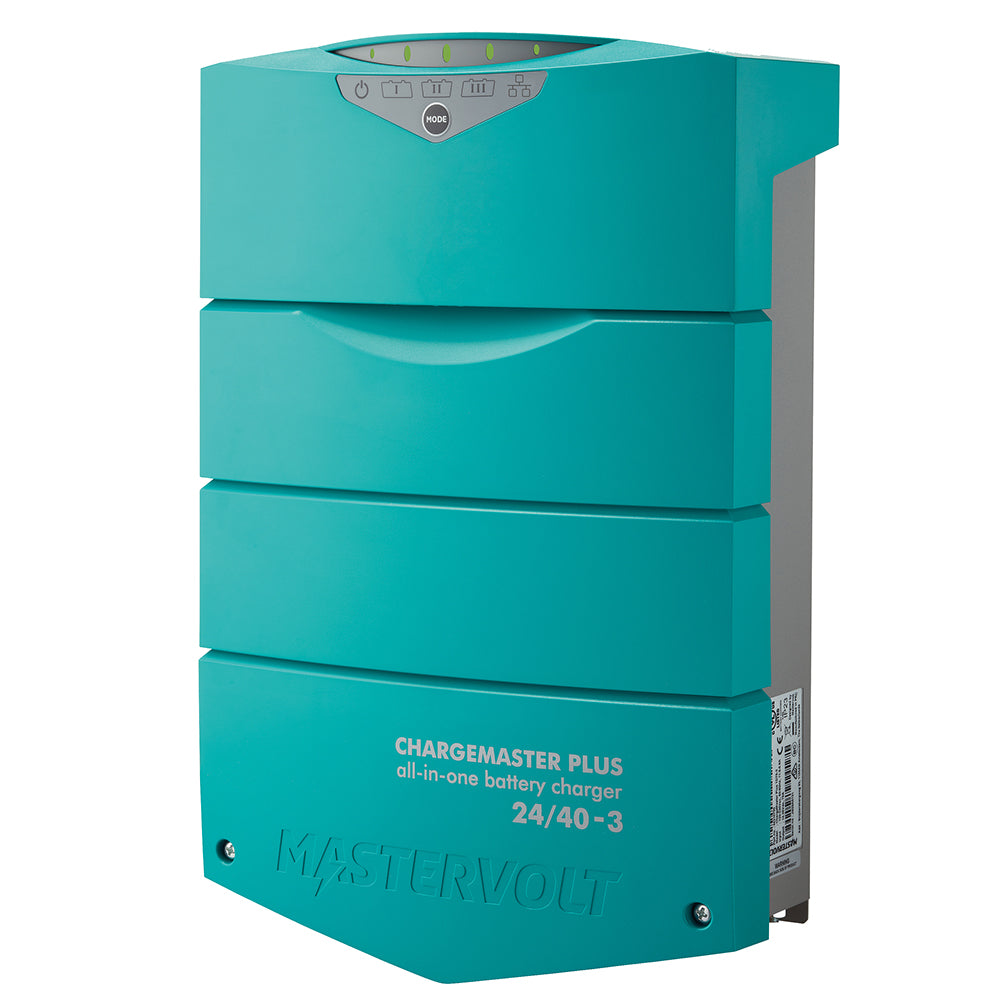

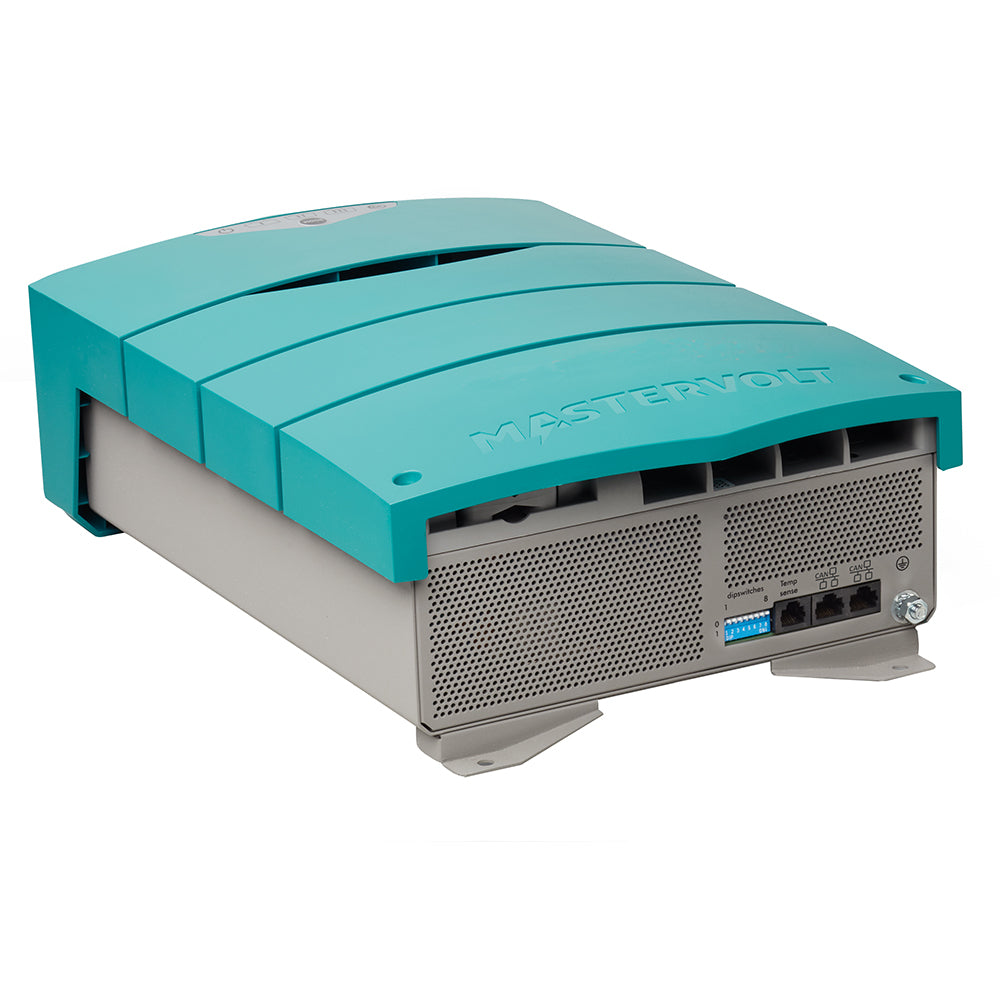

Mastervolt ChargeMaster Plus 24/40 CZone/MBus Battery Charger for Marine and Mobile Applications

ChargeMaster Plus 24/40 CZone/MBus

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

Batterys Best Friend

With the Batterys Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

• Revival mode: automatically revives even fully depleted batteries.
• Priority Charge: redirect available power to the lowest battery, for faster charging.
• Smart Input: charge all three batteries from one single alternator for continuous charging on the go.

Global Charging

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

Powerful Connections

In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features

• MasterBus, CZone and NMEA communication.
• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
• Charges multiple batteries while being underway.
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 C.
• Safe Charge: quickly recognize the State of Charge for extended battery life.
• Very wide operating range of 80-275 V AC, 35-70 Hz.
• Compact, easy to connect and quick to install.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Mastervolt ChargeMaster Plus 24/40 CZone/MBus is an advanced multi-function battery charger designed to simplify and enhance your power management system. This versatile charger replaces traditional auxiliary chargers, battery isolators, and voltage sensitive relays (VSR), reducing system complexity and installation time while providing reliable, safe, and fast charging for up to three batteries. Built for global use, it handles various AC voltages and frequencies, making it suitable for marine, mobile, and other demanding environments. The robust design ensures operation under high temperatures and voltage fluctuations, complying with international safety and quality standards including CE, ABYC, UL, SAE, CEC, and RCM/C-Tick.

Featuring the innovative Batterys Best Friend architecture, the ChargeMaster Plus can accommodate multiple battery chemistries such as Lithium Ion, Gel, and AGM, as well as various sizes and voltages. Its intelligent 3-step+ charging method ensures fast and safe battery recharge while minimizing the risk of overcharging. Unique features include Revival Mode, which automatically recharges even fully depleted batteries, and Priority Charge, which directs available power to the lowest charged battery for faster overall charging. The Smart Input function allows all three batteries to be charged from a single alternator, enabling continuous operation during mobile use.

Designed with system simplicity in mind, the ChargeMaster Plus displays the charge phase for each battery output clearly, facilitating easy monitoring and troubleshooting. Its durable and ergonomic connections streamline installation, while the integrated VSR eliminates the need for additional components, ensuring efficient energy flow from the alternator to the batteries. The device supports comprehensive communication protocols, including MasterBus, CZone, and NMEA, allowing seamless integration with displays, shunts, and other power management systems. It can also serve as a power supply for sensitive communication equipment or during construction phases, offering flexible operation in various scenarios.

Additional features include dual outputs, a built-in DC-DC converter, current limiter, and the ability to combine multiple battery types and banks within a single unit. The charger delivers up to 20% more output at 14.4 V and offers 80% charging power at 60°C for enhanced performance. With a very wide operating voltage range of 80-275 V AC and 35-70 Hz, it is easy to install and reliable in demanding environments. The comprehensive manual provides detailed guidance for setup and operation, ensuring optimal use of this sophisticated battery management device.

Features:

• MasterBus, CZone, and NMEA communication capabilities for seamless system integration

• Multicharger with two outputs, one in/output, DC-DC converter, current limiter, and VSR

• Compatible with Lithium Ion, Gel, or AGM batteries and various sizes for flexible system design

• Charges multiple batteries simultaneously during operation

• Enhanced output with 20% more at 14.4 V and 80% charging power at 60°C

• Intelligent charge recognition for extended battery lifespan

• Wide AC voltage and frequency range for global compatibility

• Compact design with easy connection and quick installation
