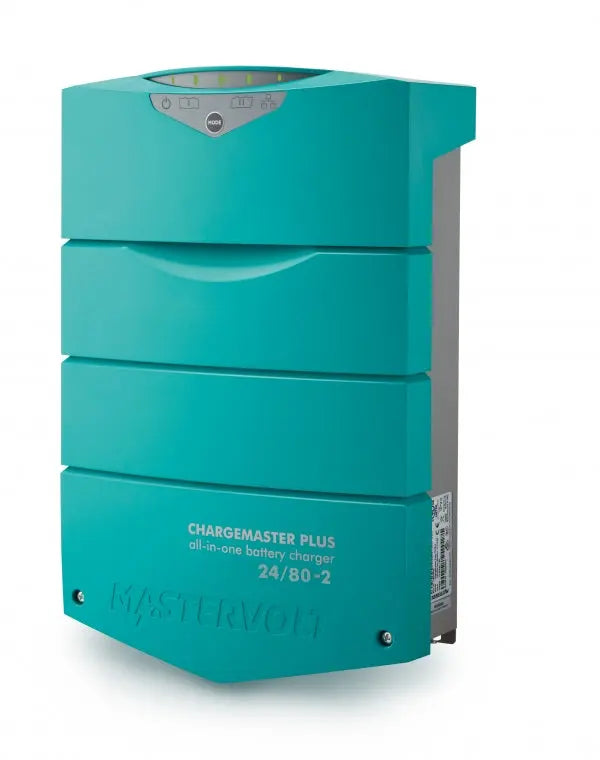

Mastervolt ChargeMaster Plus 24/80-2 Battery Charger with CZone and NMEA Communication

Mastervolt ChargeMaster Plus 80A 24v Output 120/230V Inp

The Mastervolt ChargeMaster Plus 24/80-2 is a versatile and powerful battery charger designed for marine and mobile applications. Featuring two outputs and the ability to handle multiple battery chemistries such as Lithium Ion, Gel, and AGM, this unit simplifies system integration by replacing auxiliary chargers, battery isolators, and VSRs. Its compact design and straightforward installation process make it suitable for a wide range of vessels and mobile setups. The charger supports charging up to three batteries simultaneously with a fast and safe 3-step+ charge method, ensuring optimal battery health and longevity. It boasts a wide operating voltage range of 80-275 V AC and can deliver up to 80 A of charge current, making it capable of servicing large battery banks efficiently. The ChargeMaster Plus also features advanced communication options, including MasterBus, CZone, and NMEA interfaces, allowing seamless integration with onboard monitoring systems, displays, and power management equipment. Its robust construction withstands harsh environments, with protections against over-temperature, overload, short circuits, and voltage fluctuations. Designed to meet multiple industry standards such as CE, ABYC, UL, SAE, and CEC, the charger offers a reliable power solution for demanding marine and mobile applications. The device's LED display provides clear indication of charge phases, and an integrated VSR ensures proper energy flow from the alternator to the batteries. Whether operating as a power supply or during construction phases, the ChargeMaster Plus supports communication standards like FireCan and CANopen, facilitating advanced system configurations and diagnostics. Its intelligent design, comprehensive feature set, and international compliance make the Mastervolt ChargeMaster Plus 24/80-2 an essential component for modern, sophisticated battery management systems.

Features:

• MasterBus, CZone, and NMEA communication interfaces enable seamless integration with onboard monitoring and control systems.

• Multicharger with two outputs, one in/output, DC-DC converter, current limiter, and VSR for versatile power management.

• Compatible with Lithium Ion, Gel, AGM, and other battery chemistries, supporting large and small battery banks on a single charger.

• Charges multiple batteries simultaneously while underway, ensuring reliable power availability.

• Provides 20% more output at 14.4 V and maintains 80% charging power at 60°C for efficient operation in various conditions.

• Fast and safe 3-step+ charge method extends battery life and optimizes performance across different chemistries.

• Handles a wide AC voltage range of 80-275 V and frequencies from 35-70 Hz, suitable for global use.

• Built-in protections against over-temperature, overload, short circuits, and voltage fluctuations for safe operation.

• LED display indicates the current charging phase clearly, facilitating easy monitoring.

• Integrated VSR eliminates the need for additional components, efficiently managing energy flow between the alternator and batteries.
