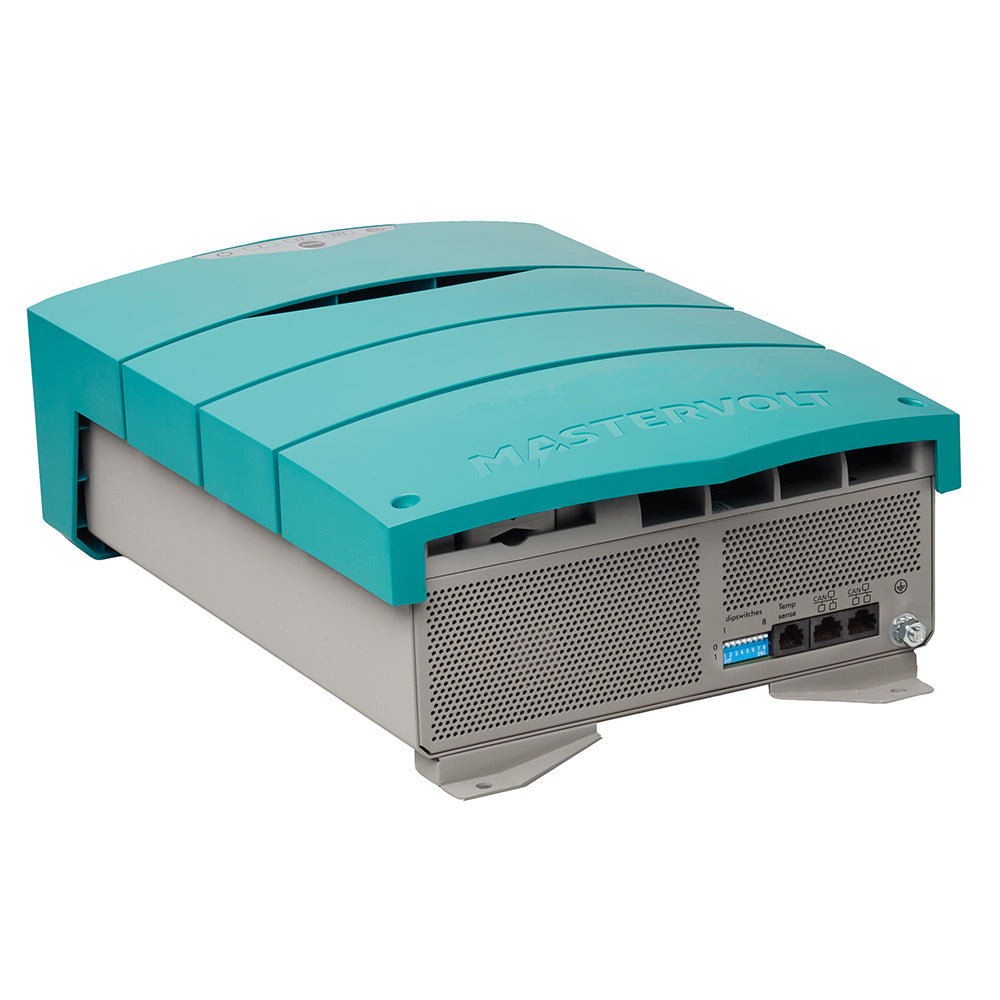

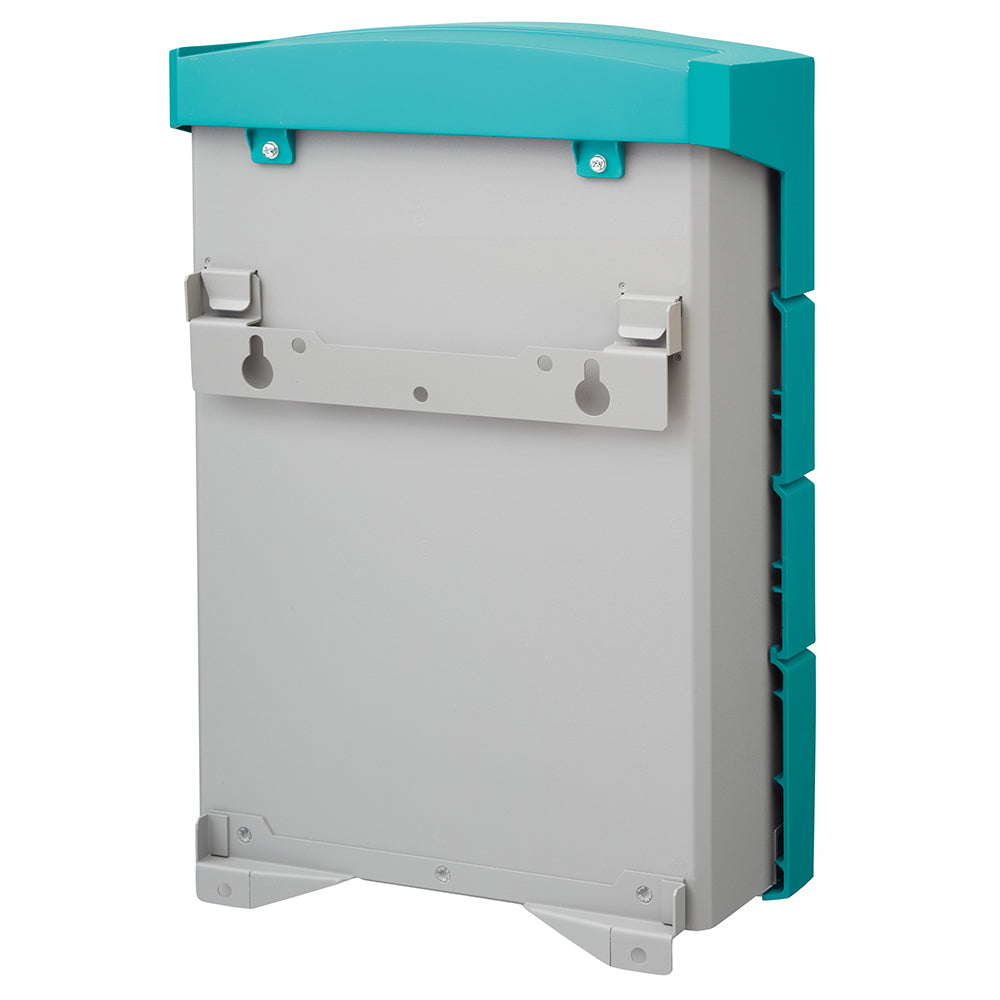

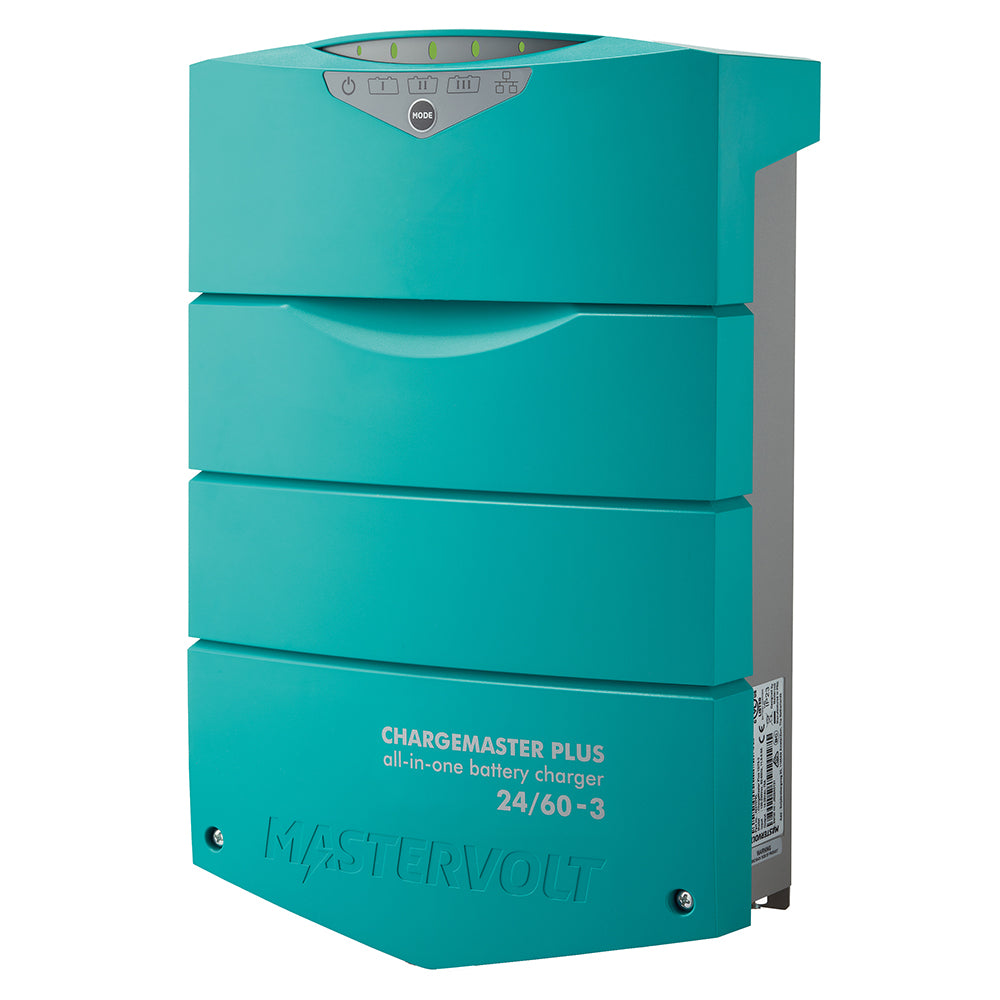

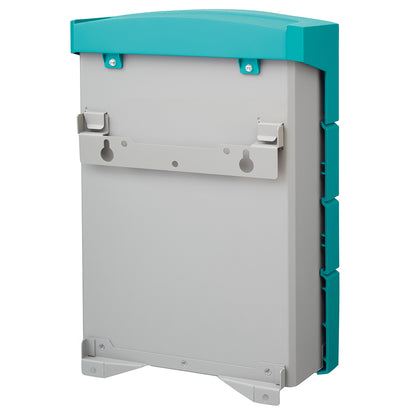

Mastervolt ChargeMaster Plus 24V, 60A 3-Bank Battery Charger with NMEA2000 and CZone Integration

ChargeMaster Plus 24V, 60A, 3-Bank, NMEA2000 - CZone

ChargeMaster Plus 24/60-3 CZone

All-in-one solution for faster and safer charging

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of two or three batteries in a fast and safe way and works anywhere in the world.

With the new Batterys Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

• Revival mode: automatically revives even fully depleted batteries.
• Multi voltage: charge 12 V starter battery in a 24 V system, without additional components.
• Priority Charge: redirect available power to the lowest battery, for faster charging.
• Smart Input: charge all three batteries from one single alternator for continuous charging on the go.

Global Charging

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC/DOE and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

Powerful Communications thanks to CZone integration

In modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts and power systems including communication standards like CZone, NMEA 2000 and CANopen (through additional interfaces).

Models with the addition CZone do not only support MasterBus, but also support CZone and NMEA 2000 communication, without the need of additional interfaces. This ChargeMasters Plus series can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.

This wide range of communication interfaces makes the ChargeMaster Plus ideally suited for system integration. In addition, the ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features:

• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
• Charges multiple batteries while being underway.
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 C.
• Safe Charge: quickly recognize the State of Charge for extended battery life.
• Very wide operating range of 80-275 V AC, 35-70 Hz.
• Compact, easy to connect and quick to install

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Mastervolt ChargeMaster Plus 24V, 60A 3-Bank Battery Charger with NMEA2000 and CZone integration is an advanced all-in-one solution designed for safe, fast, and reliable battery charging in marine and mobile applications. This versatile charger replaces multiple devices such as auxiliary chargers, battery isolators, and VSRs, simplifying your electrical system while reducing costs. Its intelligent design supports virtually any battery chemistry and configuration, making it suitable for a wide range of setups on boats, RVs, and other mobile platforms. The ChargeMaster Plus employs a proven 3-step+ charging method that ensures optimal battery health and extended lifespan while automatically reviving fully depleted batteries with its revival mode feature, which is especially useful in demanding conditions.

This model features multi-voltage compatibility, allowing it to safely charge 12V starter batteries within a 24V system without additional components. Its intelligent power distribution system, Priority Charge, prioritizes charging the lowest charged battery first, enabling faster overall charging times. The Smart Input functionality allows the charger to draw power from a single alternator to maintain continuous charging during operation. Designed to handle worldwide AC voltages and frequencies, it performs reliably in harsh environments characterized by voltage fluctuations and high temperatures. The robust construction complies with international safety and quality standards including CE, ABYC, UL, SAE, CEC/DOE, and RCM/C-Tick, ensuring safe and durable operation.

The ChargeMaster Plus is engineered for system simplicity and ease of use. It features an intuitive display that clearly indicates the charge phase of each output, and its ergonomic, corrosion-resistant connections facilitate quick installation. An integrated VSR (Voltage Sensitive Relay) eliminates the need for additional components, ensuring the efficient transfer of energy from the alternator directly to the batteries. Its extensive communication capabilities include MasterBus, CZone, NMEA 2000, and CANopen, enabling seamless integration with modern boat and vehicle electrical systems. These features make it suitable not only as a charger but also as a power supply for delicate communication equipment during construction or maintenance phases. The compact design and comprehensive features of the Mastervolt ChargeMaster Plus 24V, 60A make it an ideal choice for professional and recreational applications demanding reliability, advanced communication, and system integration.

Features:

• Multicharger with two outputs, one in/output, DC-DC converter, current limiter, and VSR

• Supports Lithium Ion, Gel, AGM batteries, and large or small battery banks on a single charger

• Charges multiple batteries simultaneously while underway

• Provides 20% more output at 14.4V and 80% charging power at 60°C

• Recognizes battery state of charge for safe, extended battery life

• Operates over a wide AC voltage range of 80-275V and frequency of 35-70Hz

• Compact design for easy installation and connection

• Supports NMEA2000, CZone, and MasterBus communication protocols for system integration

• Designed for harsh environments with high temperature and voltage fluctuation resistance

• Includes an integrated VSR for efficient energy transfer from alternator to batteries
