Mastervolt ChargeMaster Plus 30A 24v Output 120/230V Input C-Zone MasterBus NMEA

Mastervolt ChargeMaster Plus: Advanced 30A 24V Charger with Multiple Input Support

Mastervolt ChargeMaster Plus 30A 24v Output 120/230V Input C-Zone MasterBus NMEA

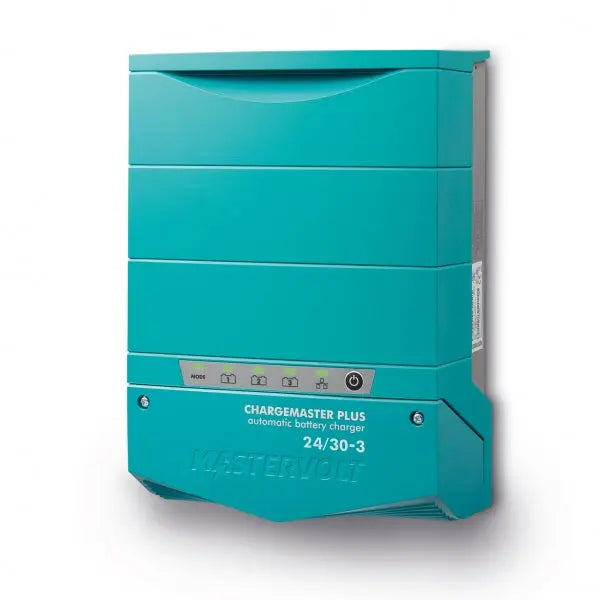

Mastervolt Chargemaster Plus 24/30-3 Battery Charger

Model: 44320305

• Improved cooling technology results in very low noise levels across the entire power range.
• Use as a standalone charger or as part of a complete system.
• Automatic power distribution, maximum charging current possible on each output.
• All 3 outputs can provide maximum current*
• Pre-float eliminates the risk of overcharging.
• Automatic current distribution - charging current distribution based on the condition of the battery.
• Compatible with worldwide frequencies and mains voltages.
• Smaller and lighter than the previous model.

The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.

The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.

The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.

The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger

The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.

The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

Specifications

Nominal output voltage (output 1 & 2)24 V

Max. output current primary output
30 A

Total charge current
30 A at 28,5 V

Max. AC current (230 V / 120 V)
4.2 A / 8.6 A

Number of battery outlets
3 (max.)

Battery bank size
120-240 Ah

Nominal input voltage
120/230 V (80-275 V) 50/60 Hz

Power supply mode
Yes

Galvanic isolation
Yes

Display/read-out
LED display

Dimensions, hxwxd
11.5 x 8.3 x 4.1 inch

Weight
5.5 lb

Compliance
CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA

Communication interfaces
MasterBus, CZone, NMEA2000

Technical specifications

Charge characteristic
IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option

Temperature compensation
-30 mV/ degC / -17 mV/ degF; temperature sensor included

DC voltage compensation
Yes, via automatic compensation or MasterShunt

Power consumption (DC side)
yes, through MasterBus or Czone

Current Control function
yes, through MasterBus

Power factor control
> 0.98

Temperature range (ambient temp.)
-25 degC to 80 degC, derating < 0 degC and > 40 degC

Cooling
vario fan

Protection degree
IP23, vertical mounting

Protections
over-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltage, ignition protection

MasterBus compatible
yes

Charger Status Interface (alarm contact)
yes, using a Multipurpose Contact Output (code 77030500)

What's in the Box:

• Chargemaster Plus 24/30-3
• Temp Sensor
• Wall Bracket
• Drop cable CZone/MB (1m)
• MasterBus Terminator
• User and installation manual.

Versatile Input and Robust Output Performance

The Mastervolt ChargeMaster Plus delivers a reliable 30A output at 24 volts, ideal for marine and mobile power applications. Designed to accept both 120V and 230V inputs, this charger ensures compatibility with various power sources worldwide. Its adaptable input range enables seamless operation in different environments, while providing consistent, efficient charging. This versatility combined with high output power makes the Mastervolt ChargeMaster Plus a dependable choice for maintaining battery health and power availability.

Integrated Communication with C-Zone, MasterBus, and NMEA Systems

This charger includes built-in C-Zone compatibility, allowing users to monitor and control charging parameters easily through a centralized digital control system. Furthermore, the integration with MasterBus and NMEA protocols ensures smooth communication and data sharing with other onboard electronics. This feature enhances system diagnostics and operational management, providing a comprehensive solution for complex marine electrical installations.

Durability and User-Friendly Design for Marine Use

Engineered for rugged marine environments, the Mastervolt ChargeMaster Plus boasts a compact and robust design resistant to vibrations and moisture. Its advanced circuitry incorporates smart charging stages tailored to optimize battery lifespan and performance. Additionally, simple installation and intuitive configuration options help users achieve optimal charging settings without hassle. This combination of tough build quality and user convenience solidifies its reputation as a superior marine battery charger.
