Mastervolt ChargeMaster Plus 35A 12v Output 120/230V Input C-Zone MasterBus NMEA

Mastervolt ChargeMaster Plus: Efficient 35A 12V Battery Charging Solution

Mastervolt ChargeMaster Plus 35A 12v Output 120/230V Input C-Zone MasterBus NMEA

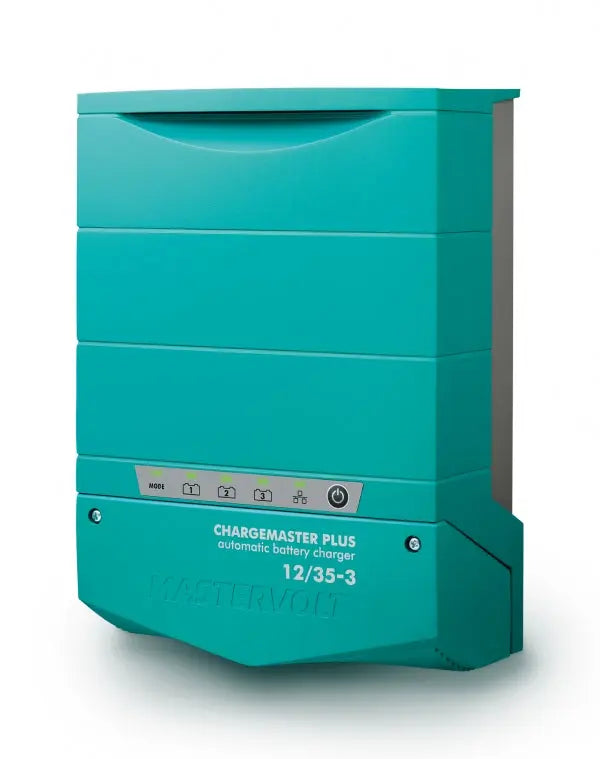

Mastervolt Chargemaster Plus 12/35-3 Battery Charger

Model: 44310355

• Improved cooling technology results in very low noise levels across the entire power range.
• Use as a standalone charger or as part of a complete system.
• Automatic power distribution, maximum charging current possible on each output.
• All 3 outputs can provide maximum current*
• Pre-float eliminates the risk of overcharging.
• Automatic current distribution - charging current distribution based on the condition of the battery.
• Compatible with worldwide frequencies and mains voltages.
• Smaller and lighter than the previous model.

The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.

The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.

The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.

The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger

The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.

The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

Specifications

Nominal output voltage (output 1 & 2)12 V

Max. output current primary output
35 A

Total charge current
35 A at 14,25 V

Max. AC current (230 V / 120 V)
2.5 A / 5.0 A

Number of battery outlets
3 (max.)

Battery bank size
140-350 Ah

Nominal input voltage
120/230 V (80-275 V) 50/60 Hz

Power supply mode
Yes

Galvanic isolation
Yes

Display/read-out
LED display

Dimensions, hxwxd
11.5 x 8.3 x 4.1 inch

Weight
5.5 lb

Compliance
CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA

Communication interfaces
MasterBus, CZone, NMEA2000

Technical specifications

Charge characteristic
IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option

Temperature compensation
-30 mV/ degC / -17 mV/ degF; temperature sensor included

DC voltage compensation
Yes, via automatic compensation or MasterShunt

Power consumption (DC side)
yes, through MasterBus or Czone

Current Control function
yes, through MasterBus

Power factor control
> 0.98

Temperature range (ambient temp.)
-25 degC to 80 degC, derating < 0 degC and > 40 degC

Cooling
vario fan

Protection degree
IP23, vertical mounting

Protections
over-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltage, ignition protection

MasterBus compatible
yes

Charger Status Interface (alarm contact)
yes, using a Multipurpose Contact Output (code 77030500)

What's in the Box:

• Chargemaster Plus 12/35-3
• Temp Sensor
• Wall Bracket
• Drop cable CZone/MB (1m)
• MasterBus Terminator
• User and installation manual.

Innovative Charging Technology with Mastervolt ChargeMaster Plus

The Mastervolt ChargeMaster Plus delivers an efficient 35A output at 12 volts, providing a reliable charging solution for a variety of marine and mobile power applications. Designed for 120/230V AC input, this advanced charger optimizes battery performance and lifespan through smart multi-stage charging. Its compatibility with C-Zone MasterBus and NMEA systems ensures seamless integration with sophisticated marine electronics, allowing users to monitor and manage charging processes effortlessly. Whether used aboard boats or in mobile energy setups, the ChargeMaster Plus stands out for delivering consistent, safe, and efficient power.

Advanced Connectivity with C-Zone MasterBus and NMEA Protocol

The Mastervolt ChargeMaster Plus supports C-Zone MasterBus and NMEA 2000 compatibility, enabling easy integration with modern marine network systems. This feature allows real-time monitoring and control via compatible displays, enhancing user convenience and operational safety. By communicating effortlessly with other onboard electronics, the ChargeMaster Plus ensures smart energy management and prevents overcharging or battery damage. This connectivity is particularly valuable for marine professionals who require reliable, networked solutions for power management in demanding environments, combining ease of use with advanced technology.

Durability and Safety Features for Marine Environments

Engineered specifically for challenging marine conditions, the Mastervolt ChargeMaster Plus features a robust design that withstands vibrations, temperature fluctuations, and humidity. The built-in protective functions include overvoltage, overheating, and short circuit protection, ensuring both the charger and batteries remain safe under various circumstances. Compact and lightweight, this charger simplifies installation even in tight spaces. Its high-quality components and marine-grade construction make it an ideal choice for vessels requiring dependable and long-lasting power solutions, giving users peace of mind during voyages.
