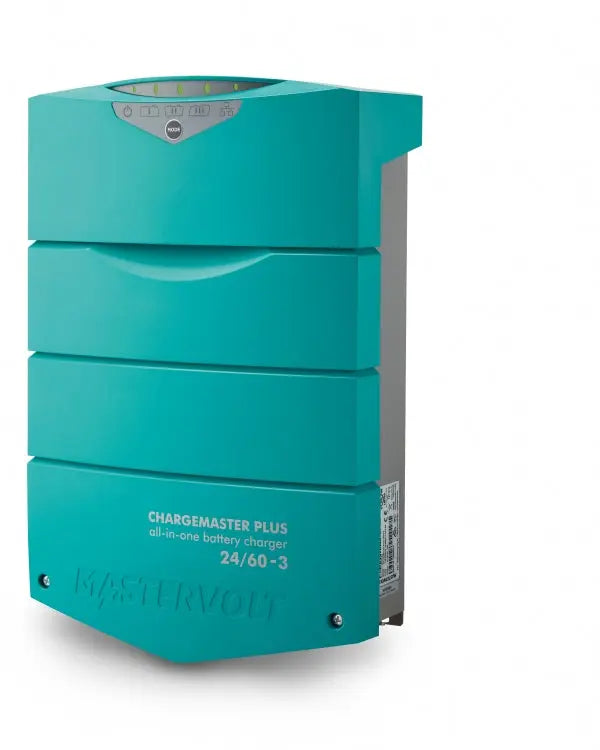

Mastervolt ChargeMaster Plus 60A 24v Output 120/230V Input

Mastervolt ChargeMaster Plus 60A: High-Performance 24V Battery Charger

Mastervolt ChargeMaster Plus 60A 24v Output 120/230V Input

Mastervolt ChargeMaster Plus 24/60-3 Czone

Model: 44320605

• MasterBus, CZone and NMEA communication.
• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
• Charges multiple batteries while being underway.
• Offers 20 % more output at 14.4 V and 80 % charging power at 60 degC.
• Safe Charge: quickly recognize the State of Charge for extended battery life.
• Very wide operating range of 80-275 V AC, 35-70 Hz.
• Compact, easy to connect and quick to install.

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

With the Battery's Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Specifications

Communication interfacesMasterBus, CZone, NMEA

General specifications

Nominal output voltage
24v

Max. charge current per output
60A

Smart In-/Output output voltage
12 or 24 V

Smart In-/Output output current
5-10 A at 12 V; 5-20 A at 24 V (adjustable)

Smart In-/Output input current
max. 20 A at 24 V

Max. AC current (230 V / 120 V)
10.2 A / 20.4 A

Total charge current
60 A at 28.8 V

Number of battery outlets
3 (max.)

Battery capacity range
200-500 Ah

Nominal input voltage
120/230 V (80-275 V) 50/60 Hz

AC connection
screw terminals, suitable up to up to 6 mm2

Power supply mode
yes

Display/read-out
LED display

Dimensions, hxwxd
15.1 x 9.8 x 5.0 inch

Weight
13.0 lb

Approvals
CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC, RCM/C-Tick

Technical specifications

Charge characteristic
IUoUo, automatic / 3-traps+ voor Gel/AGM/nat/Lithium Ion + een door de gebruiker gedefinieerde optie

Temperature compensation
-60 mV/ degC / -76 mV/ degF; temperature sensor included

DC voltage compensation
through MasterShunt

Power consumption (DC side)
< 2 mA (MasterBus off)

Current Control function
yes, through MasterBus

Power factor control
> 0.98

Temperature range (ambient temp.)
-13 degF to 176 degF

Cooling
vario fan

Protection degree
IP23, vertical mounting

Protections
over-temperature, overload, short circuit, high/low battery voltage, ignition protection

Charger Status Interface (alarm contact)
yes, using a Multipurpose Contact Output (code 77030500)

What's in the Box:

• ChargeMaster Plus 24/60-3
• Mounting bracket
• Battery temperature sensor
• Drop cable CZone/MB (1m)
• MasterBus Terminator
• User manual

Advanced Charging Technology for Optimal Performance

The Mastervolt ChargeMaster Plus 60A offers advanced charging technology designed to deliver a consistent 24V output with up to 60 amps of charging current. It supports both 120V and 230V AC input, making it highly versatile and suitable for a wide range of applications, from marine vessels to industrial systems. This charger enhances battery life by using multi-stage charging, ensuring batteries are charged efficiently and safely. Its compact design and robust build make it a trusted choice for professionals looking for reliability and performance in battery management.

Versatile Input Compatibility for Global Use

One of the key features of the Mastervolt ChargeMaster Plus 60A is its dual voltage input capability, accepting both 120V and 230V AC power sources. This makes it ideal for users around the world who require flexible charging solutions without needing multiple devices. Whether you're docked at a marina or operating at a remote work site, the charger seamlessly adapts to the available power source, providing consistent output for 24V battery systems. Its capability significantly reduces downtime and improves operational efficiency.

Durability and Safety Features for Long-Term Use

The Mastervolt ChargeMaster Plus 60A is engineered with durability and safety in mind. It includes built-in protections such as short circuit, overload, and temperature control to prevent damage to both the charger and the connected batteries. The rugged construction withstands demanding environments, making it particularly suitable for marine and industrial applications. Additionally, the charger’s intelligent charging algorithm minimizes the risk of overcharging, ensuring batteries maintain optimal health and longevity, giving users peace of mind during extended use.
