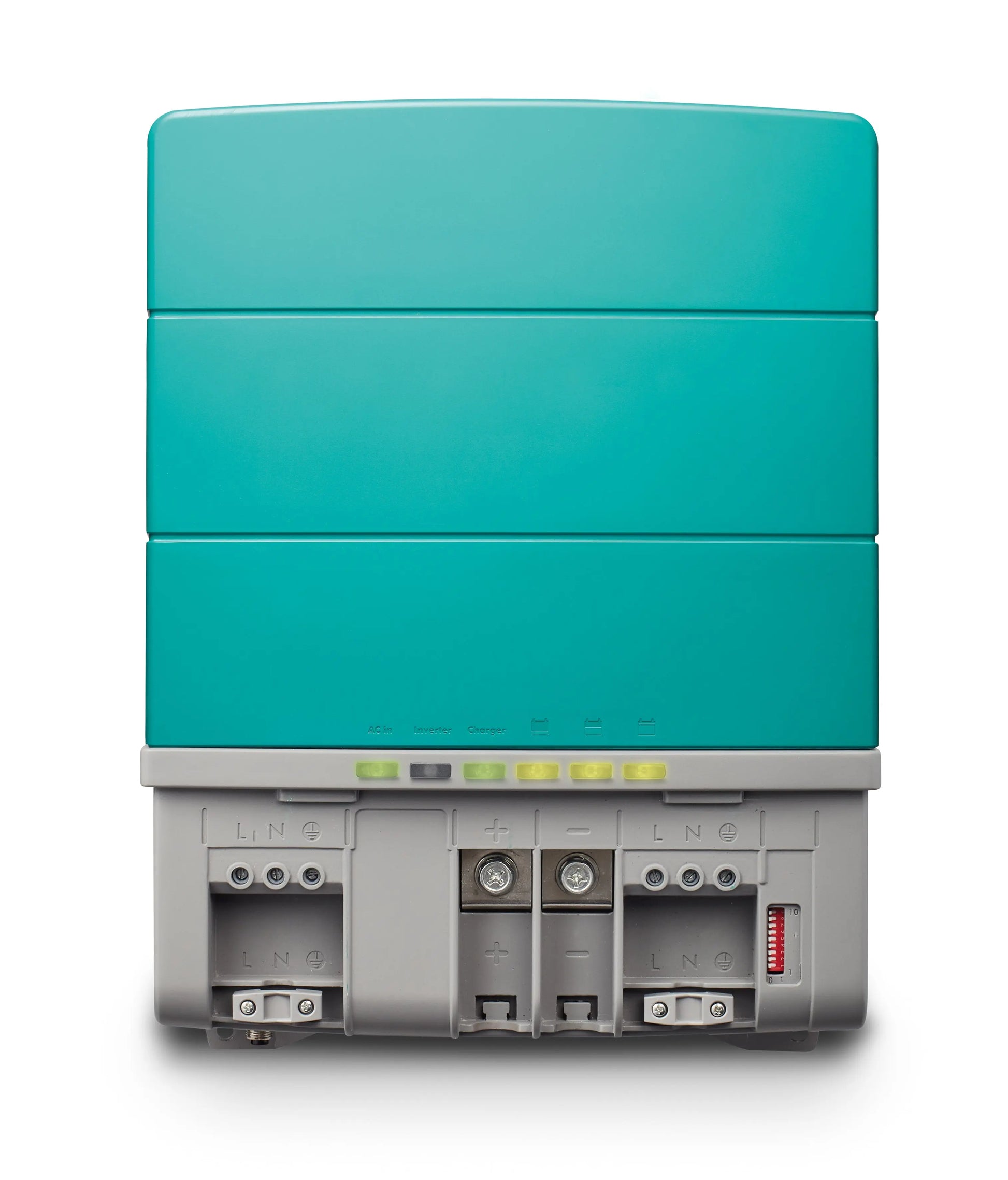

Mastervolt CombiMaster 12/1500 Inverter/Charger 12v Input 120v 1500Watt Output

Mastervolt CombiMaster 12/1500: Reliable Power Inversion and Charging Solution

Mastervolt CombiMaster 12/1500 Inverter/Charger 12v Input 120v 1500Watt Output

Mastervol CombiMaster 12/1500-60 (120 V)

Model: 35511500

• Most compact and lightweight Combi in its class.
• Reliable, hum-free and longer operation from your batteries.
• Starts even the heaviest and most sensitive loads.
• Intelligent 3-step+ battery charger for faster and safer charging.
• Automatic switching between mains and inverter mode.
• Power Assist prevents blown mains fuses.
• Generator compatible.
• Integrated CZone, MasterBus and NMEA 2000 communication.
• Quick installation with heavy duty connections.
• E-mark certified.

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don't let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you're connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Specifications

Nominal DC voltage12 V (10.2-16 V)

Output voltage
120 V

Output frequency
60/50 Hz (configurable)

Output waveform
true sine

Continuous power at 40 degC / 104 degF, cos phi 1
1500 W

Peak power (30 sec)
2250 W

Surge power (5 sec)
3000 W

Max. efficiency
93 %

Battery no-load power consumption
30 W (on mode) / < 1 mA (off mode)

Energy saving mode consumption
10 W

Synchronise with mains
yes

Specifications battery charger

Input voltage range
90-140 V

Max. input current
9 A (adjustable)

Max. charge current at 40 degC / 104 degF
60 A at 14.25 V (configurable)

Battery temperature sensor
yes, included

Battery voltage sense
automatic compensation

Specifications transfer system

AC input
30 A (switched)

AC output
40 A

AC input fuse
yes

Transfer speed
10 ms

Transfer voltage range
wide: 70-140 V / narrow: 90-140V

Transfer frequency range
40-65 Hz

General specifications

Galvanic isolation
yes

Display/read-out
LED display

Dimensions, hxwxd
14.6 x 11.2 x 6.1 inch

Weight
15.2 lb

Compliance
ABYC A31, UL1236, UL1741, SAEJ1171, FCC class B

Technical specifications

Charge characteristic
UoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable

Recommended battery capacity
120-600 Ah (based on gel batteries, may differ for other types)

Ground relay
yes, configurable by means of mechanical jumper

Temperature range (ambient temp.)
-13 degF to 140 degF

Cooling
vario fan

Protection degree
IP23 (vertical mounting)

Safety class
IEC protection class I

Humidity protection
conformal coating, max. 95 % relative humidity, non condensing

Protections
over-temperature, overload, short circuit, high/low battery voltage

Power Assist
yes, supports AC input with power from the battery

Power Sharing
yes, allows you to select AC Input fuse setting

MasterBus compatible
yes

CZone / NMEA 2000 compatible
yes

What's in the Box:

• CombiMaster Inverter/Charger
• Temperature sensor
• MasterBus terminator
• Drop cable Czone/MB (1m)
• Mounting bracket
• User and installation manual

Advanced Inverter and Charger Integration

The Mastervolt CombiMaster 12/1500 is a premium inverter/charger designed to offer seamless energy conversion from 12V DC input to 120V AC output. Delivering a robust 1500W continuous power output, this unit ensures stable electricity supply for a variety of applications including marine, recreational vehicles, and off-grid power systems. The device combines inverter and battery charger functionalities, allowing it to both power devices and recharge batteries efficiently with a single compact unit. Mastervolt's reliable engineering guarantees optimal performance and energy management in demanding environments.

Efficient Power Management and Safety Features

Mastervolt prioritizes safety and efficiency in the CombiMaster 12/1500. This inverter/charger incorporates smart charging algorithms that extend battery life by preventing overcharging and overheating. It features advanced protection mechanisms against short circuits, overload, and high temperature, safeguarding connected devices and the system itself. Additionally, the CombiMaster operates quietly with high efficiency, reducing energy wastage and minimizing noise. Its user-friendly design and built-in diagnostics enable easy installation and monitoring, making it an ideal choice for professionals and hobbyists alike.

Versatile Applications and User Convenience

The Mastervolt CombiMaster 12/1500 offers versatile functionality suited for a wide range of applications. It is perfect for marine vessels, camper vans, and off-grid solar energy setups where reliable power conversion and battery charging are critical. The unit supports multiple battery types and has programmable settings to adapt to different energy systems. Its compact size and robust construction make it easy to install in tight spaces without sacrificing durability. With Mastervolt’s global support network, users can trust in consistent assistance and product reliability wherever their adventures take them.
