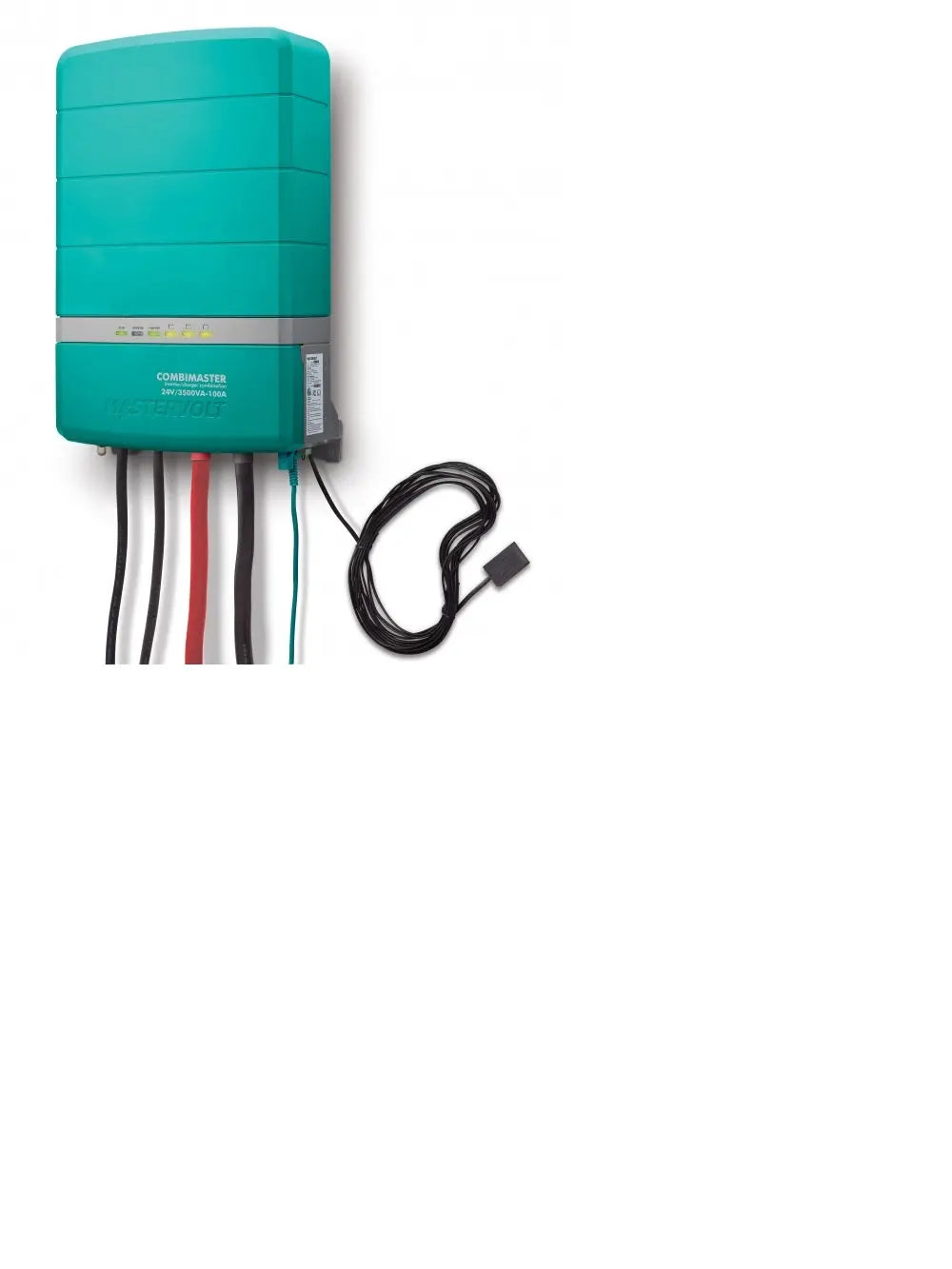

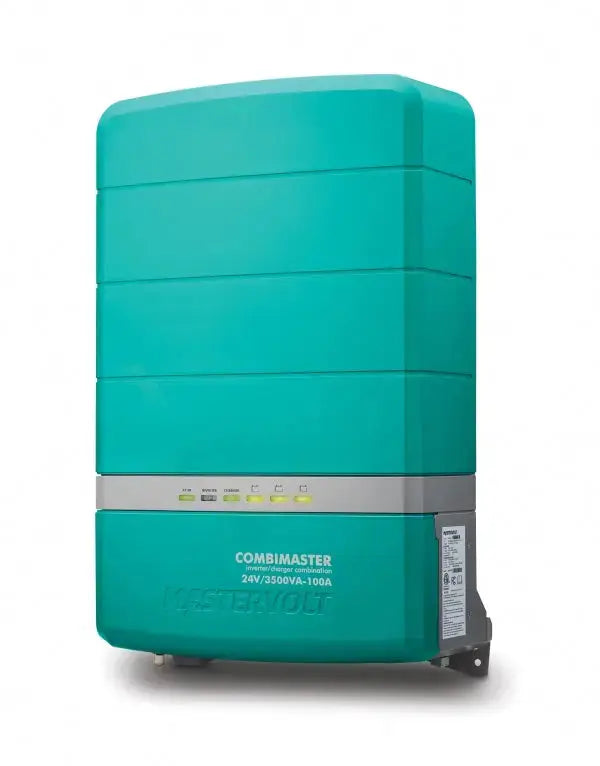

Mastervolt CombiMaster 24/3500 Inverter/Charger 24v Input 120v 3500Watt Output

Mastervolt CombiMaster 24/3500 Inverter/Charger 24v Input 120v 3500Watt Output

Masrtervolt CombiMaster 24/3500-100 (120 V) Combi Inverter Charger

Model: 35523500

• Most compact and lightweight Combi in its class.


• Reliable, hum-free and longer operation from your batteries.


• Starts even the heaviest and most sensitive loads.


• Intelligent 3-step+ battery charger for faster and safer charging.


• Automatic switching between mains and inverter mode.


• Power Assist prevents blown mains fuses.


• Generator compatible.


• Integrated CZone, MasterBus and NMEA 2000 communication.

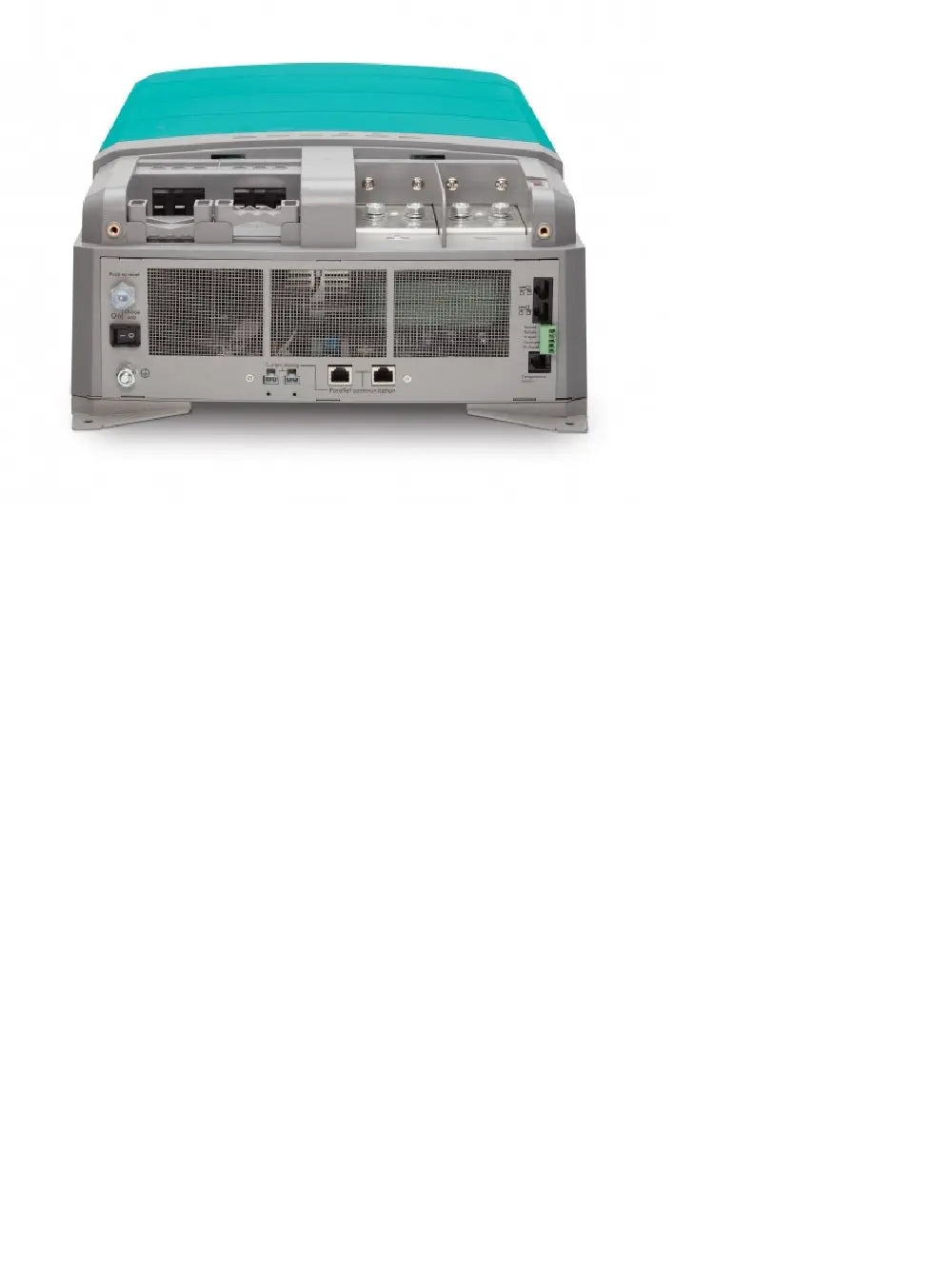

• Quick installation with heavy duty connections.

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

The CombiMaster 3500/4500/5000 functionality goes beyond stand-alone operation, the design also allows parallel and split phase configurations for larger applications up to 35 kW.

Specifications

Specifications sine wave inverter

Nominal DC voltage
24 V (20,4—32 V )

Output voltage
120 V

Output frequency
60/50 Hz (configurable)

Output waveform
true sine

Continuous power at 40 °C / 104 °F, cos phi 1
3500 W

Peak power (30 sec)
5250 W

Surge power (5 sec)
7000 W

Max. efficiency
93 %

Battery no-load power consumption
47 W (on mode) / < 1 mA (off mode)

Energy saving mode consumption
25 W

Synchronise with mains
yes

Specifications battery charger

Input voltage range
90—140 V

Max. input current
32 A (adjustable)

Max. charge current at 40 °C / 104 °F
100 A at 28.5 V (configurable)

Battery temperature sensor
yes, included

Battery voltage sense
automatic compensation

Specifications transfer system

AC input
50 A (switched) max

AC output
85 max A

AC input fuse
Yes

Transfer voltage range
90—140V

Transfer frequency range
Transfer frequency range

General specifications

Galvanic isolation
Yes

Display/read-out
LED display

Dimensions, hxwxd
22.4 x 14.1 x 6.7 inch

Weight
37.5 lb

Compliance
ABYC A31, UL1236, UL1741, SAEJ1171

Technical specifications

Charge characteristic
UoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable

Recommended battery capacity
200-1000 Ah (based on gel batteries, may differ for other types)

Temperature range (ambient temp.)
-25°C to 60°C, derating above 40°C, shutdown above 60°C °C -13 °F to 32 °F

Cooling
vario fan

Protection degree
IP23 (vertical mounting)

Humidity protection
conformal coating, max. 95 % relative humidity, non condensing

Protections
over-temperature, overload, short circuit, high/low battery voltage

Power Assist
yes, supports AC input with power from the battery

Power Sharing
yes, allows you to select AC Input fuse setting

MasterBus compatible
Yes

CZone / NMEA 2000 compatible
Yes

What's in the Box:

• CombiMaster 24/3500-100 (120 V)


• Temperature sensor with cable and plug


• MasterBus terminator


• RJ45-M12 Drop cable CZone (1m)


• Mounting bracket


• User and installation manual
