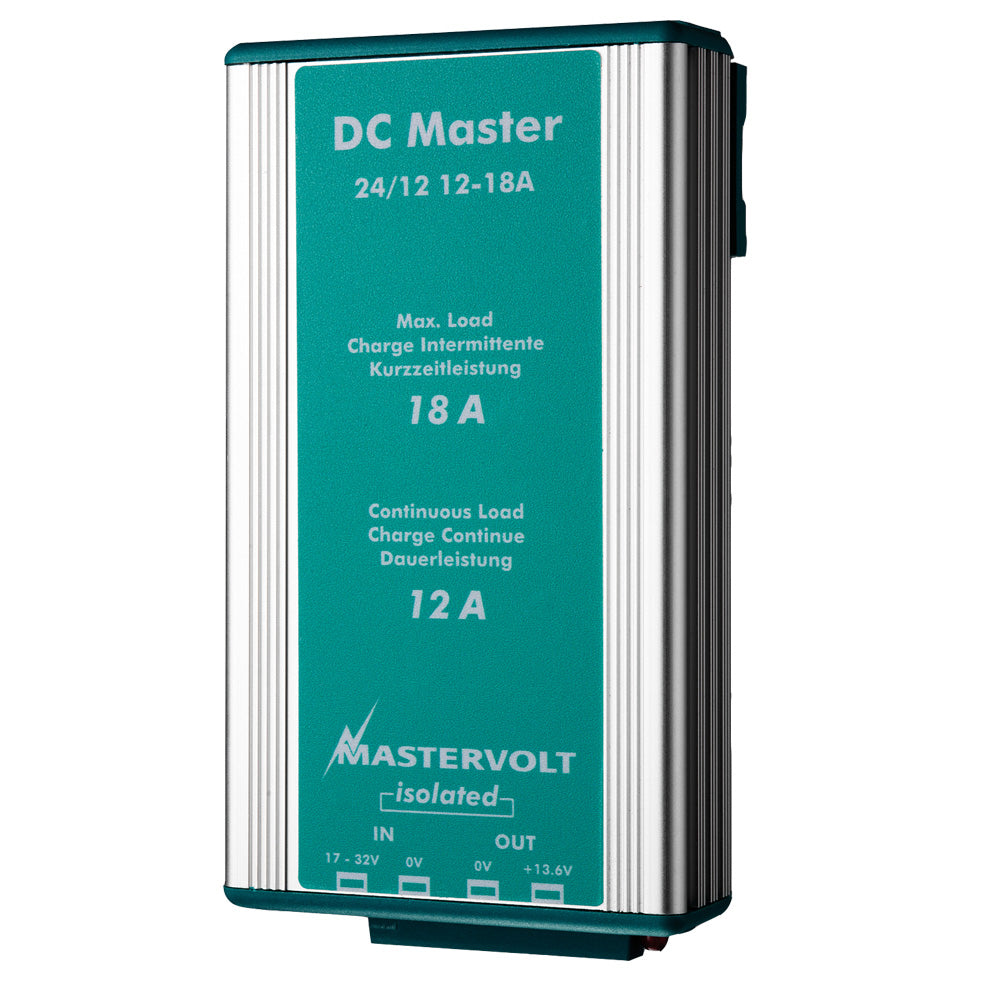

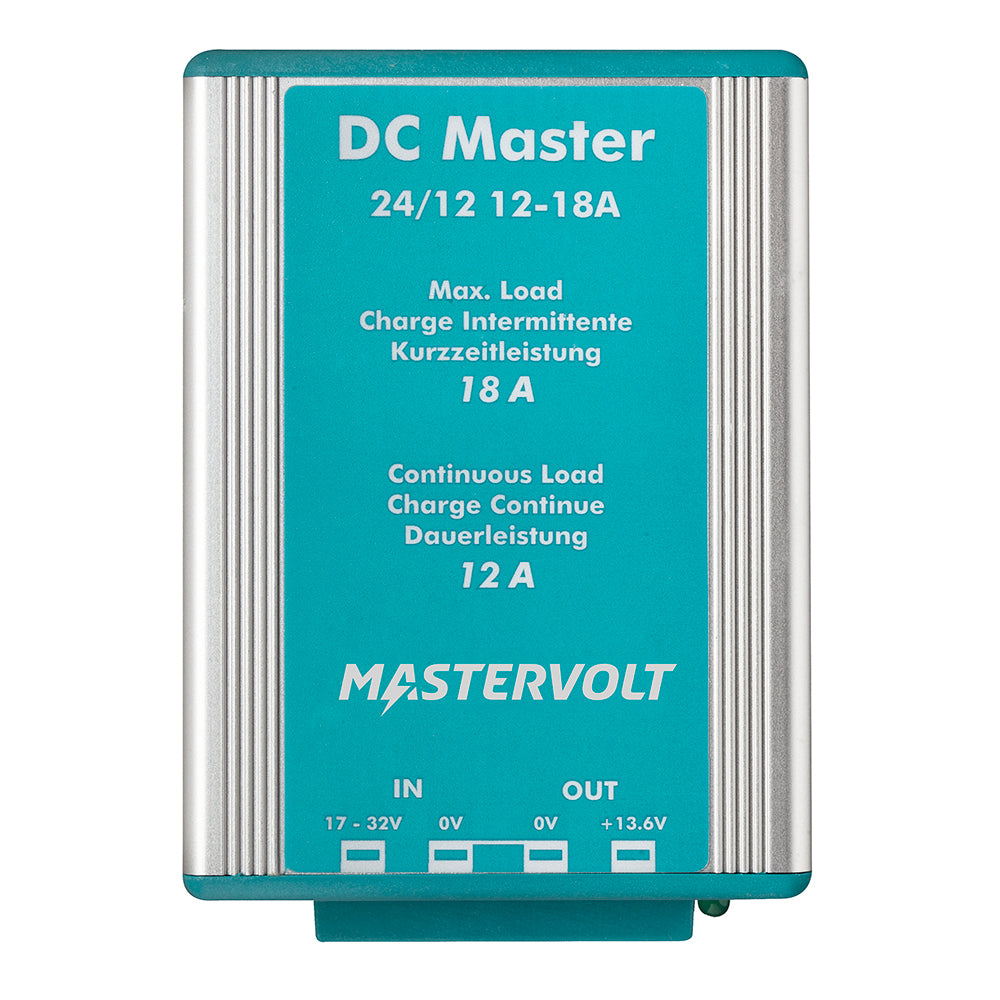

Mastervolt DC Master 24V to 12V Converter - 12 Amp for Reliable Power Conversion

DC Master 24V to 12V Converter - 12 Amp

Always on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.

DC Master DC-DC converters

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.

Features:

• Recreational and semi-professional use
• Easy to install using included mounting bracket, screws and fasteners
• Smart electronics mean no unnecessary heat generation
• Continuous output
• Two minutes of extra power for short power boosts
• Excellent price/performance ratio

General Specifications

• Nominal output voltage: 13.6 V
• Max. output power: 245 W
• Nominal output power: 164 W
• Max. output current (for 2 min. intervals): 18 A
• Continuous output current: 12 A
• Nominal input voltage: 24 V
• Input voltage range (max.): 20-32 V DC (35 V)
• Galvanic isolation: no
• Stabilised: yes
• Dimensions, hxwxd: 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch
• Weight: 0.405 kg 0.9 lb
• Compliance: CE

Technical Specifications

• DC consumption: < 15 mA
• Connections: fast-on
• Temperature range (ambient temp.): -25 C to 80 C, derating > 30
• Cooling: natural cooling
• Protection degree: IP53

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Mastervolt DC Master 24V to 12V Converter (Part Number 81400300) provides a dependable solution for converting 24V DC input to a stable 13.6V output at up to 12 amps continuous current. Designed for recreational and semi-professional applications, this converter ensures your electrical system remains consistent and efficient, supporting various onboard and remote equipment requiring different voltage levels. Its compact design and included mounting hardware facilitate easy installation in diverse environments, whether on boats, RVs, or industrial setups. The converter features smart electronics that minimize heat generation, allowing for silent operation and increased durability. With two minutes of extra power capacity for short bursts, it is well-suited for devices with high startup currents, ensuring reliable operation during transient loads. This converter offers an excellent balance of performance and affordability, making it a practical choice for users seeking a robust power conversion solution. The device is stabilized, galvanic isolation is not provided, and it features natural cooling for efficient heat management. Its IP53 protection degree ensures resistance to dust and water splashes, suitable for various outdoor and indoor environments. The converter's low DC consumption, simple fast-on connections, and wide input voltage range (20-32V DC, with a maximum of 35V) support flexible integration into existing power systems. Compliance with CE standards guarantees quality and safety, while the included owner’s manual provides comprehensive guidance for installation and operation. Overall, the Mastervolt DC Master 24V to 12V Converter guarantees a reliable, efficient, and easy-to-install power solution tailored for demanding recreational and semi-professional applications.

Features:

• Recreational and semi-professional use for versatile applications

• Easy installation with included mounting bracket, screws, and fasteners

• Smart electronics minimize unnecessary heat, ensuring silent operation

• Continuous power output for reliable operation

• Two minutes of extra power for short bursts of higher current
