Mastervolt EasyView 5 System Monitor

Mastervolt EasyView 5 System Monitor: Reliable Power Management

Mastervolt EasyView 5 System Monitor

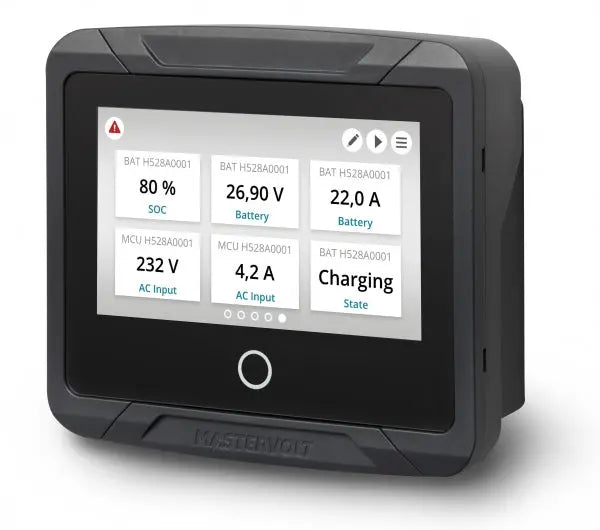

Mastervolt easyView 5 Waterproof System Monitor with 'daylight readable' display and intuitive touchscreen

Model: 77010310

• Water proof, 'daylight readable' colour display.
• Intuitive touch control.
• Customizable favourite pages.
• Log book for warnings and alarms.
• Buzzer and Home button.
• Easy mounting: front mount, wall mount or retrofit.
• MasterBus powered, or 12/24 V input.
• Easy updating through MasterBus and USB.

Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the colour touchscreen and multi-language menu, the display is a pleasure to operate. Easily customizable favourite pages show all relevant system information at a glance.

The EasyView 5 completes any MasterBus system. With its handy functionality and compact size, the EasyView is ideal for yachts, vehicles and stationary systems. Applicable in various markets such as marine, mobile (recreational and professional), infrastructure, offshore, off grid and industrial. The possibilities are endless!

Specifications

Power supplyMasterBus powered, or 12/24 V input (9 - 32 V)

Resolution
480 x 272 pixels

Colour depth
16 bits

Display/read-out
4.3 inch high contrast display with capacitive touch control

Mounting
panel mounting, flush mounting, MasterView Easy retrofit

Alarms
buzzer integrated

Dimensions, hxwxd
4.4 x 5.0 x 1.7 inch

MasterBus connection
Yes

Power consumption
< 160 mW (idle mode)

Connections
2x MasterBus, USB, 12/24 V

Temperature range (ambient temp.)
-4 degF to 158 degF

Protection degree
IP67; waterproof front

What's in the Box:

• EasyView 5
• MasterBus cable (6 meter / 20ft)
• MasterBus terminator
• 12/24 V connector
• Mounting screw (4 pcs) 4x30mm PH2
• Mounting screw (4 pcs) 4x14mm PH2

Comprehensive Monitoring with Mastervolt

The Mastervolt EasyView 5 System Monitor provides a clear and reliable way to monitor your entire power system. Designed to integrate seamlessly with Mastervolt components, it displays real-time data from batteries, inverters, and chargers. By offering precise insights into voltage, current, and temperature, users can ensure optimal system performance. Whether installed on boats, vehicles, or off-grid systems, this device simplifies power management and prevents unexpected power failures by keeping you informed at all times.

User-Friendly Interface and Display

The EasyView 5 features an intuitive, easy-to-read touchscreen interface that makes navigation simple for all users. The bright display uses color codes for quick identification of system status, alarms, and warnings, allowing immediate action if needed. With customizable screens and the ability to switch between different data views, users can focus on the most relevant information. This ease of use makes the Mastervolt EasyView 5 ideal for users who want detailed monitoring without complicated controls.

Advanced Integration and Connectivity

Mastervolt designed the EasyView 5 to seamlessly connect with a range of Mastervolt equipment and digital systems. It supports multiple communication protocols, enabling users to link devices like inverters, chargers, and battery monitors into one comprehensive overview. Remote monitoring options and firmware updates can be managed easily, enhancing functionality and user experience. This connectivity ensures that your power system operates efficiently and that you stay in control no matter where you are.
