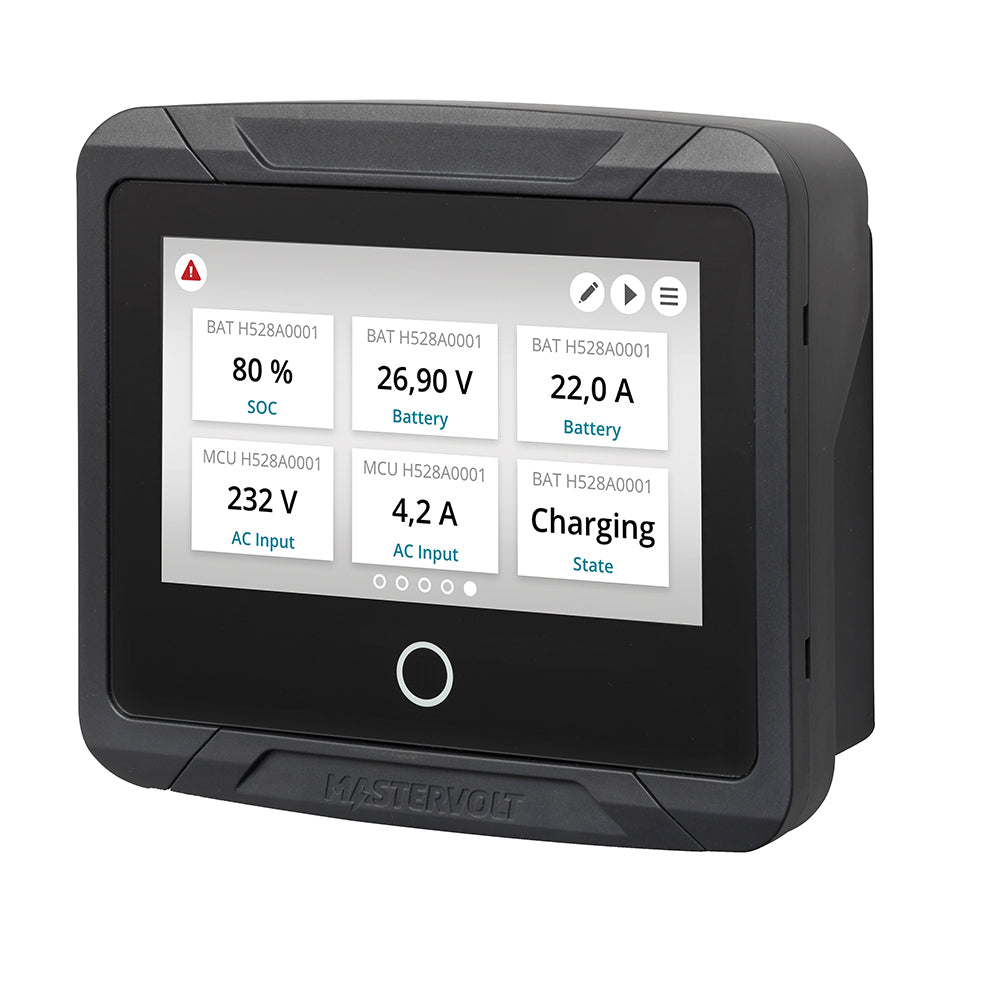

Mastervolt EasyView 5 Touch Screen Monitoring and Control Panel - Waterproof, Daylight Readable Display

EasyView 5

Waterproof system monitor with daylight display and intuitive touch control.

Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.

Features

• Water proof, daylight readable color display
• Intuitive touch control
• Customizable favorite pages
• Log book for warnings and alarms
• Buzzer and Home button
• Easy mounting: Front mount, wall mount or retrofit
• MasterBus powered or MasterBus powering by 12 V DC input
• Easy updating through integrated USB

Applications

The EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational professional), infra-structure, offshore, off-grid and industrial markets.

Specifications

• Display:4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits
• Languages:English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, Danish
• IP degree: IP65 waterproof front
• Power supply:MasterBus powered or MasterBus powering through 12/24 V input
• Power Consumption:< 160 mW (idle mode)
• Alarm:Buzzer integrated
• Connections:2 x MasterBus, USB, 12/24 V auto ranging input for optional external power
• Mounting:Front mount, wall mount and MasterView Easy retrofit
• Dimensions, HxWxD:113 x 127 x 43 mm

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Mastervolt EasyView 5 is a versatile and user-friendly system monitor designed to enhance control over your MasterBus system. Featuring a 4.5-inch high-contrast color display with capacitive touch control, this device offers clear readability even in bright daylight conditions. Its IP65 waterproof rating ensures durability and reliable operation in harsh environments, making it suitable for marine, mobile, off-grid, and industrial applications. The intuitive interface includes customizable favorite pages that display all relevant system information at a glance, facilitating quick and efficient system management.
Designed for easy installation, the EasyView 5 supports front mount, wall mount, and retrofit options. It is powered either through MasterBus or via a 12/24 V DC input, providing flexibility across various setups. The integrated USB port allows straightforward updates, ensuring your system stays current with minimal effort. The device also features a buzzer for alarms and warnings, a Home button for easy navigation, and a logbook for tracking warnings and alarms, contributing to proactive system maintenance.
Compatible with multiple languages including English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, and Danish, the EasyView 5 caters to a diverse user base. Its compact dimensions make it suitable for various installation environments without sacrificing functionality. The system’s low power consumption, at less than 160 mW in idle mode, ensures energy efficiency during operation. Whether installed on yachts, vehicles, or stationary systems, the EasyView 5 provides reliable, straightforward control and monitoring of your MasterBus network, enhancing safety and operational efficiency across multiple markets.

Features:

• Waterproof, daylight-readable color display with high contrast and capacitive touch control

• Intuitive touch interface with customizable favorite pages for quick access to system data

• Built-in logbook for warnings and alarms to facilitate maintenance

• Integrated buzzer and Home button for ease of operation and alert management

• Flexible mounting options including front mount, wall mount, and retrofit installation

• Power options include MasterBus powering or 12/24 V DC input for versatile deployment

• Supports multiple languages including English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, and Danish

• Compact design with dimensions suitable for various installation environments

• Low power consumption, less than 160 mW in idle mode
