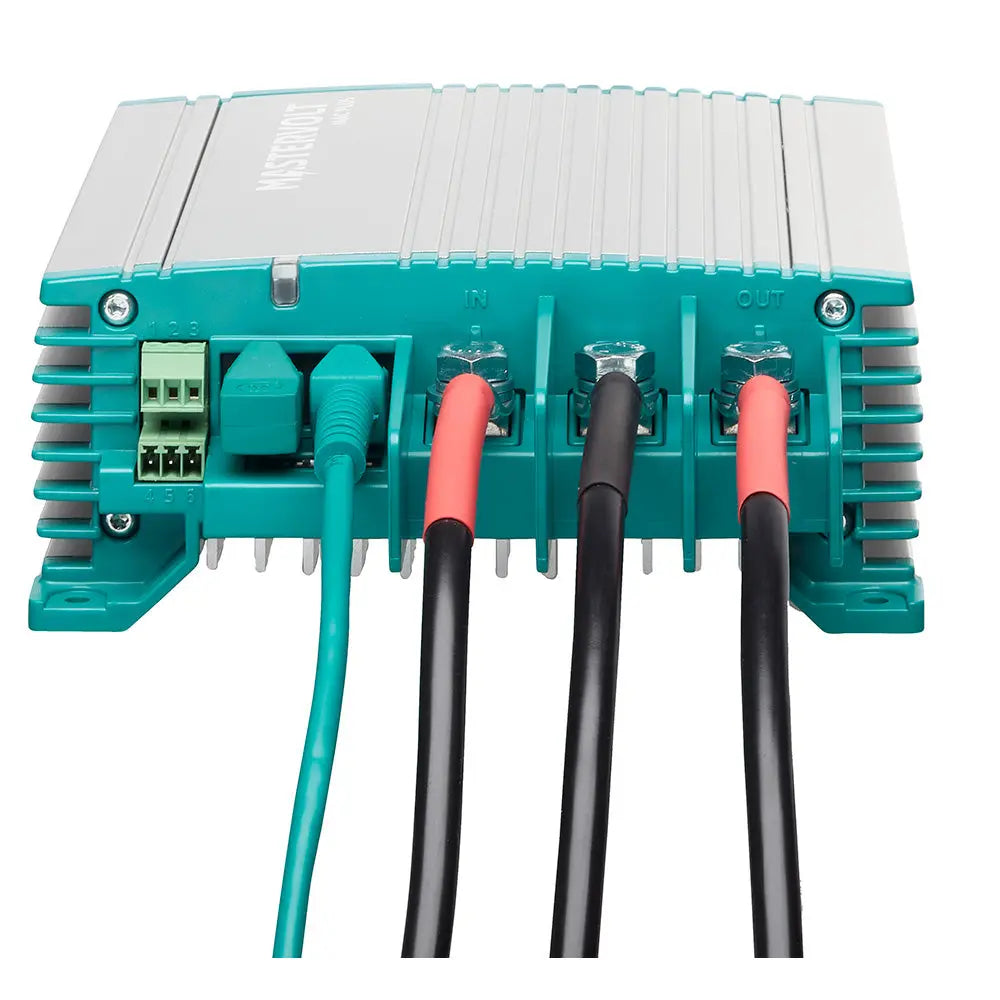

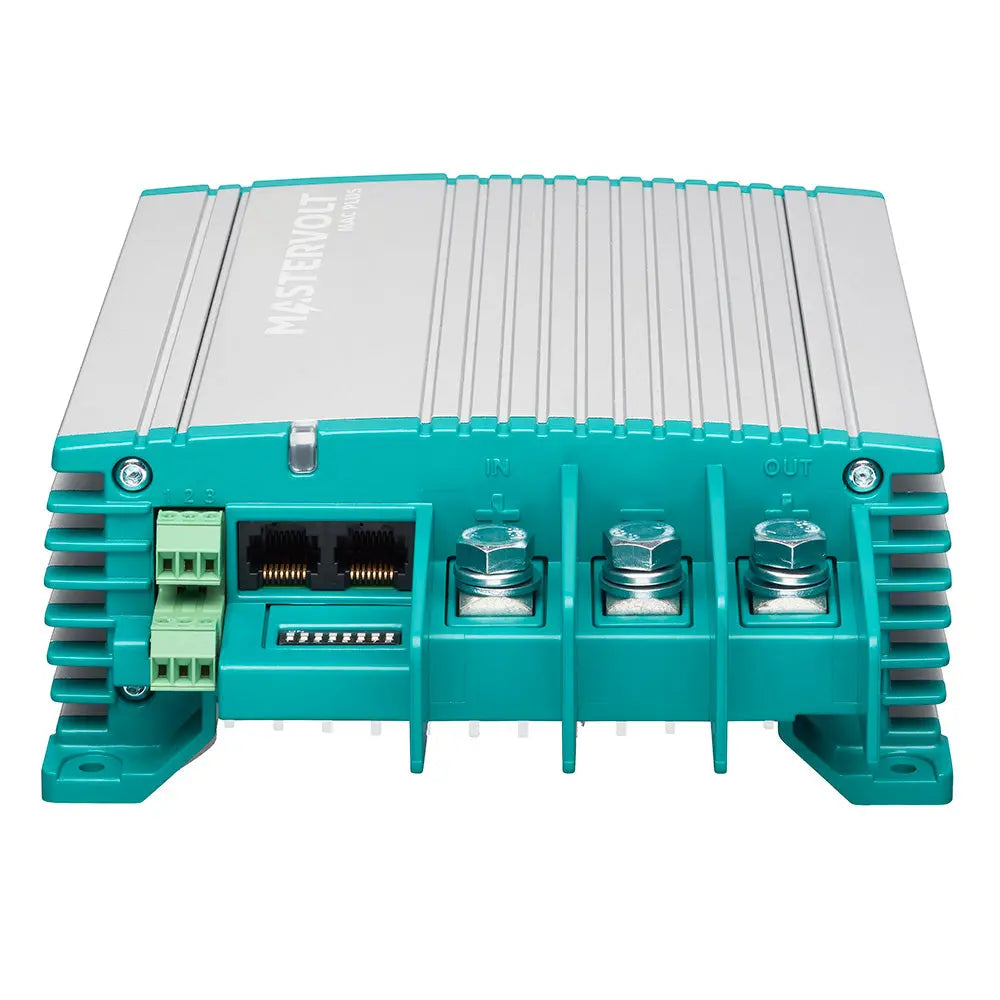

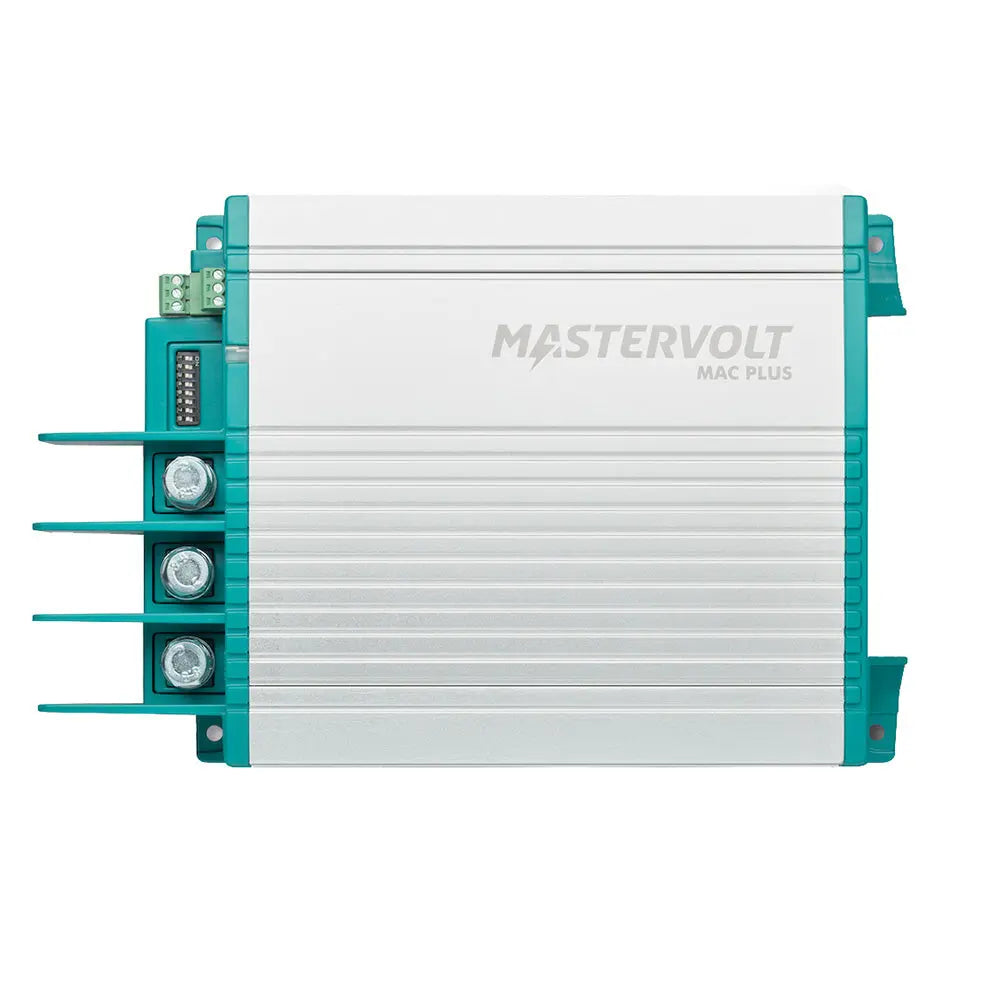

Mastervolt Mac Plus 12/24-30 Battery Charger with CZone Integration

Mac Plus 12/24-30 + CZone

Boost the Service Battery

Too often, service batteries dont get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to the service battery. And, by knowing when the engine is running and providing charge, users can be sure that the Mac Plus will never drain a starter battery.

Proven Mastervolt Quality

Users get peace of mind knowing that they have the best on board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries.

A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and a high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.

Total Power Flexibility

With a wide DC input range, the Mac Plus allows for all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.

Parallel configuration of up to ten units will provide over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.

Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.

Superior Monitoring Control

Compatibility with CZone, NMEA 2000, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.

Features:

• Fast and safe charging, even during short trips
• Fanless design for silent operation
• Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4)
• Even charges fully depleted batteries
• Engine run detection protects the starter battery
• Adjustable current limits to meet Euro 5/6 requirements
• Voltage stabilization protects sensitive equipment, lights, and loads
• Parallel operation to obtain charging capacities well over 100 Amps
• MasterBus, CZone, and NMEA 2000 are compatible for intelligent system monitoring and automation
• Temperature compensation and voltage sense for an optimal charging result
• E-Mark/R10 certification for mobile applications
• Power supply mode offers stable power for sensitive loads
• Heavy-duty connections for easy installation and quick setup via DIP switches

Specifications:

• Battery Temperature Sensor: Yes, included
• Battery Voltage Sense: Yes
• General Specifications:
• Status Indicator: Yes, 3-color LED
• Communication Protocol: MasterBus, CZone NMEA 2000
• Output Voltage: 20-30 V
• Nominal Output Voltage: 24 V
• Output Voltage Stabilization: 2 % at extremes of temperatures, load, and input
• Output Voltage Ripple (peak-peak): Max. 1 %
• Max. Output Power: 725 W
• Nominal Output Power: 675 W
• Max. Output Current: 30 A
• Output Charge Current (3-step mode): 30 A
• Nominal Input Voltage: 12 V
• Input Voltage Range: 10-16 V
• Max. Input Current: 50 A
• Galvanic Isolation: No
• Voltage Limited: Yes
• Efficiency: > 95 % (at nom. input voltage, full load); peak 97
• Parallel Configuration: Yes
• Alarm Contact: Yes, through MasterBus
• MasterBus Powering: No
• Engine Run Signal Input: Yes (active high/active low)
• DIP Switches: Yes, for basic setup
• Dimensions, H x W x D: 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch)
• Weight: 2 kg (4.4 lb)
• Compliance: CE, E-Mark, SAE J1171 ISO 8846 Ignition Protected

Technical Specifications:

• No-load Consumption: < 2 mA
• Charge Characteristic: 3-traps+
• Battery Types: Flooded, Gel, AGM, spiral, Lithium Ion, traction, user-defined
• 3-Step Charge Option: Yes (DIP switch settings)
• DC Consumption: < 5 mA
• Connections: 3 x M8 terminal for cable diameters of 10-50 mm, (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm (remote on/off, temperature sensor, voltage measurement
• Temperature Range (ambient temp.): -25 degrees C to 60 degrees C; derating > 40
• Cooling: Natural cooling
• Protections: Overload, over temperature, DC short circuit, reversed polarity (fuse)
• MasterBus Compatible: Yes

The Mastervolt Mac Plus 12/24-30 is a high-performance DC-DC charger designed to ensure reliable and rapid charging of your service batteries, even during short trips. Featuring a proven 3-step+ charge algorithm, it efficiently restores power to flooded, Gel, AGM, Lithium Ion, and other battery chemistries, providing peace of mind that your batteries are charged safely and completely. Its robust aluminum housing and dust/water resistance make it suitable for demanding environments, while the fanless design guarantees silent operation. The Mac Plus intelligently detects engine running conditions to protect the starter battery from drain and supports high current parallel configurations, enabling over 100 amperes of charging capacity for larger systems. With a wide input voltage range, it seamlessly adapts to various DC sources, including modern Euro 5 and 6 alternators, and supports multiple battery types, including lithium batteries like LiFePO4. The device's advanced high-frequency technology and microprocessors minimize power loss when switching voltages, ensuring maximum efficiency. Compatibility with control systems such as MasterBus, CZone, and NMEA 2000 allows for comprehensive monitoring and automation, while configurable options via DIP switches or MasterAdjust software simplify setup. Its built-in features include temperature compensation, voltage sense ports, and adjustable current limits to meet specific requirements and standards, including CE and E-Mark certifications for mobile applications. Overall, the Mac Plus offers a compact, efficient, and versatile solution for maintaining optimal battery health in marine, RV, or mobile environments, ensuring dependable power for all your essential loads and systems.

Features:

• Fast and safe charging, even during short trips

• Fanless design for silent operation

• Suitable for flooded, Gel, AGM, and Li-Ion batteries (including LiFePO4)

• Provides full charge to depleted batteries

• Engine run detection protects the starter battery

• Adjustable current limits to meet Euro 5/6 standards

• Voltage stabilization safeguards sensitive equipment and loads

• Parallel operation supporting over 100 Amperes

• Compatible with MasterBus, CZone, and NMEA 2000 systems for monitoring and control

• Temperature compensation and voltage sense for optimal charging

• E-Mark and R10 certification suitable for mobile applications

• Power supply mode delivers stable power to sensitive devices

• Heavy-duty connections facilitate easy installation and quick setup with DIP switches
