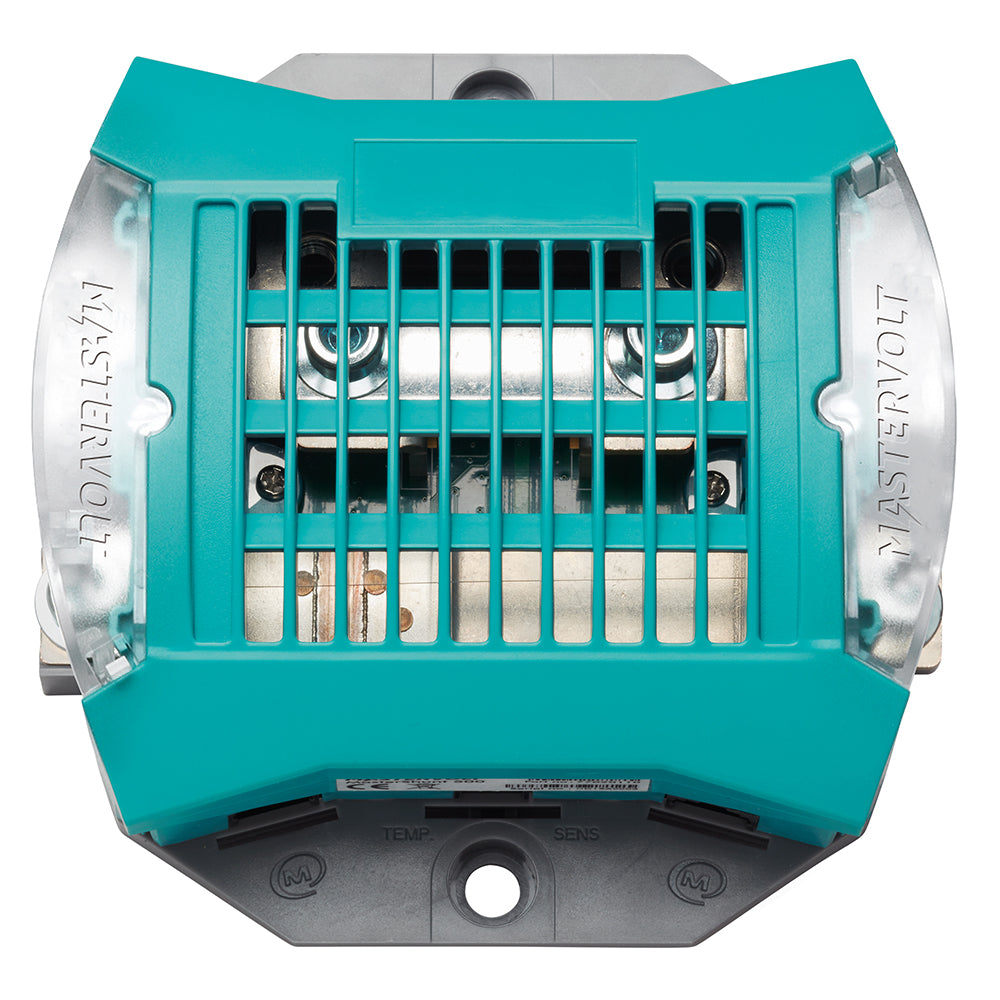

Mastervolt MasterShunt 500 CZone Battery Monitor for Marine and Mobile Systems

MasterShunt 500 CZone

MasterShunt is the heart of every battery powered energy system. This integrated battery monitor shares information about the battery bank with other MasterBus, CZone or NMEA 2000 enabled devices such as battery chargers, inverter/chargers and displays. No surprises: allowing complete automation of your system, MasterShunt improves comfort, prolongs battery life and extends your runtime.

The MasterShunt 500 provides all information needed for monitoring your battery bank and control of your system, such as voltage, current, state of charge and time remaining. All information is made available to the system by a single MasterBus or CZone cable. Extremely accurate measurement of current flow over state of charge enables the MasterShunt to precisely determine the time remaining.

Programmable events and an integrated real time clock make it possible to fully automate your system. Examples are to start your generator automatically when the battery bank is low (or just delaying at night!), or to automatically generate a warning at a certain depth of discharge. The proven MasterShunt design has been upgraded to obtain an even higher level of accuracy and control. Taking into account battery specific parameters, MasterShunt takes reading accuracy to a whole new level.

The MasterShunt 500 CZone allows freedom of choice with regards to fuse type, rating and location. The battery monitor is supplied with an internal bus bar, to be used in situations where an external fuse holder is selected. In case the MasterShunt is installed close to the battery, the bus bar may be replaced by either an ANL type or Class T main fuse, saving both space and cost.

Features:

• MasterBus, CZone and NMEA 2000 communication.
• Fits in a CZone system including setup tools and configuration file.
• Digital shunt providing the energy system with extensive information and historical data.
• Very accurate and reliable determination of State of Charge (SOC).
• Service mode prevents memory loss during system maintenance.
• Realistic and precise indication of the time remaining.
• For higher current, multiple MasterShunt models may be installed in parallel.
• MasterConnect system makes connecting to the DC Distribution product very easy.
• Straight forward, easy to install.
• Freedom of choice for fuse type, rating and location. Suitable for T-fuse and ANL-fuse (to be ordered separately).
• Robust housing with isolation of the DC connections.

Applications:

Any application in marine, mobile, industrial, infrastructure where batteries need to be monitored for increased reliability, battery life, comfort and runtime.

The Mastervolt MasterShunt 500 CZone is an essential component for advanced battery management in marine, mobile, industrial, and infrastructure applications. This digital shunt provides comprehensive real-time data on voltage, current, state of charge, and estimated run time, ensuring users can monitor their battery bank with high precision. Its compatibility with MasterBus, CZone, and NMEA 2000 communication protocols allows seamless integration with existing system components, including battery chargers, inverter/chargers, and displays, simplifying system setup and enhancing automation capabilities. The single cable connection streamlines installation, reducing complexity and potential points of failure. The device's high accuracy in current measurement and state of charge calculation enables precise control and monitoring, which can lead to improved battery longevity and system reliability. With programmable events and an integrated real-time clock, the MasterShunt 500 supports automation features such as generator start/stop and low-discharge warnings, further optimizing system efficiency and convenience. The flexible fuse options accommodate various installation needs, whether using internal bus bars or external fuses like ANL or Class T types, making it adaptable to different setups. Its robust design with insulated connections ensures durability in demanding environments, making it suitable for extensive use in harsh conditions. The Mastervolt MasterShunt 500 CZone is a reliable, easy-to-install solution that enhances energy system management, providing critical data and automation features to extend battery life and improve overall system performance.

Features:

• MasterBus, CZone, and NMEA 2000 communication compatibility

• Integrates seamlessly into CZone systems with setup tools and configuration files

• Digital shunt delivers extensive energy system data and historical insights

• High-precision determination of state of charge (SOC)

• Service mode preserves memory during maintenance activities

• Accurate and realistic indication of remaining run time

• Multiple units can be installed in parallel for higher current applications

• Compatible with MasterConnect system for easy connection to DC distribution products

• Simple installation process with robust housing and insulated connections

• Flexible fuse options including internal bus bar, ANL, or Class T fuses for space and cost savings
