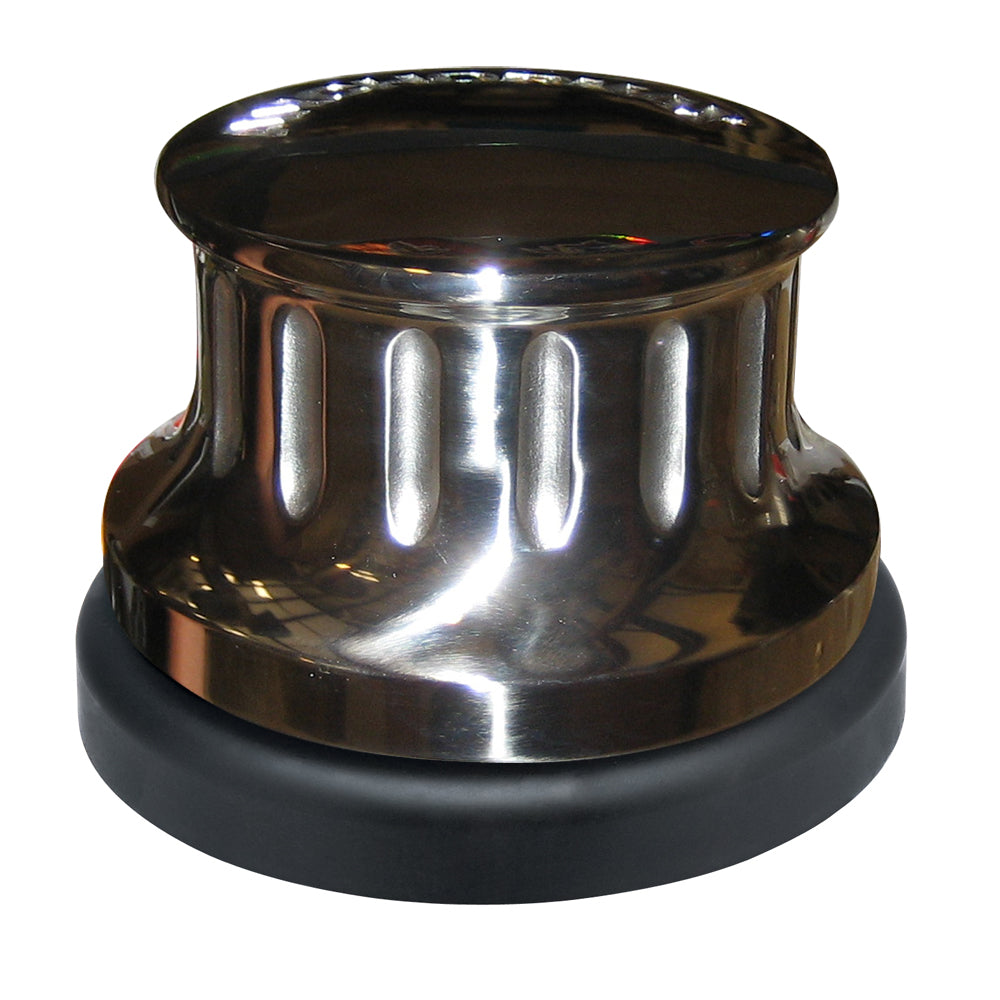

Maxwell ANCHORMAX Windlass - 12V Marine Anchor Winch with 386kg Pull Capacity

ANCHORMAX Windlass

Features:

• Has an extremely high power to weight ratio

• ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor

• Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)

• Fitting to the boat is simplicity itself as no dismantling of the winch is required

• Gear housings are marine-grade alloy and the drum is stainless steel

• Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions

• Not recommended for use to haul halyards

• Not recommended for use to haul chain

Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.

STANDARD EQUIPMENT

• Footswitch

SPECIFICATIONS
Maximum Line Pull	386kg (850lb)
Speed @ nominal working load	24m/min (76ft per min) (80 amps with 100kg/220lb load)
Voltage	12v
Power	600w
Weight	8kg(17.6lb)
Maximum Boat Load	10m (33ft)
Max. Boat Weight	4 Tons

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Maxwell ANCHORMAX Windlass is a compact and powerful marine anchor winch designed for boats ranging from 16 to 32 feet. Featuring an extremely high power-to-weight ratio, this windlass is ideal for securing anchor lines with ease and efficiency. Its fully sealed gearbox driven by a vertically mounted, permanent magnet motor ensures reliable operation while minimizing intrusion below decks, making it a suitable choice for various boat configurations. The stainless steel drum and marine-grade alloy gear housings provide durability and resistance to harsh marine environments, extending the lifespan of the equipment.
