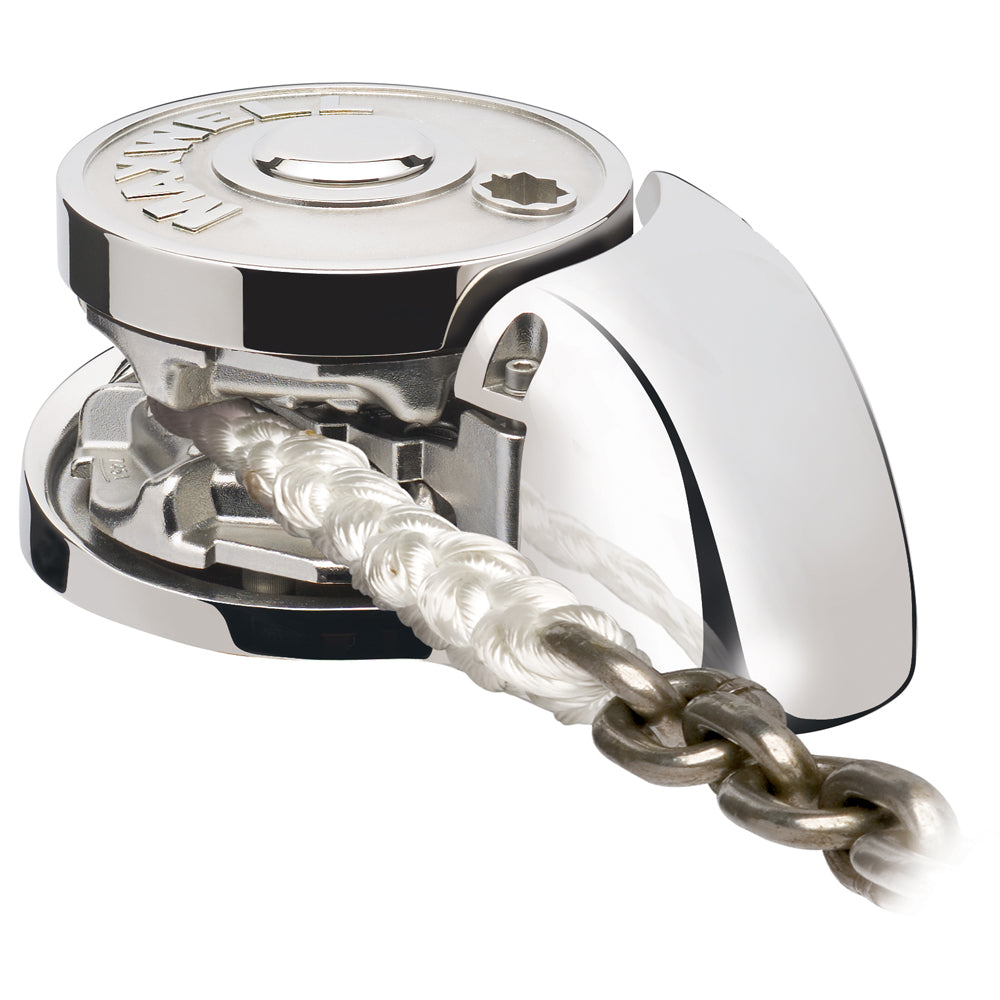

RC12/10 12V WindlassThe RC12 fully automatic windlass series is designed to effortlessly retrieve and deploy 10mm (3/8") short link chain and 16mm (5/8") to 20mm (3/4") three strand or 8-Plait rope (RC12-10) and 12mm/13mm (1/2") short link chain and 20mm (3/4") three strand or 8-Plait rope (RC12-12).
With a maximum pull of 1590 kg (3500 lb), and an anchor retrieval rate of 15m/min (50ft/min), the RC12-12 is one of the fastest and gruntiest windlasses in its class.
A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.
The RC12 is packed with innovative features combined with Maxwell's traditionally classic aesthetics, but reflecting the modern form follows function of the highly successful RC6, RC8 and RC10 series windlasses.
The elegantly designed deckplate and chainpipe cover are manufactured in polished marine-grade 316 stainless steel, as are the heavy duty pressure arm, stripper, chainwheel and fluted capstan drum.
The huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
Double cone-type brake/clutch mechanism permits Free Fall anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement, ensuring safe and precise operator control.
The RC12 features Maxwell's revolutionary and Wave Design chainwheel.
Emergency manual retrieval is made simple and easy with Maxwell's unique Active Latch Ratchet System operation that prevents backwind of the windlass during manual hauling of the anchor.
The Maxwell-designed and innovative black, hard anodized gearbox provides numerous advantages: - Fast and easy windlass installation - More corrosion resistant - Easy to maintain and service - Takes up less room in the anchor locker - 75:1 Ratio (RC12-10) or 100:1 Ratio (RC12-12), single stage design with less moving parts, for smoother and quieter operation - Allows for multi-positioning of the gearbox/motor.
Every Maxwell automatic rope/chain windlass comes complete with all the necessary components for fully automatic dual direction control in a competitively priced package.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Maxwell RC12/10 12V Windlass is a reliable and efficient solution designed for effortless anchor retrieval on boats equipped with 10mm (3/8") short link chain and up to 20mm (3/4") three strand or 8-Plait rope. With a maximum pull capacity of 3,500 pounds and a retrieval rate of 50 feet per minute, this windlass offers both power and speed, making it ideal for demanding marine applications. Its sleek low-profile design and polished marine-grade 316 stainless steel components ensure durability and a modern aesthetic that complements any deck setup.
Constructed with innovative features such as Maxwell's Wave Design chainwheel and a robust black anodized gearbox, the RC12/10 provides smooth operation, corrosion resistance, and straightforward maintenance. The heavy-duty pressure arm, chainwheel, and capstan drum are all crafted from stainless steel, ensuring longevity in harsh marine environments. The large through-deck hawse pipe facilitates easy entry and exit of chain or rope into the anchor locker, simplifying the anchoring process.
Safety and control are prioritized with a double cone-type brake/clutch mechanism that allows for free fall anchoring, along with Maxwell's active latch ratchet system for manual retrieval. The cone clutches deliver smooth engagement for safe operation, while the gear ratio options of 75:1 or 100:1 (depending on the model) enable precise and quiet operation. The windlass's compact design allows for flexible installation and multi-positioning of the gearbox and motor, optimizing space in the anchor locker.
Every Maxwell RC12/10 windlass includes all necessary components for fully automatic dual-direction control, providing a seamless anchoring experience. Available in both traditional and fluted stainless steel capstan drum versions, this windlass combines modern form with proven functionality to meet the needs of serious boaters. Please contact the manufacturer directly for support or warranty inquiries, as returns are not accepted through the original point of purchase.
Features:
- Powerful maximum pull of 3,500 pounds for efficient anchor retrieval
- Retrieval rate of 50 feet per minute, ensuring swift operation
- Constructed with marine-grade 316 stainless steel for durability and corrosion resistance
- Innovative Wave Design chainwheel for smooth, reliable performance
- Heavy-duty pressure arm, chainwheel, and capstan drum in stainless steel
- Large through-deck hawse pipe for easy chain or rope entry and exit
- Double cone-type brake/clutch mechanism for safe free fall anchoring
- Active latch ratchet system for easy manual retrieval
- Gearbox with 75:1 or 100:1 ratio for quiet, precise operation
- Compact design allowing flexible installation and multi-positioning
- Includes all components for fully automatic dual-direction control
