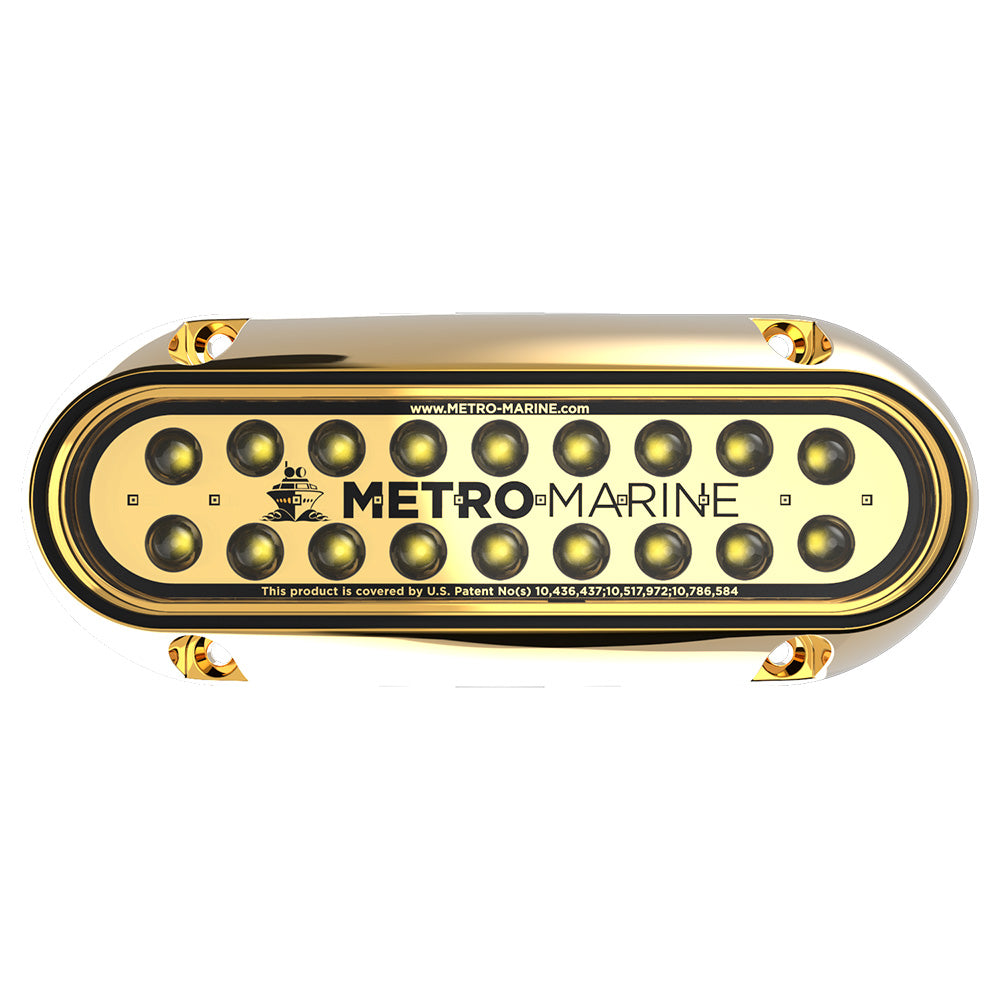

Metro Marine F-BME1-H-W3-45 High-Output Underwater LED Light with 45° Beam - White

High-Output Elongated Underwater Light with Intelligent Monochromatic LED's - White, 45 Beam

The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the waters surface to provide vibrant White light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marines F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. Leveraging Metros rich legacy of innovation and leadership in optics LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 18 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important.

The F-BME1-H-W3-45 is a superior underwater White LED luminaire with 45 optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.

Clear Lens Technology

One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVCs became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear forever!

Anti-Condensation Assembly Methodology

Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!

Technical Specifications:

• Beam Angle - 45
• Input Voltage - 10VDC-30VDC
• Power Consumption - 45.5W
• Dimensions - 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight - 2.42 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122

The Metro Marine F-BME1-H-W3-45 is a high-performance underwater lighting fixture designed for marine applications up to 15 feet deep. Featuring an elongated form factor and 18 high-output monochromatic white LEDs, this fixture provides vibrant, uniform illumination ideal for yachts, docks, sea walls, fountains, and theme parks. Its 45-degree beam angle ensures focused lighting that enhances visibility and aesthetic appeal on mid- to large-scale structures ranging from 32 to 100 feet in length. Constructed with watertight aluminum bronze housing and silicon bronze hardware, the F-Series fixtures are built to withstand harsh marine environments, delivering durability and consistent performance over time.

One of the key innovations of this fixture is its Clear Lens Technology, which employs UVC LEDs to actively prevent biofouling. This technology keeps the lens surface crystal clear, ensuring maximum light transmission and reducing maintenance caused by algae and other growths. Additionally, the F-BME1-H-W3-45 incorporates an anti-condensation assembly methodology, manufactured in a Class 1000 Clean Room to eliminate internal moisture buildup and prevent corrosion that can compromise fixture longevity. These features make the fixture ideal for long-term underwater installations where reliability and high-quality illumination are critical.

Operating on a voltage range of 10VDC to 30VDC and consuming approximately 45.5 watts, this fixture offers efficient energy use while delivering powerful illumination. Its clear quartz lens and robust construction enable it to operate reliably across a wide temperature range from -40°F to 122°F. Compact and lightweight, the fixture measures just over 7 inches wide, nearly 3 inches high, and slightly over 1 inch deep, making it suitable for various mounting configurations. With a design focused on durability, efficiency, and ease of maintenance, the Metro Marine F-BME1-H-W3-45 underwater light is an excellent choice for professional marine lighting projects requiring superior performance and longevity.

Features:

• Beam Angle: 45 degrees for focused illumination

• Input Voltage: 10VDC to 30VDC for versatile power options

• Power Consumption: 45.5 watts for efficient operation

• Construction: Watertight aluminum bronze housing with silicon bronze hardware

• Lens Material: Clear quartz for durability and clarity

• Biofouling Prevention: UVC LED technology maintains crystal-clear lenses

• Condensation Resistance: Patent-pending assembly eliminates internal moisture buildup

• Temperature Range: Operates reliably from -40°F to 122°F

• Compact Design: Measures approximately 7.2 inches wide x 2.9 inches high x 1.1 inches deep
