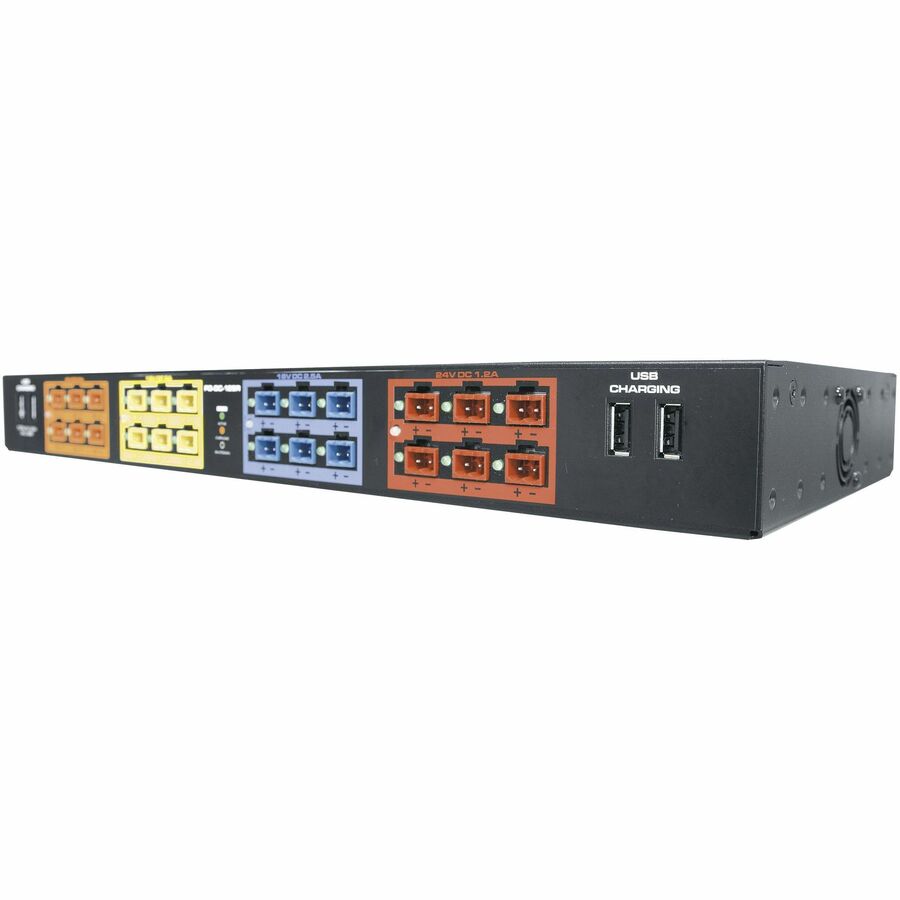

Middle Atlantic PD-DC-125R 125W 5V DC Power Distribution Unit

Middle Atlantic DC Multi-Mount Universal DC 125W 5V Power Distribution Unit - For Small to Medium Devices

The Middle Atlantic PD-DC-125R DC Multi-Mount Universal Power Distribution Unit provides a clean, organized power solution for AV, security, and networking installations. Designed to replace bulky wall adapters and crowded power strips, this 125-watt PDU distributes regulated DC power to multiple small and medium devices from a single enclosure. Its wall-mountable design also supports flexible integration into equipment racks, compact enclosures, and wall boxes, helping installers create a more efficient and professional installation.
The PD-DC-125R features a 5V DC output configuration and supports multiple voltage options across the Select Series platform, including 5V, 12V, 18V, and 24V depending on the model. Color-coded screw terminal connectors include standard voltage and polarity labeling for faster, more accurate wiring. LED indicators show activity at each output and help identify maximum capacity across each voltage bank. The included hardware kit provides flexible mounting hardware, terminal connectors, and a 6-foot IEC power cord for convenient installation.
Built-in protection helps safeguard connected equipment and the power distribution unit. MOV surge and overload protection is provided on the AC input, while each individual DC output includes auto-resetting PTC overload protection. The unit is UL Listed for United States and Canadian requirements, RoHS compliant, and supported by a limited 3-year warranty. USB charging ports are available for compatible power-only charging applications and are not intended for data transfer. AC convenience outlets are offered on the PD-DC-45 model and are not included as a feature of this PD-DC-125R configuration.
The Middle Atlantic PD-DC-125R combines high-current capacity, clear status monitoring, flexible mounting, and dependable circuit protection in a compact 1U solution. It is well suited for installations requiring centralized 5V DC power for AV components, security devices, networking equipment, and other low-voltage electronics.

Features:

• UL Listed to United States and Canadian requirements

• 125W DC power distribution for small to medium AV, security, and networking devices

• 5V DC output configuration with Select Series support for multiple voltage options depending on model

• Wall-mountable design with flexible installation options for racks, enclosures, and wall boxes

• Hardware kit includes flexible mounting hardware, color-coded screw terminal connectors, and a 6-foot IEC power cord

• LED indicators show activity at each output and alert maximum capacity on each voltage bank

• MOV surge and overload protection on the AC input

• Auto-resetting PTC overload protection on each individual DC output

• Color-coded screw terminal connectors with standard voltage and polarity labeling

• USB charging ports support compatible power-only charging applications and do not provide data transfer

• RoHS compliant and backed by a limited 3-year warranty
