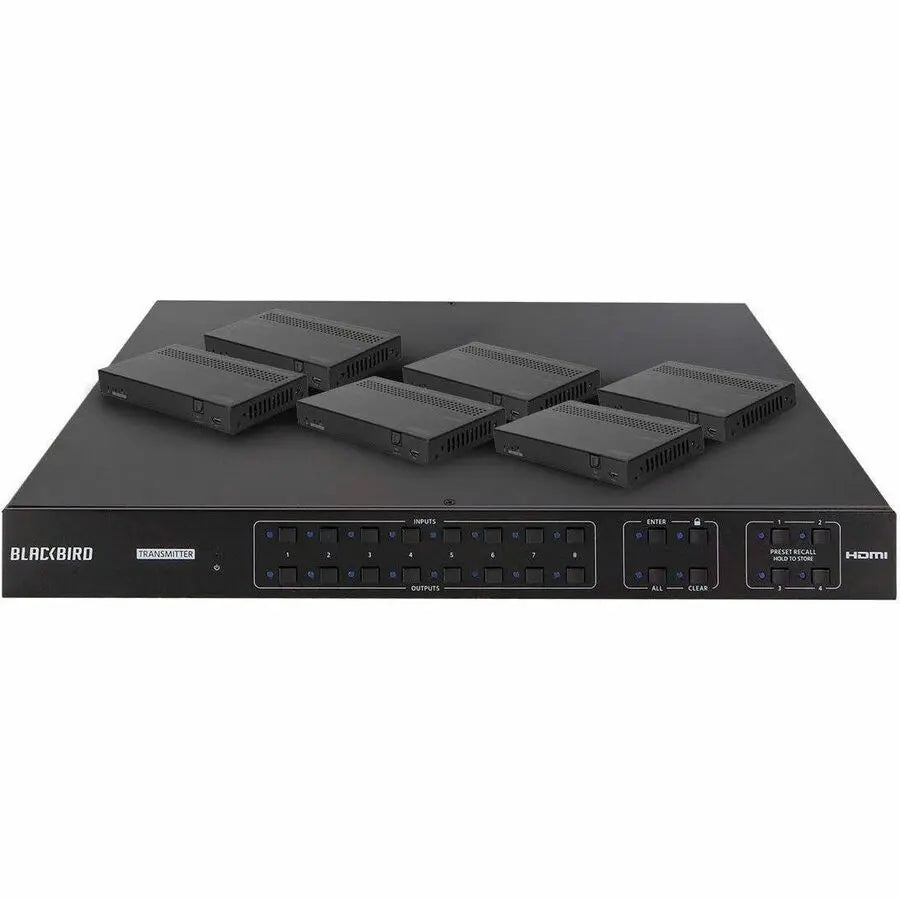

Monoprice Blackbird 39670 4K HDBaseT Audio/Video Matrix Switchbox

Monoprice Blackbird 39670 Audio/Video Switchbox

The Monoprice Blackbird 39670 is a versatile 4K HDMI and HDBaseT matrix switch that enables seamless management of multiple audio and video sources in professional or home theater setups. It features eight HDMI inputs, two HDMI outputs, and six HDBaseT outputs, allowing you to connect various media devices and distribute high-resolution content across long distances with ease. Supporting resolutions up to 4K@60Hz with YCbCr 4:4:4 chroma subsampling, the Blackbird 39670 ensures stunning image quality for demanding visual applications.

This switchbox transmits 4K signals over a single Cat5e/6 Ethernet cable up to 131 feet (40 meters) and 1080p signals up to 229 feet (70 meters), providing flexibility for complex installations. It includes six HDBaseT receivers, which receive both video and audio signals, and supports Power over Cable (PoC), allowing receivers to draw power directly from the switch over Ethernet cables, reducing the need for additional power supplies. Audio extraction from HDMI inputs, HDBaseT outputs, and ARC-enabled outputs enables high-quality digital optical S/PDIF audio output, ensuring audio fidelity for all connected devices.

The Blackbird 39670 supports advanced features such as smart EDID management via a rear DIP switch, bidirectional IR extension for remote control flexibility, and RS-232 and web GUI control options for remote operation. Its front panel buttons facilitate quick source switching, while the included IR remote provides convenient control from a distance. Designed for easy integration, it can be connected and operated without physical access to the rear panel, making it ideal for professional AV installations or sophisticated home theaters.

Whether you need to deliver 4K content across a large venue or manage multiple sources within a sophisticated home media room, the Monoprice Blackbird 39670 offers high performance, reliable connectivity, and comprehensive control features. Its compact design and extensive compatibility make it a practical choice for integrators and end-users seeking a robust AV switching solution with advanced features and long-distance transmission capabilities.

Features:

• Supports HDMI resolutions up to 4K@60Hz with YCbCr 4:4:4 HDR, including 1080p@60Hz and 3D video

• Fully compliant with HDMI 2.0 and HDCP 2.2 specifications

• Transmits 4K signals up to 131 feet (40 meters) and 1080p signals up to 229 feet (70 meters) over a single Cat5e/6 Ethernet cable

• Includes six HDBaseT outputs and six receivers for versatile distribution

• Supports Power over Cable (PoC), enabling receivers to draw power from the switch

• Provides two HDMI outputs for local display connections

• Extracts audio from HDMI inputs, HDBaseT outputs, and ARC for digital optical S/PDIF output

• s smart EDID management via rear DIP switch for optimal compatibility

• Supports bidirectional IR extension for remote control flexibility

• Control options include front panel buttons, IR remote, RS-232, and Web GUI

• Designed for easy source switching and seamless display connection

• Supports resolutions up to 3840 x 2160 for high-quality visual experience
