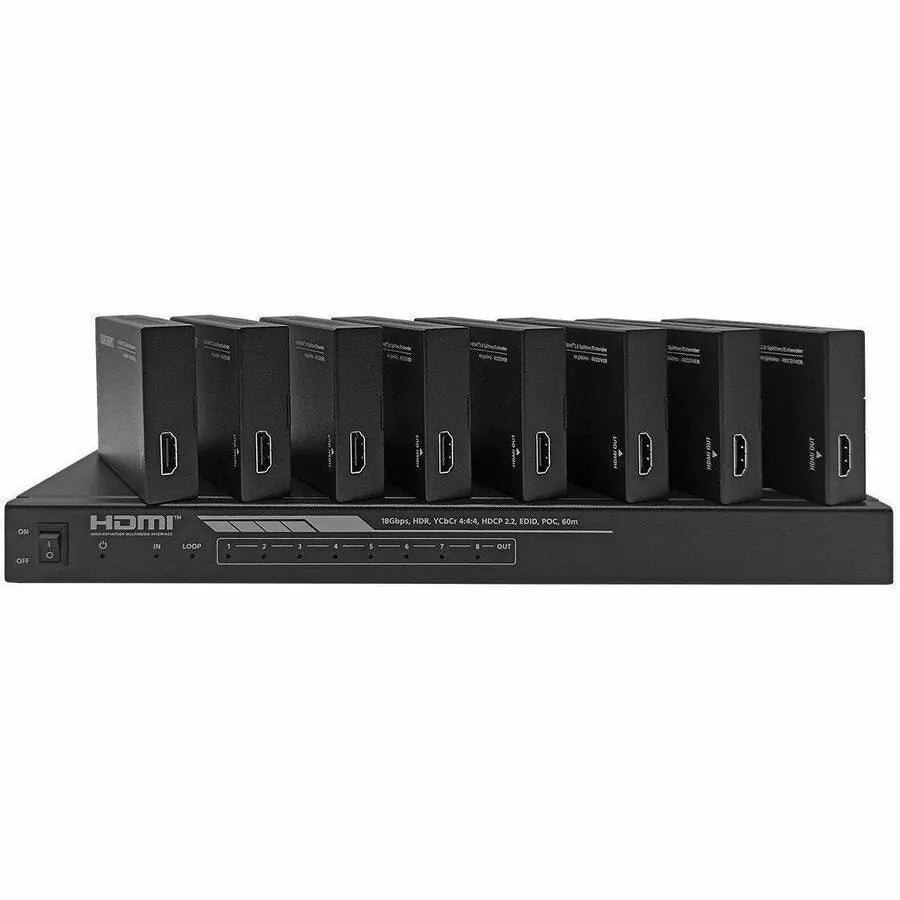

Monoprice Blackbird HDMI Splitter 42272 – 4K 1x8 HDMI Distribution and Extender

The Monoprice Blackbird HDMI Splitter 42272 is an advanced distribution solution designed to connect a single HDMI source to up to eight remote displays. Supporting resolutions up to 4K at 60Hz with YCbCr 4:4:4 color space, this splitter ensures crisp, high-definition video clarity for professional or entertainment setups. It is compatible with HDMI 2.0b and HDCP 2.2/1.x standards, offering a maximum bandwidth of 18Gbps, which guarantees smooth playback even with high dynamic range formats such as HDR10, HDR10+, Dolby Vision, and HLG. Utilizing Cat6/6a/7 Ethernet cables, it can extend 4K@60Hz signals to distances over 35 meters (114 feet), 4K@30Hz up to 50 meters (164 feet), and 1080p@60Hz signals up to 60 meters (196 feet), making it ideal for large venues and digital signage.
Equipped with audio features, the splitter supports 7.1-channel pass-through for immersive sound and can extract audio signals for separate amplification through digital coaxial or 3.5mm stereo outputs. The built-in IR pass-through allows for remote control of connected devices, enhancing user convenience. Additionally, the Power over Cable (PoC) feature enables the receivers to be powered directly by the transmitter over Ethernet cables, simplifying installation and reducing clutter. Advanced EDID management ensures compatibility with various source devices, providing reliable signal distribution across multiple displays.
Designed with versatility in mind, the Blackbird HDMI Splitter includes a dedicated HDMI input for connecting high-end HDMI-supported devices, offering a seamless single-cable connection for both audio and video. The device also features a built-in USB port, allowing unhindered connection of USB peripherals for data transfer or device control. With a sleek, professional design and comprehensive features, this splitter is the perfect choice for digital signage, conference rooms, or home theater applications seeking high-quality, extended HDMI distribution over Ethernet. The package includes the splitter unit and eight receivers, all backed by a one-year limited warranty for peace of mind.For high-performance video and audio distribution, the Monoprice Blackbird HDMI Splitter 42272 stands out as a reliable solution, combining advanced technology with user-friendly features to meet demanding display requirements.

Features:

• Supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space

• Distributes a single HDMI source to eight distant displays

• Compatible with HDMI 2.0b and HDCP 2.2/1.x standards

• Provides up to 18Gbps video bandwidth for high-quality playback

• Extends 4K@60Hz signals over Ethernet up to 114 feet (35 meters), 4K@30Hz up to 164 feet (50 meters), and 1080p@60Hz up to 196 feet (60 meters)

• Supports HDR10, HDR10+, Dolby Vision, and HLG for enhanced visual experience

• Supports 7.1-channel high-definition audio pass-through

• Audio extraction for separate amplification via digital coaxial and 3.5mm stereo outputs

• One-way IR control signal pass-through for remote device management

• Power over Cable (PoC) feature enables receivers to be powered over Ethernet cables

• Includes advanced EDID management for reliable device compatibility

• s HDMI input for connection with high-end HDMI-supported devices

• Built-in USB port for unhindered connection with USB peripherals
