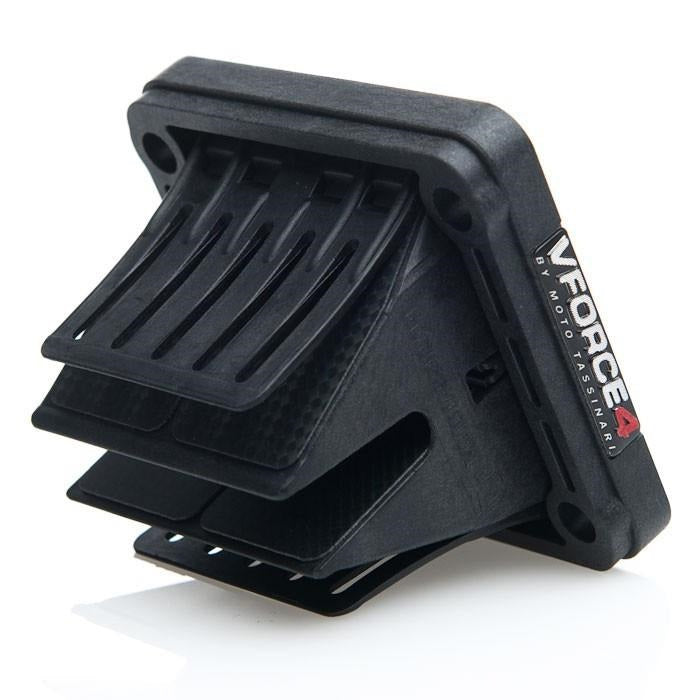

MOTO TASSINARI V4R01D V-Force 4 Reed Valve Kit for Honda Dirt Bikes

The unique design of the VForce reed valve system features double the reed tip surface over a conventional reed valve design. This has two major benefits: 1) The reed petals only travel half the distance as a conventional reed valve design to get the same airflow. 2) Because the reed petals only need to travel half the distance of that on a conventional reed valve design, there is a greater chance of them being fully opened as well as a better chance of sealing when they are "closed". A reed petal never truly "closes" in a classic sense, as it is always in movement. Consider this, an engine operating at 8,000 RPM results in a reed petal opening and closing 133 times in one second. This fact, sheds light on another VForce advantage. Since the petals are only traveling half the distance, they generally last longer as they receive less wear than the reed petals on a conventional reed valve design.

STANDARD VFORCE REED VALVE FEATURES
• Double the reed tip surface over a conventional reed valve design
• Increased bottom end, stronger mid-range and longer top-end
• Greater efficiency due to reduced reed petal travel
• More airflow means more horsepower
• Reduced reed petal wear
• Screw free design eliminates risk of screws going through motor
• Screw free design enables rapid reed petal changes

IMPROVED VFORCE4 FEATURES
• All-new reed petal resin system, carbon fiber and lay-up
• Pre-curved reed petal ensures better seal at tip
• Wider reed cage for maximum airflow
• Combined reed tip area increased by 10.5% resulting in increased total air flow
• Airfoil shape added to cage tip to increase air velocity from outer ports
• Long reed stops added to progressively slow petal tip velocity, for increased petal durability
• Reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape

The MOTO TASSINARI V4R01D V-Force 4 Reed Valve Kit is engineered to enhance the performance of Honda dirt bikes by optimizing airflow and improving throttle response. Crafted with precision, this kit includes all necessary components to upgrade your engine's intake system, resulting in increased power output and more efficient combustion. The V-Force 4 reed valve design features a unique construction that ensures consistent reed sealing and durability under demanding riding conditions. This kit is suitable for riders seeking reliable performance enhancements for their Honda dirt bike without extensive modifications. Installation is straightforward, making it a practical upgrade for both amateur and experienced motocross enthusiasts. Built with high-quality materials, the V-Force 4 reed valve kit offers longevity and sustained performance, ensuring your bike maintains peak efficiency during rigorous riding sessions.

Features:

• Designed specifically for Honda dirt bikes to improve airflow and throttle response

• Includes all components necessary for a complete upgrade

• V-Force 4 reed valve design for optimal reed sealing and durability

• Constructed with high-quality materials for longevity and reliable performance

• Easy to install, suitable for both novice and experienced riders
