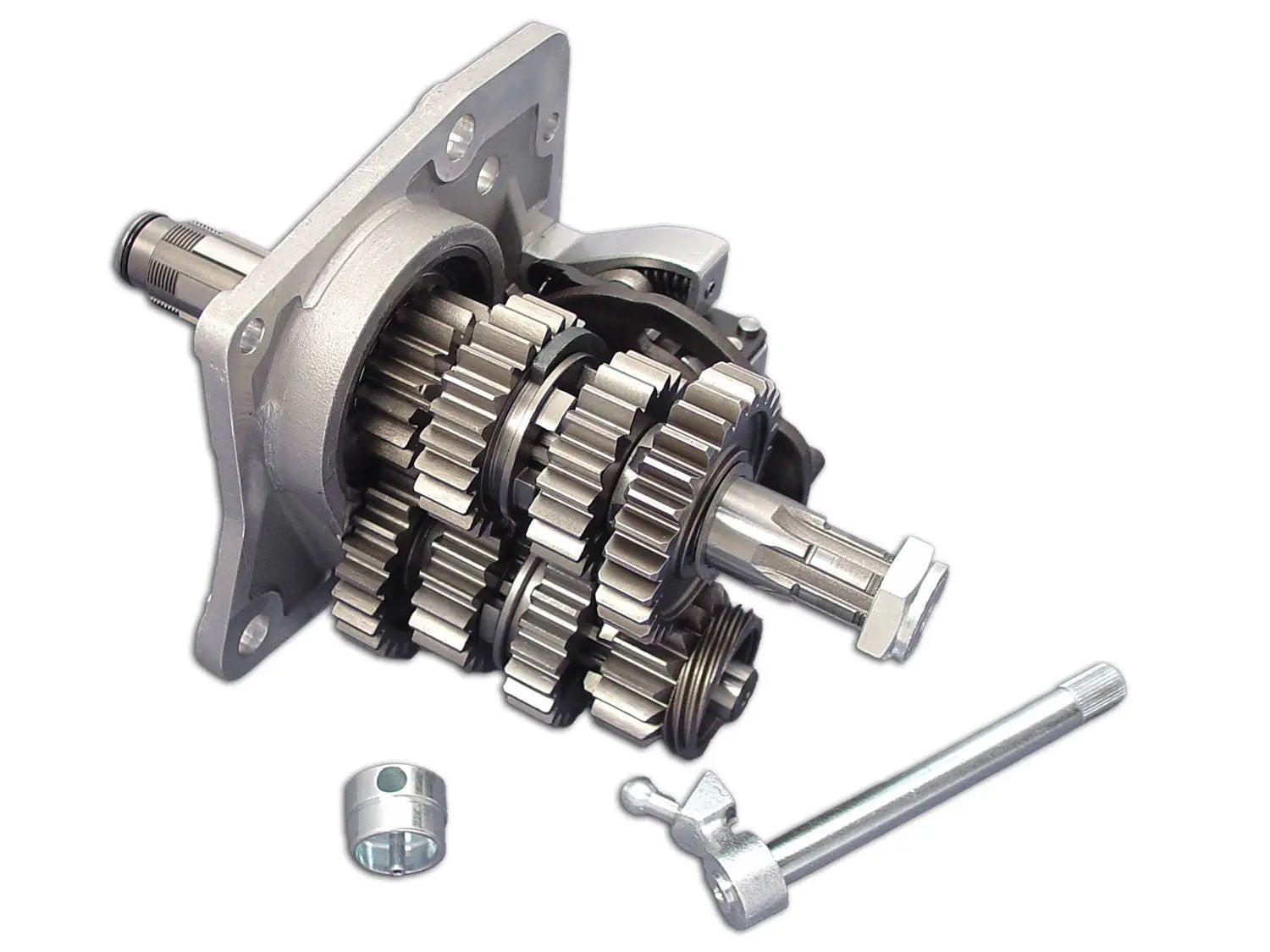

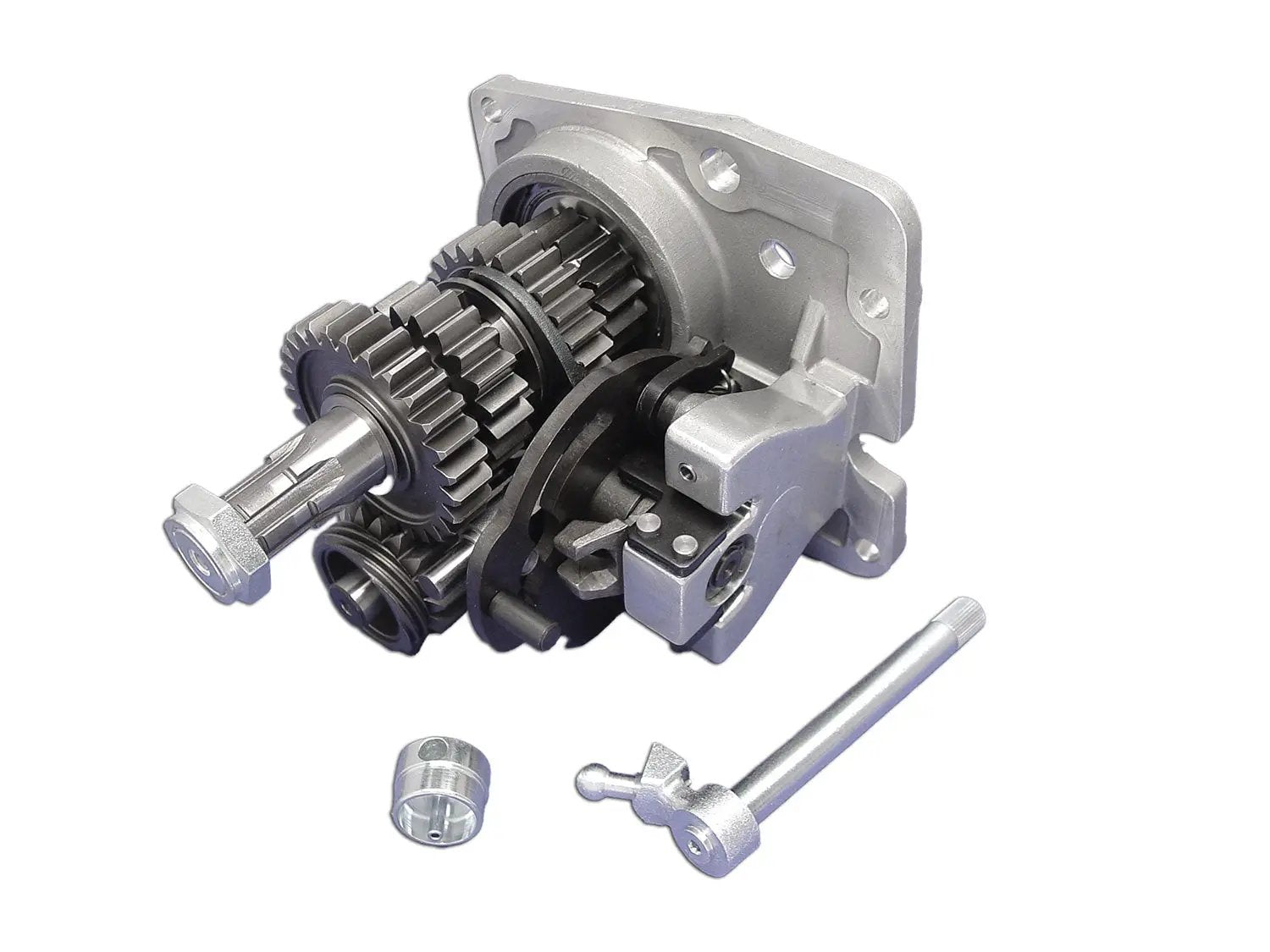

Motorshop 4-Speed Transmission Gear Assembly For Harley-Davidson XLH 1957-1966
Complete 4-speed transmission gear assembly designed to replace the XLH gearbox on Harley-Davidson models from 1957 to 1966, arriving pre-assembled to the trap door for straightforward installation.
The unit includes main and countershaft gears, shift forks, and shafts pre-assembled to a trap door, providing a reliable foundation for restoring or upgrading your motorcycle’s transmission system. A shift selector shaft is included for seamless shifting operation.
- Fitment: Harley-Davidson XLH 1957–1966; Harley-Davidson XLCH 1957–1969.
- Includes main and countershaft gears, shift forks, and shafts pre-assembled to trap door for ease of installation.
- Requires separate purchase of right side case rollers, shims, and bearings for complete assembly.
- Precise end play and trap door alignment are essential for optimal performance and should be completed before final assembly.
- Detailed instructions are available online to guide technicians through the setup process and ensure proper operation and longevity of the transmission.
Transmission gear assembly unit is a 4-speed unit.
The Motorshop 4-Speed Transmission Gear Assembly Unit is a comprehensive replacement component designed specifically for Harley Davidson XLH models from 1957 through 1966. This unit includes the main and countershaft gears, shift forks, and shafts pre-assembled to a trap door, providing a reliable foundation for restoring or upgrading your motorcycle’s transmission system. The assembly is crafted to ensure precise fitment and durability, with the shift selector shaft included for straightforward installation. Proper adjustment of the main and countershaft end play, as well as trap door alignment with the case, is essential for optimal performance and should be completed before final assembly. Detailed instructions are available online to guide technicians through the setup process, ensuring proper operation and longevity of the transmission system.
Features:
- Includes main and countershaft gears, shift forks, and shafts pre-assembled to trap door for ease of installation
- Shift selector shaft included for seamless shifting operation
- Designed for Harley Davidson XLH models from 1957 to 1966, ensuring perfect fitment
- Requires separate purchase of right side case rollers, shims, and bearings for complete assembly
- Precise end play and trap door alignment necessary for optimal performance
Fitment:
Harley Davidson XLCH 1957
Harley Davidson XLCH 1958
Harley Davidson XLCH 1959
Harley Davidson XLCH 1960
Harley Davidson XLCH 1961
Harley Davidson XLCH 1962
Harley Davidson XLCH 1963
Harley Davidson XLCH 1964
Harley Davidson XLCH 1965
Harley Davidson XLCH 1966
Harley Davidson XLCH 1967
Harley Davidson XLCH 1968
Harley Davidson XLCH 1969
Harley Davidson XLH 1957
Harley Davidson XLH 1958
Harley Davidson XLH 1959
Harley Davidson XLH 1960
Harley Davidson XLH 1961
Harley Davidson XLH 1962
Harley Davidson XLH 1963
Harley Davidson XLH 1964
Harley Davidson XLH 1965
Harley Davidson XLH 1966
