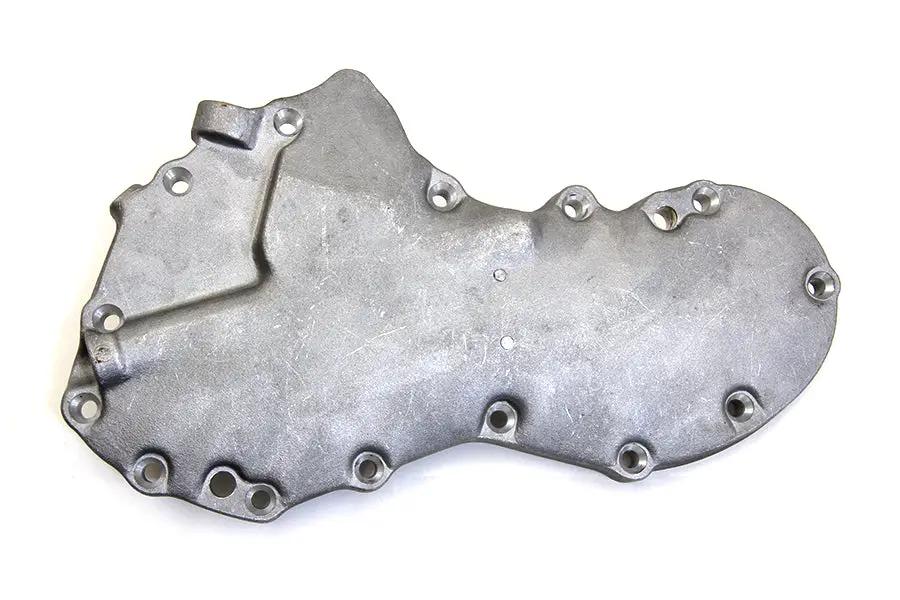

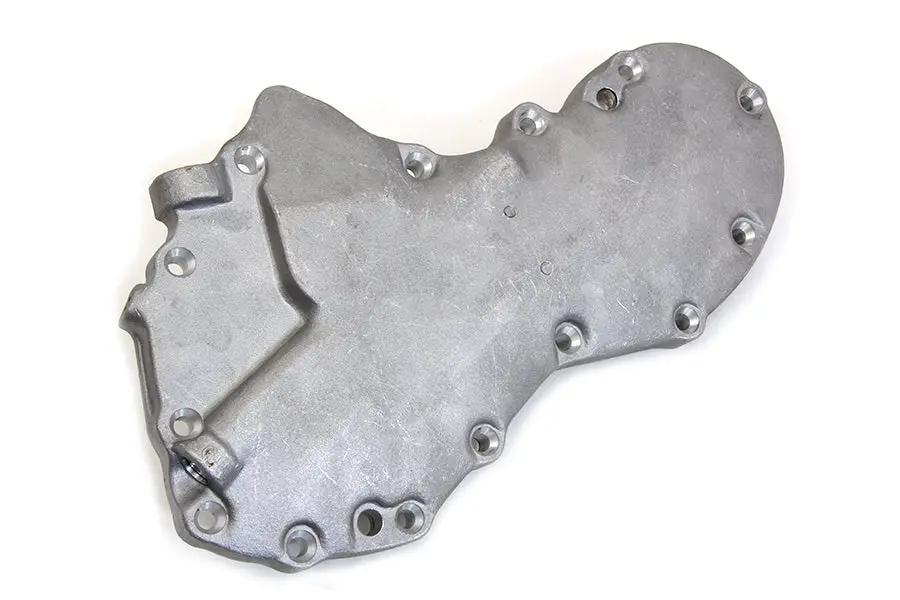

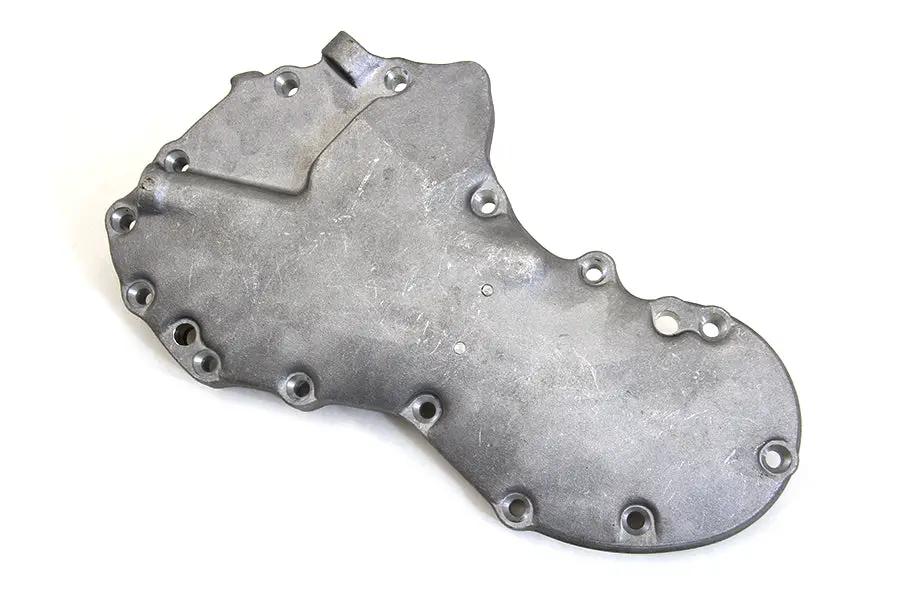

Motorshop Replica Cast Cam Cover 61ci For 1936 Harley EL

Authentic replica cast cam cover for the 61ci Harley‑Davidson EL (1936), reproducing the early unit’s look with a natural cast finish. Crafted with exclusive tooling from V‑Twin MFG, it features a cast‑in baffle and pre‑installed bushings and breather plate for straightforward installation. Molded in Taiwan, this cover is designed to match original specifications while accommodating modern restoration and custom builds.

• Authentic 1937–1939 type casting with a cast‑in baffle; exacting detail from Motorshop’s tooling.
• Pre‑installed bushings and breather plate for easier assembly and alignment.
• Compatible with 1936 Harley Davidson EL and other 1936–1947 models with 61in and 74in engines.
• Fits generator holes for 32E 6‑volt 2‑brush generators; screw hole sizes vary (1/4" or 5/16" depending on model year).
• Includes accessory items: 10-1626 - 8‑Finned Knucklehead Cam Cover Cast, and 51-1040 - Replica 1936 Knucklehead Frame.

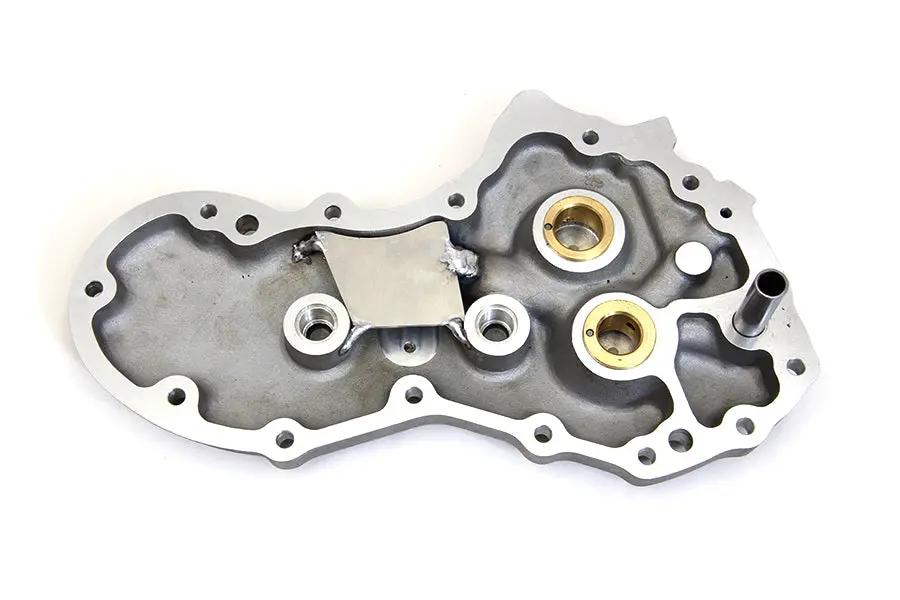

• The inside cavity is machined to original specs; two brass rivets on the outside can be added for a vintage Tedd Cycle appearance.
• Final fit requires reaming with the cover mounted on the right side case, reamed from the left side; ensure oil passages and feed holes remain clear and check screw head fit (deeper countersink may be needed).

Whether restoring an original or building a period‑accurate custom Harley, this cam cover delivers authentic aesthetics with reliable fitment to preserve the vintage Harley look.

Cast cover is an exact replica of the early 1936 61 inch EL models perhaps for the first 200 units made that year. Cover features natural cast finish as original!

This authentic replica cast cam cover from Motorshop is designed specifically for the 1936 Harley Davidson EL model, offering a perfect blend of vintage style and reliable fitment. Crafted with precision using exclusive tooling from V-Twin MFG, this cam cover features detailed castings that replicate the original 1937-1939 type with a cast-in baffle, ensuring an authentic look for your restoration or custom build. The cover is molded in Taiwan and includes bushings and a breather plate already installed, streamlining your installation process. It is essential to check the cam cover bushings and fit them (reamed) for a precise final assembly, along with verifying end play to ensure optimal engine performance. The oil passages and feed holes in the bushings must be clear for proper lubrication, and the tapered screw holes may require a deeper countersink—always check the screw head fit before installation. The inside cavity is designed to match the original specifications, and modifications such as adding two brass rivets on the outside can enhance the vintage appearance for an authentic Tedd Cycle look. Please note that the cover can also be used on 1936-1947 models with 61-inch and 74-inch Knuckleheads. When installing, final reaming should be performed with the cover mounted on the right side case, reamed from the left side for a proper fit. This cam cover is compatible with generator holes for 32E 6-volt 2-brush generators, with sizes varying between 1/4 inch and 5/16 inch depending on the model year. The product includes accessory items such as the 8-finned Knucklehead cam cover cast and a replica 1936 Knucklehead frame, making it a comprehensive choice for restoration enthusiasts and builders alike. Whether restoring an original or customizing your Harley, this cam cover provides an authentic appearance combined with durable craftsmanship to maintain the vintage Harley aesthetic.

Features:

• Authentic cast design replicates 1937-1939 type with cast-in baffle

• Made with exclusive tooling from V-Twin MFG for detail accuracy

• Pre-installed bushings and breather plate for easy installation

• Compatible with 1936 Harley Davidson EL and other 1936-1947 models with 61in and 74in engines

• Includes accessory items: 10-1626 - 8-Finned Knucklehead Cam Cover Cast, 51-1040 - Replica 1936 Knucklehead Frame

• Final reaming for fit to be completed with cover mounted on the right side case, reamed from the left side

• Designed to fit generator holes for 32E 6-volt 2-brush generators (1/4 inch or 5/16 inch depending on model)

Fitment:
Harley Davidson EL 1936
