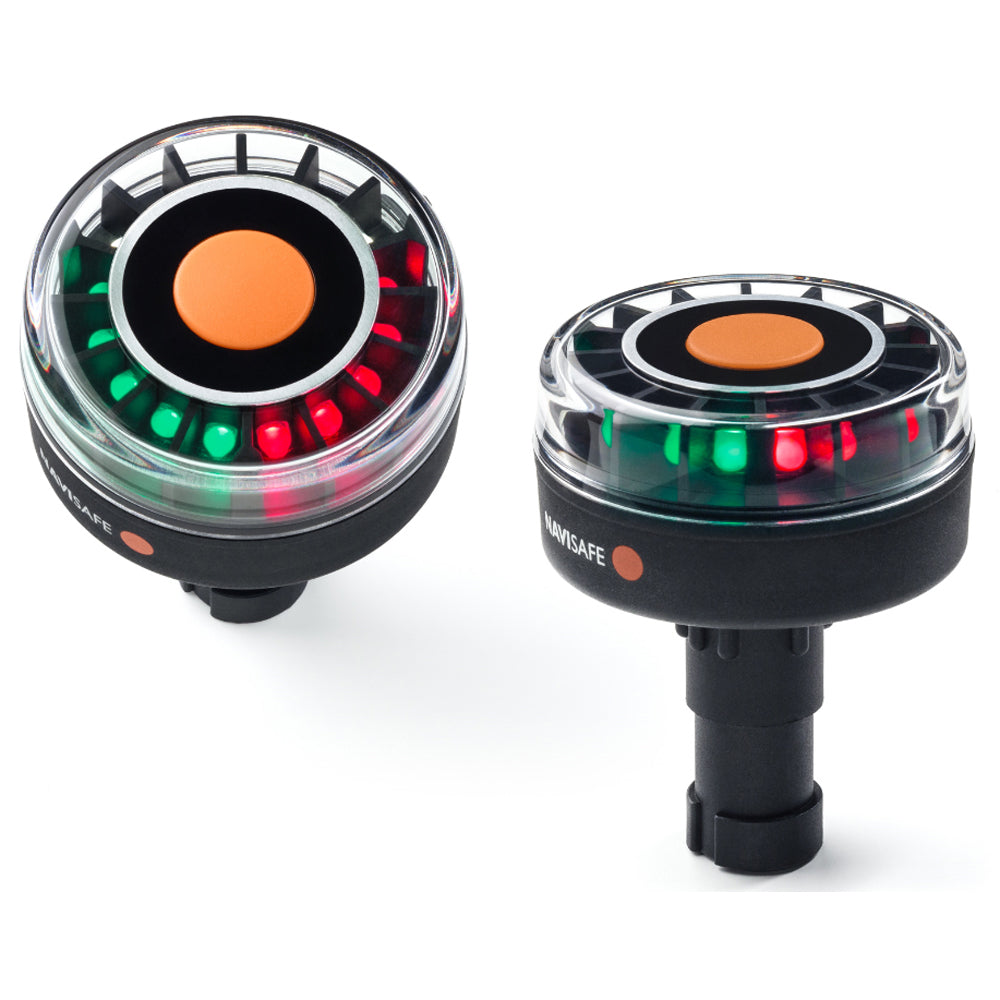

Navisafe Navilight Tricolor 2NM with Scotty Base – US Coast Guard Approved Marine Navigation Light

Navilight Tricolor 2NM with Scotty Base

Navilight Tricolor Scotty 2NM - US Coast Guard approved for 2 nautical miles is fully compatible with the Scotty Deck Mounting system and includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof and floats.

The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5 degrees. The white Sternlight shows an unbroken light over an arc of the horizon of 135 degrees. All lights work independently, in a combination of all three or red/green together.

Examples of usage, based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.

On a power-driven vessel of 12 meters or more in length but less than 50 meters in length:

• As green or red sidelight
• As sternlight

On a power-driven vessel of less than 12 meters in length:

• As green or red sidelight
• As combined green/red
• As sternlight

On a sailing vessel underway:

• As green or red sidelight
• As sternlight

On a sailing vessel of less than 20 meters in lengths as backup light:

• TriColor lantern at or near the top of the mast

Specifications:

• USCG Approval, 2 Nautical Miles
• 5 Modes: Tricolor Masthead light (135 white, 112,5 red, 112,5 green), BiColor side light, red side light, green side light, white Sternlight
• Floatable, waterproof (20 m) and air-tight
• For use with Scotty Flush Deck Mounting system
• Powered by three AAA batteries (not included)
• Size: H = 85 mm, O = 68 mm
• Weight (net): 91 g

Modes/Approximate Burn Time

• 16 green/red/white LED, 360 Tricolor lantern/12hrs
• 10 green/red LED, 225 Bi-Color sidelight/20hrs
• 5 green or 5 red LED, 112,5 sidelight/38hrs
• 6 white LED, 135 Sternlight/32hrs

Mounting System:

The Navilight Tricolor Scotty is designed to fit into the Scotty Deck Mounting system (Side/Deck Mounts, Flush Mounts) and requires no additional adapters.

The Navisafe Navilight Tricolor 2NM with Scotty Base is a versatile and reliable navigation light designed for marine vessels. Fully compliant with US Coast Guard standards and approved for 2 nautical miles visibility, this LED-powered navigation light ensures optimal visibility and safety during day and night operations. Its compatibility with the Scotty Deck Mounting system allows for easy installation on various deck configurations, making it ideal for power-driven and sailing vessels alike. The device features a tri-color masthead light, side lights in red and green, and a white sternlight, all operating independently or in combination to meet the requirements outlined in international navigation regulations. The waterproof, floatable, and air-tight design ensures durability and reliable performance even in harsh marine environments. Powered by three AAA batteries (not included), this light offers multiple modes, including a 135° white sternlight, 112.5° red and green sidelight, and a tri-color masthead light with a 360° viewing arc. Its compact dimensions and lightweight construction make it easy to handle and mount, providing a seamless integration with the Scotty system without the need for additional adapters. Whether used on vessels less than 20 meters or more than 12 meters long, this navigation light is suitable for various types of marine craft, ensuring compliance with safety standards and enhancing navigational safety during every voyage. The long-lasting LED bulbs deliver extended burn times, with up to 20 hours of continuous operation on the sidelight modes and over 12 hours for the tri-color lantern, offering reliable performance over extended periods at sea. Its robust construction and waterproof features guarantee resilience against water ingress and exposure to the elements, making it a dependable choice for professional and recreational mariners alike.

Features:

• US Coast Guard approved for 2 nautical miles visibility

• Fully compatible with Scotty Deck Mounting system for easy installation

• Includes tri-color masthead, side (red and green), and white sternlights

• Independently operable lights with multiple mode options

• Waterproof, floatable, and air-tight design ensures durability in harsh marine conditions

• Powered by three AAA batteries (not included) with extended burn times

• Compact size with a lightweight build for easy handling and mounting

• Multiple modes including tri-color, bi-color, and sternlight for various vessel types

• Designed for vessels less than 50 meters and as backup on smaller boats

• Durable LED lighting with long operational hours for extended sea voyages
