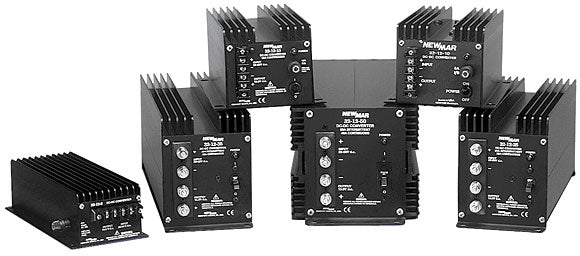

Newmar 32-12-25 DC-DC Converter 20-50VDC To 13.6 Vdc @ 25A

Newmar 32-12-25 DC-DC Converter 20-50VDC To 13.6 Vdc @ 25A

Newmar 32-12-25 25 Amp DC-DC Converter

• Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating.


• Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components.


• Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments.


• Numerous converter and load protection circuits:


• Current limiting


• Automatic thermal shutdown


• Short circuit proof


• Reverse polarity


• Overvoltage protection


• Carries CE mark

Convert 20-50 VDC input to 12 negative ground output for powering communication/navigation equipment, on negative ground systems. (See Isolated Series, for positive ground applications.) Ideal for powering voice, data and navigation electronics in marine applications.

Input voltage
20-50

Output voltage
13.6

Output Amps Intermittent
25

Output Amps Continuous
20

Dimensions H x W x D
6 x 4.7 x 14
