Newmar BB-5 Buss Bar

Newmar BB-5 Buss Bar: Efficient Power Distribution Solution

Newmar BB-5 Buss Bar

• Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16" studs on 1" centers in 1/4" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16" ring terminals.
• One combination model features two 5/16" studs and eight #8 screws, accommodating multiple size wire terminals.
• All bus material is nickel-plated copper.
• A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
• The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.

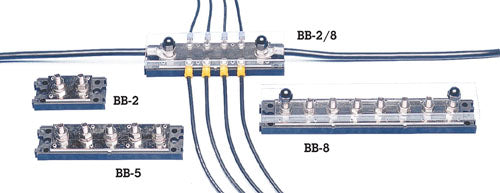

Model Qty. of 5/16" Studs Base Size BB-2 2 3 1/16" x 1 1/2" BB-2/8 2 plus 8 - #8 screws 6 1/16" x 1 1/2" BB-5 5 6 1/16" x 1 1/2" BB-8 8 9 1/16" x 1 1/2"

Overview of the Newmar BB-5 Buss Bar

The Newmar BB-5 Buss Bar is designed to provide a reliable and efficient electrical distribution system for various applications. Known for its durable construction and superior conductivity, this buss bar is an essential component for managing power in environments such as recreational vehicles and marine settings. Its compact design allows for easy integration into electrical panels, ensuring organized and safe wiring arrangements. The Newmar BB-5 Buss Bar’s robust build contributes to long-lasting performance, making it a preferred choice for professionals seeking dependable power distribution solutions.

Key Features and Specifications

The Newmar BB-5 Buss Bar boasts several important features that enhance its functionality. Constructed from high-quality copper, it offers excellent electrical conductivity and corrosion resistance. The buss bar includes pre-drilled holes for straightforward installation and compatibility with various wiring sizes. Its design helps prevent overheating and ensures consistent current flow throughout the system. These specifications make the Newmar BB-5 Buss Bar a trustworthy and efficient component, ideal for ensuring stable power delivery and reducing maintenance complications.

Applications and Benefits

This buss bar is widely used in RVs, boats, and industrial electrical panels where centralized power distribution is critical. The Newmar BB-5 Buss Bar helps streamline wiring setups by consolidating multiple connections into a single point, minimizing clutter and improving safety. Additionally, its robust construction reduces potential electrical faults, leading to increased system reliability. Users benefit from easier troubleshooting and enhanced electrical system performance, making the Newmar BB-5 Buss Bar an indispensable part of modern electrical infrastructure.
