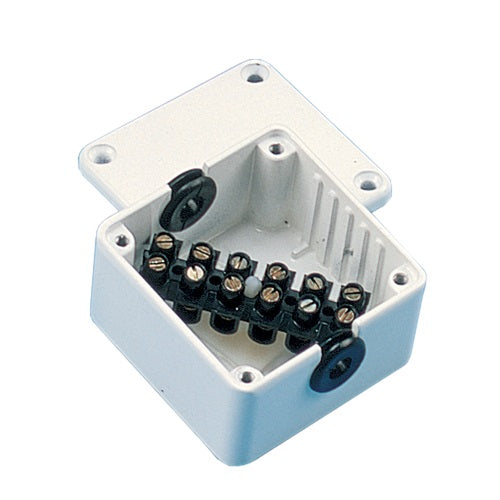

Newmar BX-1 Junction Box

Newmar BX-1 Junction Box

Newmar BX-1 Splash Proof Box

• Provides for secure, protected wiring connections in wheel house or below decks and engine rooms. IP rating 54 — "Splashproof"


• Rugged cast aluminum box with white enamel finish


• Metal box reduces electrical interference


• Easy wiring access through multiple grommeted cable entries


• Supplied with high quality connector strips — secure wires with compression fittings — no terminals required — see matrix below for connector strips specifications per box

Number of Connector Strips
1

Positions per Strip
6

Max Wire Gauge
16

Max Amps (per position)
6

Cable Entries
2

Cable Diameter
.25in

Box Size (inches)
2 x 2 x 1.2

Box Size (cm)
5.1 x 5.1 x 3.1

What's in the Box:

• Aluminum box


• 6-Position Connector Strip
