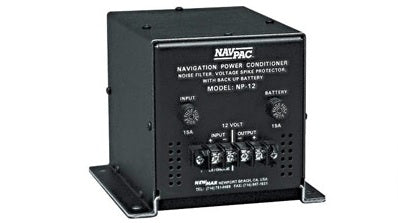

Newmar NP-12 Nav Pak

Newmar NP-12 Nav Pak

Newmar Nav-Pac 12v DC UPS

• Prevents voltage "drop-out" during engine start and/or other high intermittent loads such as Thrusters


• Absorbs line "spikes"


• Filters out electrical interference


• Provides supplemental voltage/battery back-up for up to 15 min.

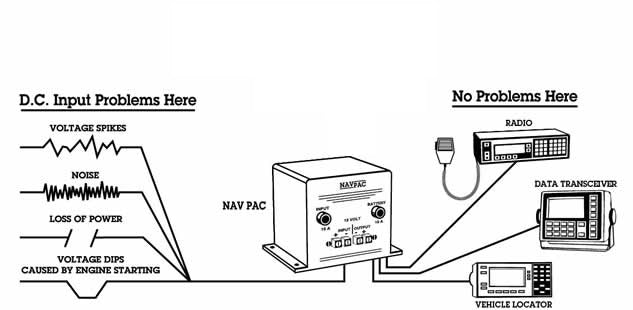

Marine communication/navigation electronics such as programmable data transceivers, GPS and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drop from engine start, noise and line spikes from alternators and motors, and conducted noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.

Output
12 Volt @ 20 amps max.

Dimensions
5.25 x 6.2 x 7.4

Battery

Type
Sealed Rechargeable 5.0 Amp-Hour

Life
5-7 years

Noise Filtering
Audio through 200 MHZ

Voltage Spike Protection
Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 micro seconds)

Back up Power @ 12v

8A Draw
15 Minutes

12A
8 Minutes

18A
2 Minutes

20A
1 Minute
