This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.
Features:
Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
Thermally activated cooling fan on CD units
Specifications:
Nominal Input/VAC: 115/230
Maximum Input Current @115: 5.5
Maximum Input Current @230: 2.5
Output Amperage (Intermittent): 10
Output Amperage (Continuous): 4
Weight: 20 lbs. / 9.1 kg
Case Size:
H x W x D (inch): 5.7 x 4.8 x 16.3
Input Range
105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC
Operating Temperature
C.D. Units- 0-65 degrees C, Derate linearly from 100% @ 50 degrees C to 50% @ 65 degrees C thermal Shutdown @ 85 degrees C case temperature
Duty Cycle:
Intermittent: 20 minutes max on time, 20% duty
Continuous: 24 hours/day 100% Duty
Options:
Modify for use as a battery charger
The output voltage is adjusted (see Output Voltage for range)
Transfer relay for back-up battery in event of power failure (ERC option)
Output Voltage:
24.5 VDC (Internally adjustable 21-27.5 VDC)
Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
1% Line and Load (@ 110-125 / 220-250 VAC input)
Mechanical:
Powder-coated aluminum heat sink case
Front panel terminal block
Heavy-duty mounting flange
Conformal-coated PC board
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

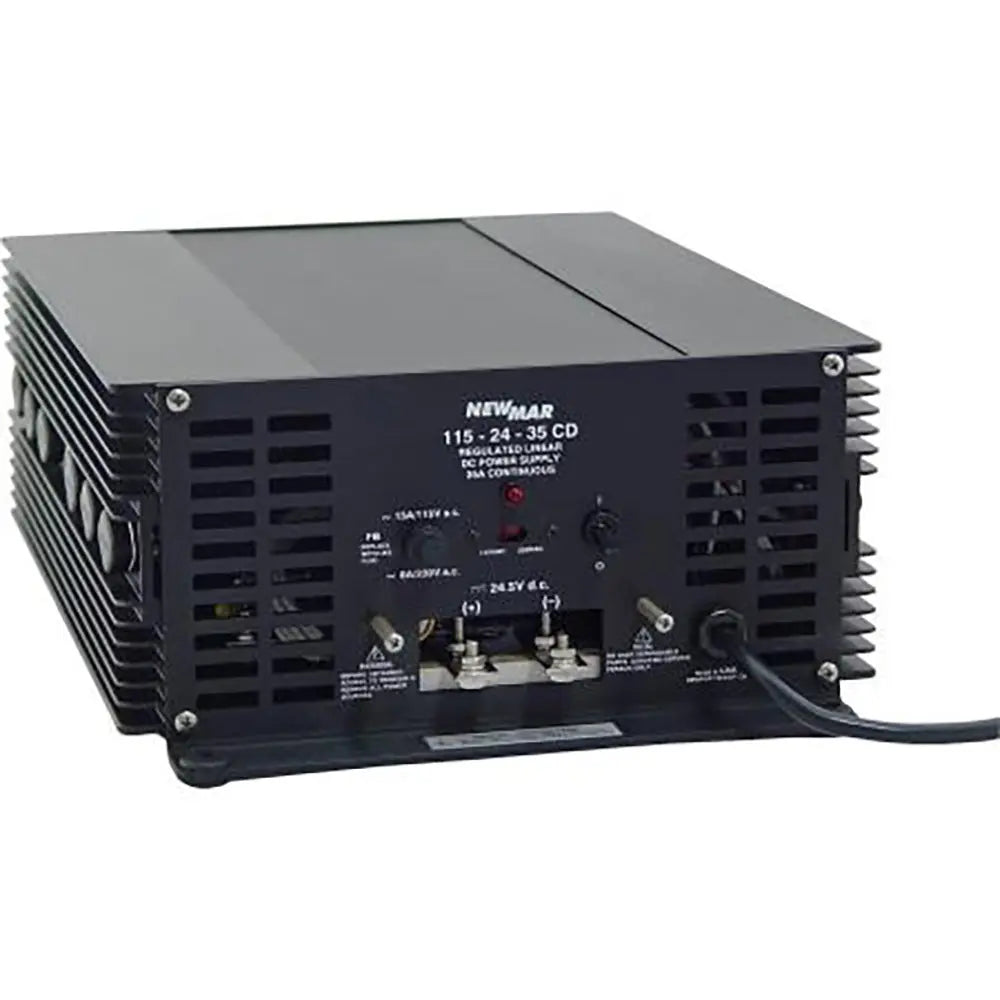

The Newmar Power 115-24-35CD is a rugged 24-volt DC power supply designed specifically for marine communication and navigation systems onboard commercial vessels where reliability and durability are critical. Its proven linear circuit design ensures a pure, noise-free output with excellent regulation, maintaining voltage within 1% under all rated line and load conditions. The heavy-duty aluminum case, conformally coated circuit board, and shock-mount features enable it to perform reliably in harsh marine environments, resisting corrosion and mechanical shocks. The unit features efficient heat dissipation through large heat sink fins, ensuring cool operation even during extended use. Built-in protection mechanisms include overvoltage, current limiting set at 105% of intermittent ratings, thermal overload, and input/output fusing, enhancing operational safety and longevity. The thermally activated cooling fan further maintains optimal operating temperatures, making it suitable for continuous duty cycles and demanding applications.
Features:
Excellent regulation and ripple specifications ensure stable voltage output within 1%
Corrosion-resistant heavy-duty aluminum case with shock mounts for durability in hostile environments
Efficient heat dissipation with large heat sink fins for reliable operation
Protection features include overvoltage, current limit, thermal overload, and input/output fusing
Thermally activated cooling fan for enhanced thermal management
