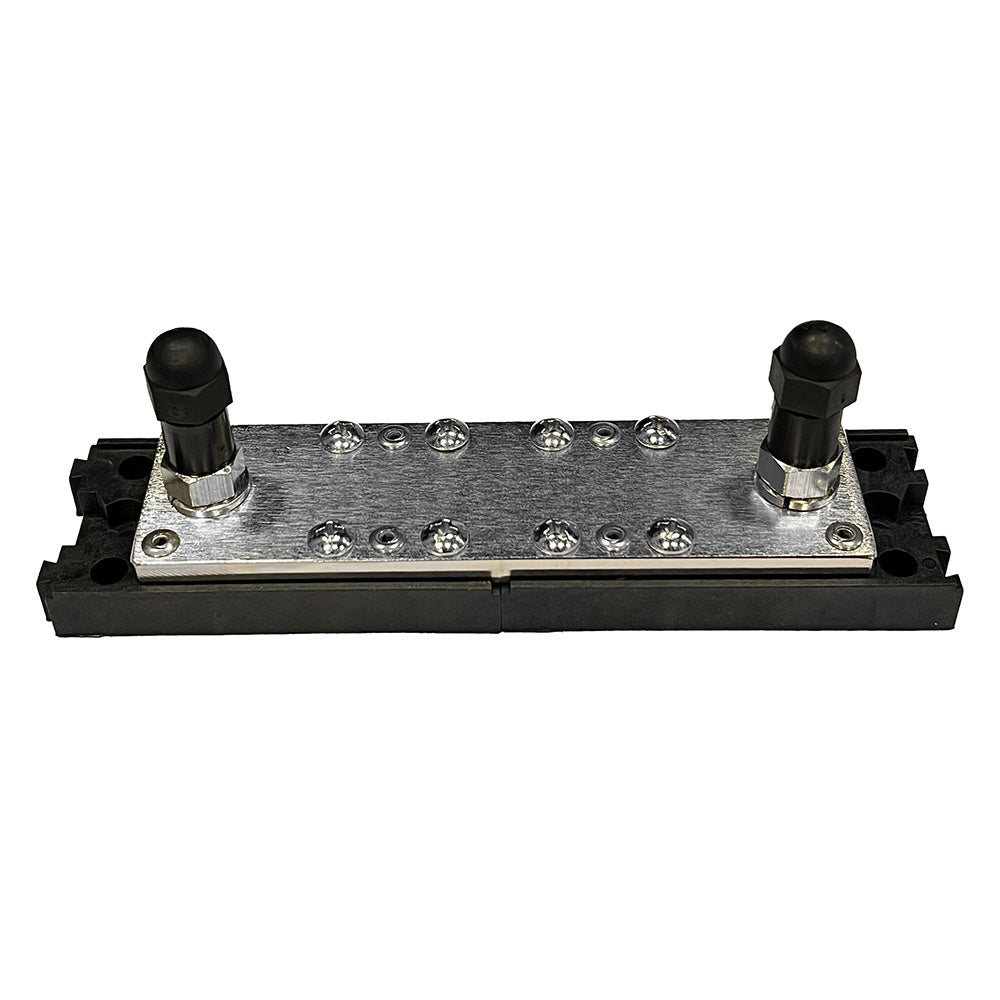

Newmar Power BB-2/8 Heavy-Duty 500-Amp Copper Bus Bar for DC Ground and Power Distribution

BB-2/8 Bus Bar

Ideal as a DC ground tie point or positive bus, this heavy-duty, 500-amp-rated bus bar assembly features 5/16 in. studs on 1 in. centers in 1/4 in. thick copper bar for common connection or distribution of large wire gauges.

Features:

• Accommodate 5/16" ring terminals
• Insulated base (reinforced nylon resin with a clear protective cover)

Specifications:

• Quantity of 5/16" Studs: 2 plus 8 #8 screws
• Size (inches): 6-1/16 x 1-1/2

The Newmar Power BB-2/8 Bus Bar is a robust and versatile component designed for high-current electrical connections in various applications. Crafted from durable 1/4-inch thick copper, this bus bar provides excellent conductivity and mechanical strength, making it suitable as a DC ground tie point or positive bus in electrical systems. Its heavy-duty construction supports a maximum rating of 500 amps, ensuring reliable performance under demanding conditions. The assembly features five 5/16-inch studs on 1-inch centers, allowing for secure connections of large wire gauges or multiple circuit terminations. The included 5/16-inch ring terminals facilitate quick and reliable attachment, while the insulated base, made of reinforced nylon resin with a clear protective cover, provides added safety and prevents accidental shorts or contact with conductive surfaces.
