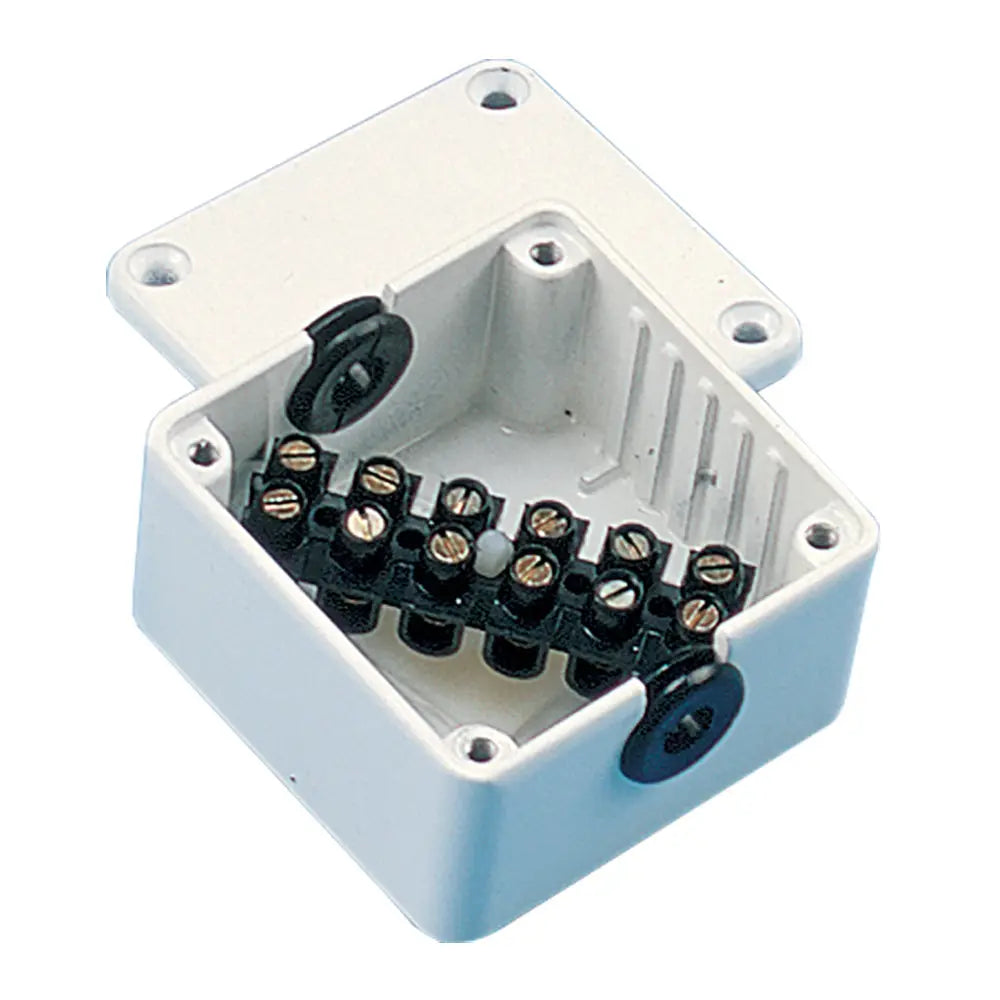

Newmar Power BX-1 Splashproof Junction Box for Secure Marine Wiring

BX-1 Junction Box

This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.

Features:

• IP rating 54 Splashproof
• Rugged cast aluminum box with white enamel finish
• Metal box reduces electrical interference
• Easy wiring access through multiple grommeted cable entries
• Supplied with high-quality connector strips secure wires with compression fittings no terminals required see matrix below for connector strips specifications per box

Specifications:

• Number of Connector Strips: 1
• Positions per Strip: 6
• Max Wire Gauge: 16
• Max Amps (per position): 6
• Cable Entries: 2
• Cable Diameter: 0.25 in.
• Box Size: 2 x 2 x 1.2 in.
• Box Size: 5.1 x 5.1 x 3.1 cm

The Newmar Power BX-1 Junction Box is a durable and reliable solution designed for secure wiring connections in marine environments. Crafted from rugged cast aluminum with a sleek white enamel finish, this splashproof enclosure offers excellent protection against water and environmental elements, making it ideal for wheelhouses, below decks, and engine rooms. Its IP54 rating ensures reliable performance even in challenging conditions, safeguarding your electrical connections from splashes and dust. The box features two cable entries with grommeted openings that facilitate easy wiring access and help maintain the enclosure's protective integrity. The inclusion of high-quality connector strips with compression fittings allows for secure, terminal-free wiring, simplifying installation and maintenance.

Measuring approximately 4 inches square with a height of just over 1 inch, the BX-1 provides ample space for wiring while maintaining a compact footprint. Each connector strip inside the enclosure has six positions, supporting wires up to 16 AWG and a maximum current of 6 amps per position. This makes the junction box suitable for various electrical applications, particularly in marine or RV settings where reliable and protected connections are crucial. The metal construction significantly reduces electrical interference, ensuring stable and consistent electrical performance. Its design emphasizes ease of use, with multiple cable entries and straightforward wiring access, making it a practical choice for both professional installers and DIY enthusiasts.

Whether you need a dependable junction point for your boat, RV, or other vehicle, the Newmar Power BX-1 Junction Box offers robust protection and effective wiring management. Its solid build quality, combined with thoughtful features such as compression fittings and multiple cable entries, ensures long-lasting performance in demanding environments. Invest in this high-quality junction box to ensure your electrical connections remain secure, protected, and efficient over time.

Features:

• IP54 splashproof rating provides protection against water and dust

• Rugged cast aluminum enclosure with a white enamel finish for durability and corrosion resistance

• Metal construction reduces electrical interference for stable performance

• Multiple grommeted cable entries enable easy wiring access and maintain enclosure integrity

• Includes high-quality connector strips with compression fittings for secure wiring without terminals
