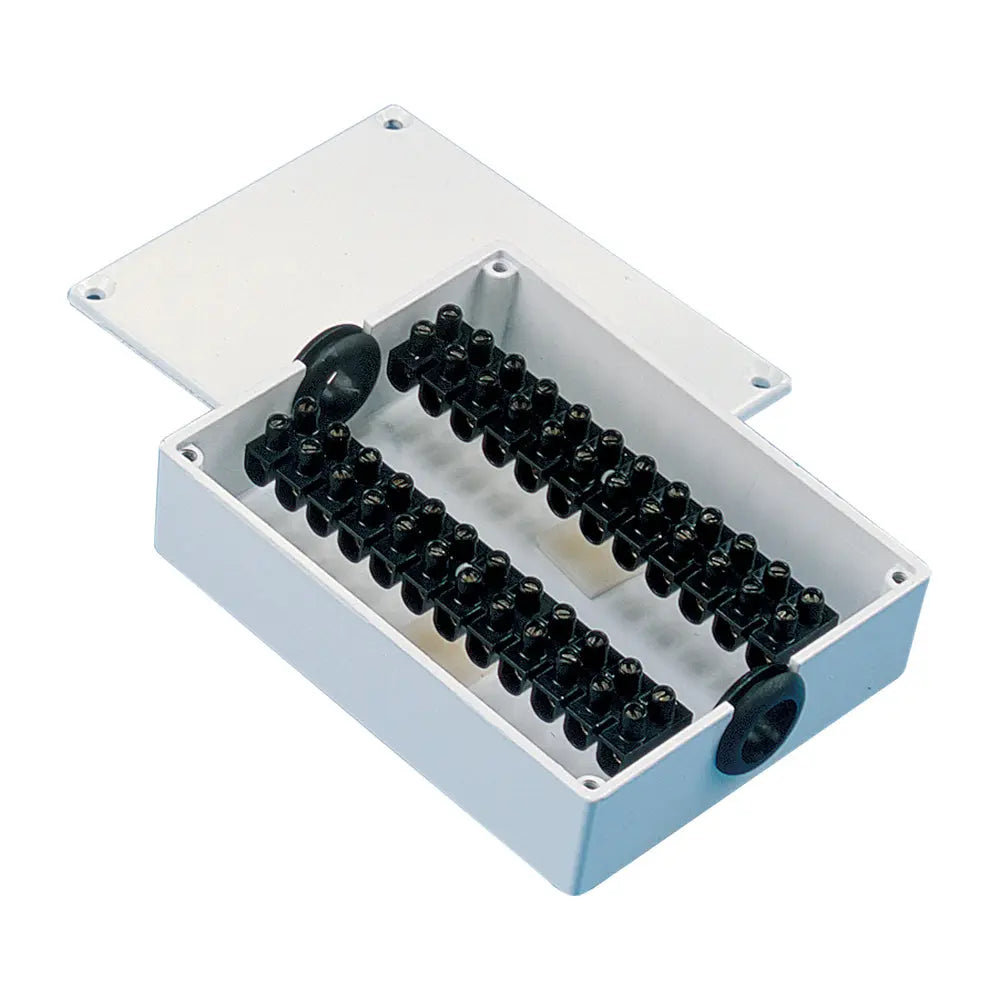

Newmar Power BX-3 Junction Box – Splashproof Aluminum Electrical Enclosure for Marine and Industrial Applications

BX-3 Junction Box

This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.

Features:

• IP rating 54 Splashproof
• Rugged cast aluminum box with white enamel finish
• Metal box reduces electrical interference
• Easy wiring access through multiple grommeted cable entries
• Supplied with high-quality connector strips secure wires with compression fittings no terminals required see matrix below for connector strips specifications per box

Specifications:

• Number of Connector Strips: 2
• Positions per Strip: 11
• Max Wire Gauge: 14
• Max Amps (per position): 10
• Cable Entries: 2
• Cable Diameter: 0.59 in.
• Box Size: 4.7 x 3.7 x 1.3 in.
• Box Size: 11.9 x 9.4 x 3.3 cm

The Newmar Power BX-3 Junction Box is a robust and reliable solution designed for secure wiring connections in demanding environments such as wheelhouses, below decks, and engine rooms. Constructed from rugged cast aluminum with a durable white enamel finish, this splashproof enclosure offers an IP54 rating, providing protection against water splashes and dust ingress. Its sturdy metal construction helps reduce electrical interference, ensuring stable and safe operation for your electrical systems.
The BX-3 features multiple grommeted cable entries, facilitating easy wiring access and versatile installation options. It is supplied with high-quality connector strips that secure wires with compression fittings, eliminating the need for terminals and simplifying the wiring process. Each connector strip accommodates up to 11 positions, with a maximum wire gauge of 14 AWG and a current capacity of 10 amps per position, making this junction box suitable for various electrical configurations.
The compact size of approximately 4.7 inches long, 3.7 inches wide, and 1.3 inches tall allows for flexible placement in tight spaces while maintaining high performance and durability. Whether used in marine, industrial, or other harsh environments, the Newmar Power BX-3 Junction Box provides a secure, splashproof connection point that ensures safety and reliability for your wiring needs.

Features:

• IP54 splashproof rating protects against water splashes and dust

• Rugged cast aluminum enclosure with a white enamel finish for durability

• Metal box reduces electrical interference for stable operation

• Multiple grommeted cable entries allow for easy wiring access

• Includes high-quality connector strips with compression fittings for secure wiring
