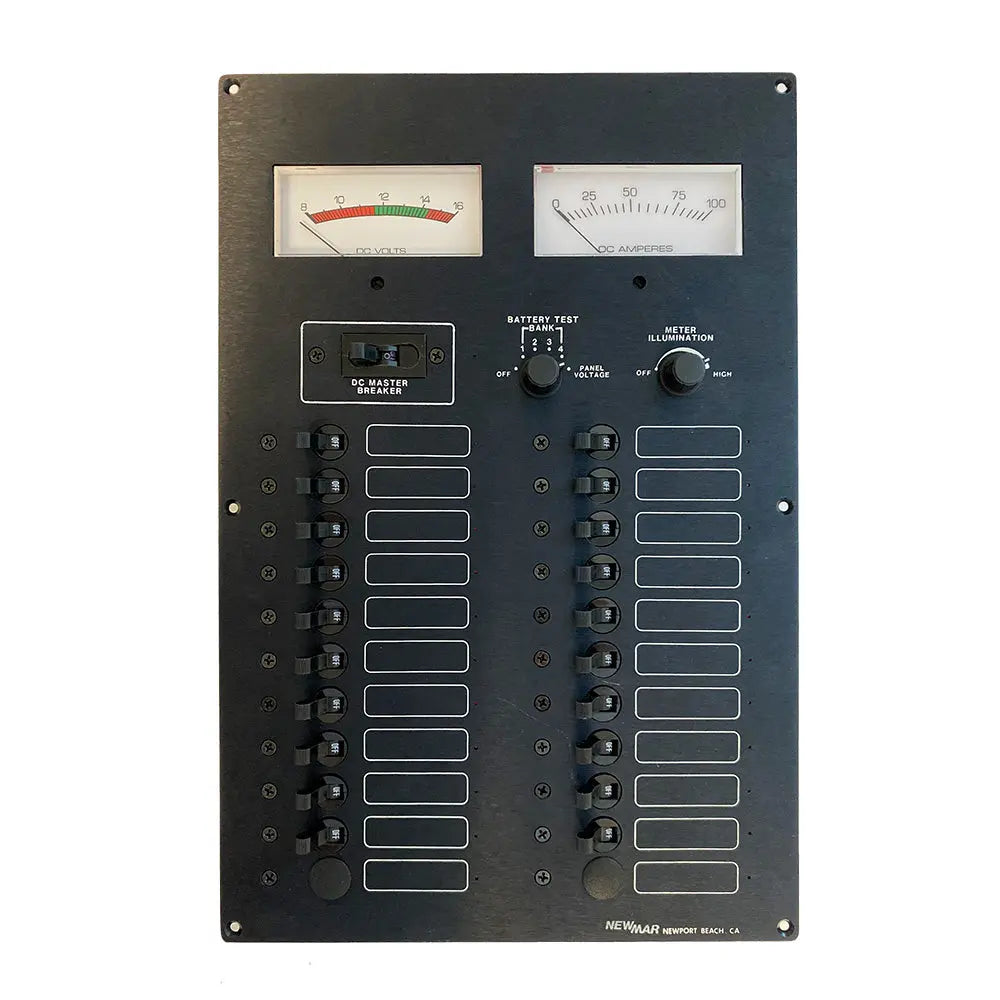

Newmar Power ES-1 Elite DC Panel - High Capacity Control System for Marine and RV Applications

ES-1 Elite DC Panel

This DC master control panel offers a large DC circuit capacity and can be installed by itself or in conjunction with the ES-2 panel to make a complete AC-DC control and monitoring system.

Features:

• Analog DC volt and ammeter, back-illuminated with dimmer
• 12-volt standard, 24-volt optional
• 4 battery bank test switch
• DC master breaker (100 Amp standard; 50 or 75 amp optional)
• 22 branch circuit capacity, 20 installed standard; 3-5A, 5-10A, 6-15A,
• 6-20A or specify

Specifications:

• Size (W x H x D): 10 x 15 x 4 inches
• Weight: 8 lbs. (3.6 kg)

The Newmar Power ES-1 Elite DC Panel is a versatile and robust control system designed for managing DC power in marine, RV, and off-grid applications. This panel features a large DC circuit capacity, allowing users to efficiently handle multiple circuits and battery banks within a compact footprint. Its versatile design enables installation as a standalone unit or integrated with the ES-2 panel to create a comprehensive AC-DC control and monitoring system, providing flexibility to suit various power management needs.
The ES-1 panel includes an analog DC voltmeter and ammeter with backlighting and a dimmer control, ensuring clear visibility of system status under different lighting conditions. It supports standard 12-volt systems with an optional 24-volt configuration, making it adaptable to different power setups. The panel is equipped with four battery bank test switches, allowing quick and easy testing of individual banks to ensure optimal performance. A DC master breaker rated at 100 amps is included as standard, with options for 50 or 75 amps to match specific system requirements.
With an impressive capacity for up to 22 branch circuits, the ES-1 panel comes with 20 circuits installed as standard, supporting various current ratings from 3 to 20 amps, including 3-5A, 5-10A, 6-15A, and 6-20A circuits. This extensive circuit capacity makes it suitable for complex power distribution setups, ensuring reliable operation and easy expansion. Its compact size, measuring approximately 10 inches wide, 15 inches high, and 4 inches deep, combined with a weight of just 8 pounds, makes installation straightforward in tight spaces without sacrificing performance or durability.
Constructed by Newmar Power, the ES-1 Elite DC Panel is engineered for durability and ease of use, providing a reliable solution for managing DC power in demanding environments. Its design emphasizes safety, expandability, and clear system monitoring, making it an ideal choice for professional installations seeking a high-capacity, flexible control panel for DC power systems.

Features:

• Analog DC voltmeter and ammeter with backlighting and dimmer

• Supports standard 12-volt systems with an optional 24-volt configuration

• Includes four battery bank test switches for easy system testing

• DC master breaker rated at 100 amps, with options for 50 or 75 amps

• Supports up to 22 branch circuits, with 20 circuits installed as standard

• Circuit ratings range from 3A to 20A, supporting diverse power loads

• Compact size measuring approximately 10 x 15 x 4 inches

• Lightweight design at 8 pounds for easy installation and handling

• Designed for standalone use or integration with ES-2 panel for comprehensive control
