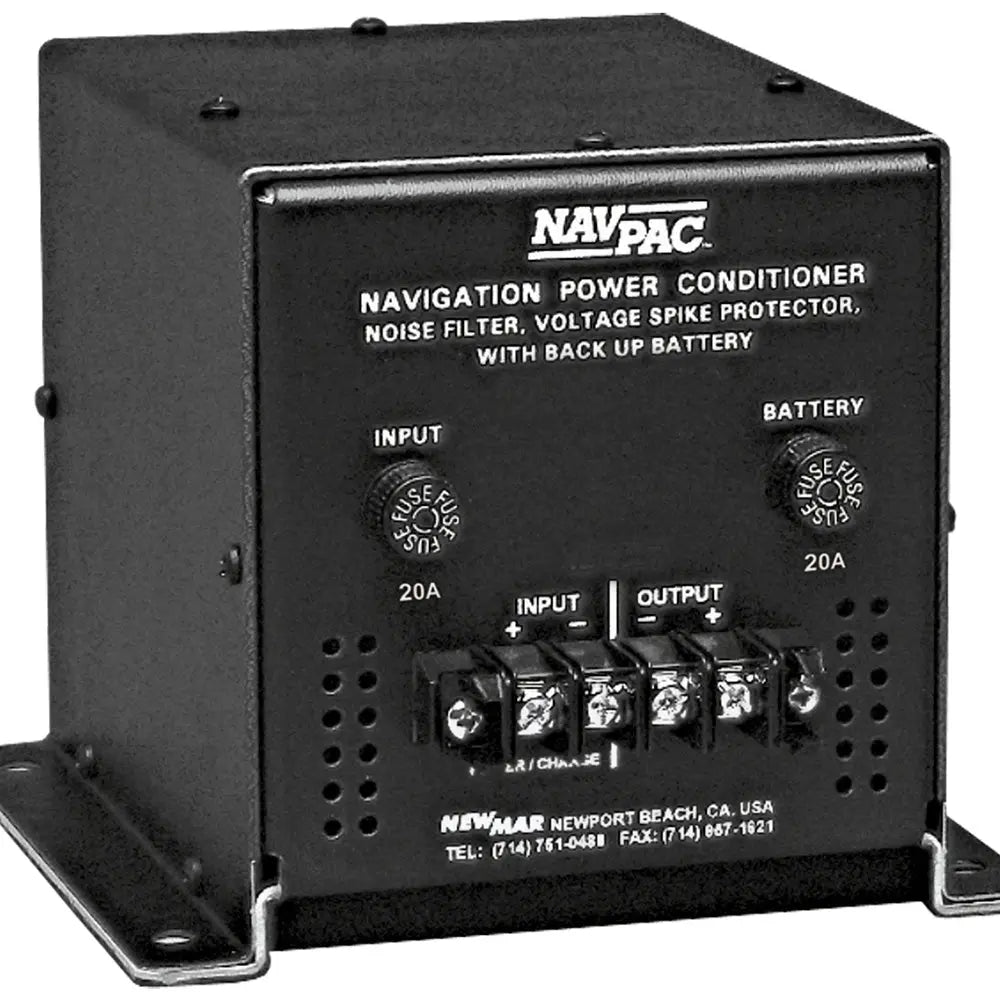

Newmar Power NP-12 Nav-Pac 12V Marine Power Conditioner and Battery Backup

NP-12 Nav-Pac - 12V

Marine communication and navigation electronics such as programmable data transceivers, GPS, and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drops from engine starts, noise and line spikes from alternators and motors, and noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.

Features:

• Prevents voltage drop-out during engine start and/or other high intermittent loads such as Thrusters
• Absorbs line spikes
• Filters out electrical interference
• Provides supplemental voltage and battery backup for up to 15 min.
• Optional remote panel (773-5037-0)

Specifications:

• Output: 12 Volt @ 20 amps max.
• Battery: Sealed Rechargeable 5.0 Amp-Hour, 5-7 years of typical life, can be replaced. A low-voltage disconnect circuit protects the battery from total discharge. Certified by DOT and IATA for shipment by air.
• Noise Filtering: Audio through 200 MHZ
• Voltage Spike Protection: Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 microseconds)
• Back-Up Power: 8A for 15 minutes, 12A for 8 minutes, 18A for 2 minutes, and 20A for 1 minutes
• Size: 5.25 x 6.2 x 7.4 inches (13.3 X 15.7 X 18.8 cm)
• Weight: 5.9 lbs. (2.7 kg)

The Newmar Power NP-12 Nav-Pac is a vital marine electronic accessory designed to ensure clean, stable power for sensitive navigation and communication equipment. Its advanced circuitry stabilizes voltage, preventing drops during engine starts and high intermittent loads like thrusters. It also absorbs line spikes and filters out electrical interference, safeguarding your microprocessor-controlled devices from damaging power fluctuations. The NP-12 provides a reliable 12-volt output at up to 20 amps, making it suitable for a variety of marine electronics.

Equipped with a sealed rechargeable 5.0 Amp-Hour battery, the Nav-Pac offers a backup power supply for up to 15 minutes, ensuring continuous operation during power disruptions. Its low-voltage disconnect circuit protects the battery from over-discharge, extending its service life, which typically ranges from 5 to 7 years. The unit features transient energy protection with a capacity of 100 Joules and a maximum surge current of 4,000 amps, effectively shielding your electronics from voltage spikes. Its audio noise filtering capability extends up to 200 MHz, contributing to clearer signals and improved device performance.

Designed with marine environments in mind, the NP-12 is compact and lightweight, measuring approximately 5.25 inches wide, 6.2 inches deep, and 7.4 inches tall, and weighing around 5.9 pounds. It includes an optional remote panel for added convenience, allowing easy monitoring and control. Certified for air shipment by DOT and IATA, this power conditioner is built to meet rigorous safety standards. Whether you’re upgrading your vessel’s electrical system or installing new navigation electronics, the Newmar Power NP-12 Nav-Pac offers a robust solution for maintaining consistent and protected power supply in demanding marine conditions.

Features:

• Prevents voltage drop-out during engine start and high intermittent loads

• Absorbs line spikes to protect connected electronics

• Filters electrical interference for clearer signals

• Provides supplemental voltage and battery backup for up to 15 minutes

• Includes optional remote control panel for ease of use

• Certified for safe air shipment by DOT and IATA
