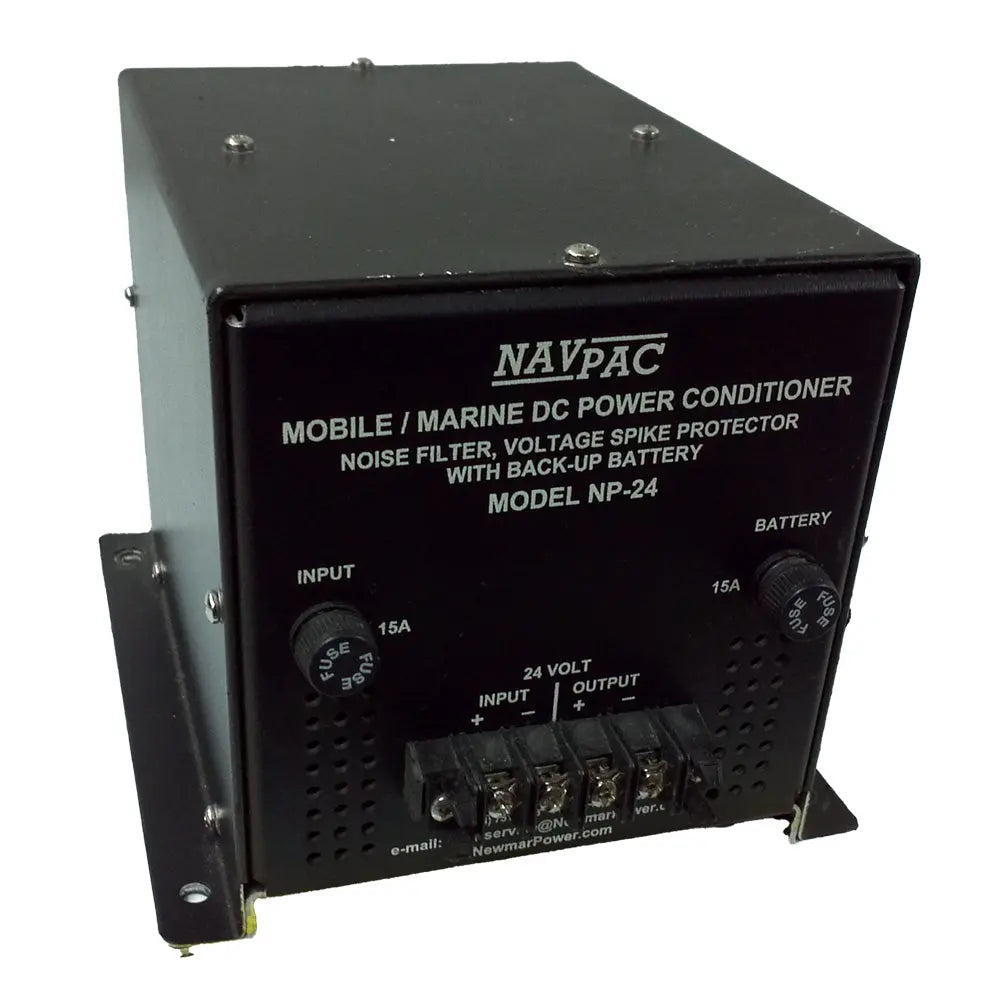

Newmar Power NP-24 Nav-Pac 24V Marine Power Conditioner and Battery Backup System

NP-24 Nav-Pac - 24V

Marine communication and navigation electronics such as programmable data transceivers, GPS, and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drops from engine starts, noise and line spikes from alternators and motors, and noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.

Features:

• Prevents voltage drop-out during engine start and/or other high intermittent loads such as Thrusters
• Absorbs line spikes
• Filters out electrical interference
• Provides supplemental voltage and battery backup for up to 15 min.
• Optional remote panel (773-5037-0)

Specifications:

• Output: 24 Volt @ 15 amps max.
• Battery: Sealed Rechargeable 5.0 Amp-Hour, 5-7 years of typical life, can be replaced. A low-voltage disconnect circuit protects the battery from total discharge. Certified by DOT and IATA for shipment by air.
• Noise Filtering: Audio through 200 MHZ
• Voltage Spike Protection: Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 microseconds)
• Back-Up Power: 8A for 15 minutes, 12A for 8 minutes, and 18A for 2 minutes
• Size: 6.0 x 6.75 x 7.5 inches (13.3 X 17.14 X 19 cm)
• Weight: 8 lbs. (3.6 kg)

The Newmar Power NP-24 Nav-Pac is a reliable 24-volt marine power conditioning device designed to ensure stable and clean electrical power for critical navigation and communication electronics. Marine systems such as GPS units, programmable transceivers, and microprocessor-controlled devices demand an uninterrupted power supply to function accurately. This unit effectively prevents voltage drops during engine startups and high intermittent loads like thrusters, safeguarding sensitive electronics from potential damage caused by power fluctuations. It features advanced noise filtering capabilities, absorbing line spikes and filtering out electrical interference, which enhances the overall performance and longevity of your onboard electronics.
The Nav-Pac offers a built-in backup power system, providing up to 15 minutes of supplemental voltage during outages, thus maintaining essential operations during unforeseen power interruptions. Its robust design includes transient energy protection of 100 Joules and a maximum current capacity of 15 amps, ensuring resilience against power surges and spikes common in marine environments. The system incorporates a sealed rechargeable battery with a typical lifespan of 5-7 years, protected by a low-voltage disconnect circuit to prevent complete battery discharge, and is certified for air shipment by DOT and IATA. An optional remote panel is available for convenient monitoring and control.
Measuring approximately 6 inches in length, 6.75 inches in width, and 7.5 inches in height, the Nav-Pac is compact yet powerful, weighing around 8 pounds. Its noise filtering extends up to 200 MHz, providing clear and interference-free audio signals, which is critical for marine navigation and communication. Designed for ease of installation and durability, the NP-24 Nav-Pac is an essential component for maintaining reliable electrical systems onboard, ensuring your marine electronics operate smoothly and safely in all conditions.

Features:

• Prevents voltage drop-out during engine start and high intermittent loads such as thrusters

• Absorbs line spikes to protect sensitive electronics

• Filters out electrical interference for clearer signals

• Provides up to 15 minutes of backup power during outages

• Includes a sealed rechargeable battery with a 5-7 year lifespan

• Low-voltage disconnect circuit safeguards battery health

• Transient energy protection of 100 Joules and 4,000 amps maximum

• Compact size suitable for marine installations

• Optional remote panel for enhanced monitoring and control

• Certified for safe shipment by DOT and IATA
