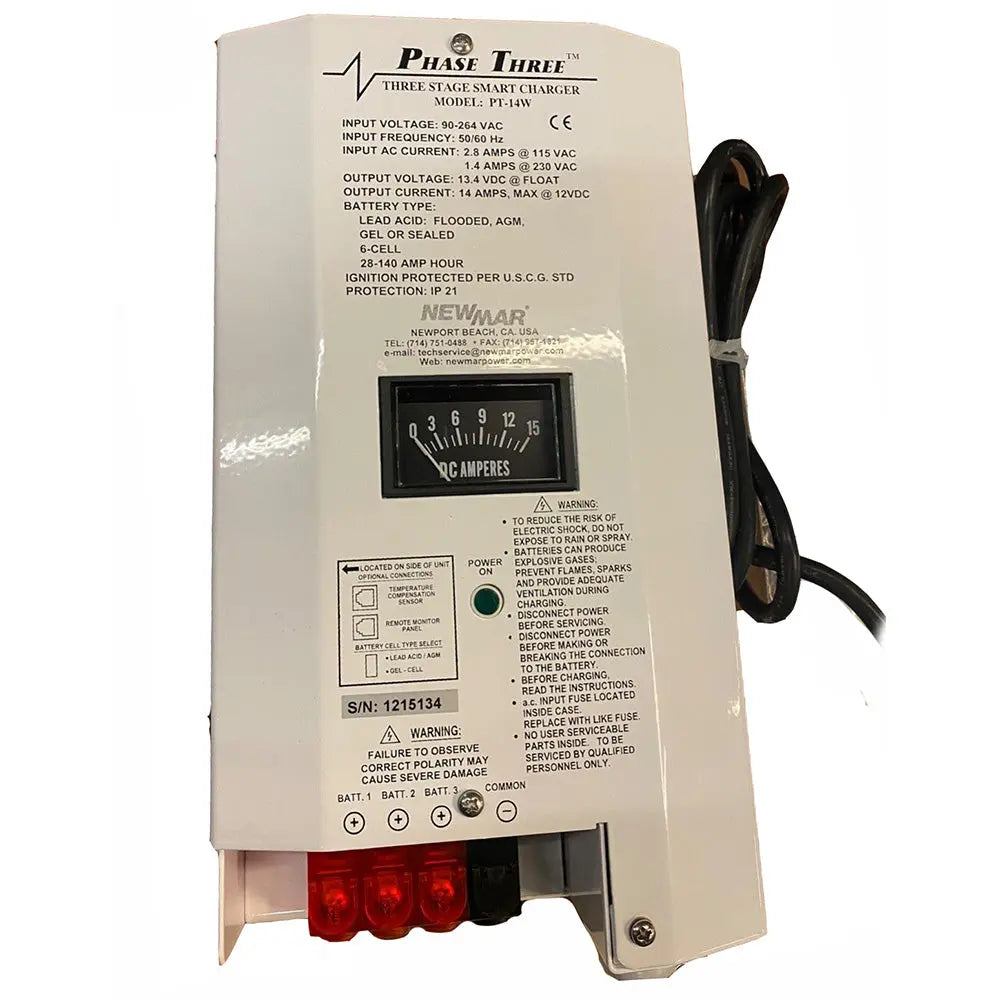

Newmar Power PT-14W Marine Battery Charger with Smart Three-Stage Charging Technology

PT-14W Battery Charger

Newmars Phase Three Series Battery Chargers employ Smart battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries ambient temperature. This model is housed in a rugged stainless-steel case with a durable white powder coat finish, and the internal circuitry is polyurethane-coated for maximum corrosion resistance.

Features:

• Smart circuitry provides three-stage charging bulk, absorption, float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
• The optional sensor adjusts output voltage based on battery temperature. (Except PT-7)
• Current limiting prevents damage from overloading
• Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
• Built to last rugged stainless-steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 85-264
• Input Amps @ Full Load: @ 115 VAC: 2.8, @ 230 VAC: 1.4
• P.F. Rating: .93@230V and .98@115V
• Max Output Amps: 14
• Output Banks: 3
• Battery Capacity (Amp-Hours): 28-140
• Operating Temp. Rating Reference: T-2
• Case Size Reference: A-2
• Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (31.8A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1 (2.8 cm) to height and .92 (2.3 cm) to depth
• Weight Lbs./Kg: 8/4
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Equalize Option: Yes
• Output Indicator Reference: M-3
• Compliance Reference: CG, CE

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C
• Derate Linearly From 100% @ 40 degrees C to 60% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
• Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

• CG: USCG CFR 183.410 (Ignition protected)
• CE: Carries the CE mark
• ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Options:

• Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate the charger output stage. Manual re-initialization of a three-stage charge cycle. With 25 of cable. Panel dimensions: 3 H x 4.75 W)

The Newmar Power PT-14W Marine Battery Charger is engineered for reliable performance in a variety of marine applications including workboats, military vessels, commercial ships, and recreational craft. Featuring advanced Smart battery charging technology, this charger employs a precise three-stage process—bulk, absorption, and float—to ensure fast recovery, optimal conditioning, and extended battery life. Its versatility is enhanced by a selector switch that allows easy adjustment of output voltage to suit gel-cell, flooded lead-acid, or AGM battery types, making it adaptable to a wide range of marine battery configurations. An optional temperature compensation sensor further refines charging accuracy by adjusting voltage based on ambient temperature, promoting battery health and longevity.

Constructed with durability in mind, the PT-14W is housed in a rugged stainless-steel case with a durable white powder coat finish, designed to withstand harsh marine environments. The internal circuitry is polyurethane-coated for maximum corrosion resistance, ensuring longevity in saltwater conditions. The charger features multiple isolated output banks with an ammeter to monitor total output current, providing clear insight into charging performance. Current limiting prevents overloading and potential damage, while the clean, well-regulated output can also serve as a power supply, allowing loads to be powered directly without a battery in line. Additional protection features include thermal protection, forced air cooling, and a drip shield, making the PT-14W compliant with ABS, CE, and US Coast Guard standards.

This model supports a broad range of battery capacities, from 28 to 140 amp-hours, and delivers a maximum output of 14 amps across three output banks. Its compact size and lightweight design make it suitable for installation in constrained spaces while maintaining robust performance. The PT-14W’s design also incorporates optional accessories such as a remote panel for enhanced monitoring and control, as well as a temperature sensor for precise voltage adjustments based on environmental conditions. With its comprehensive feature set, durable construction, and compliance with international standards, the Newmar Power PT-14W Marine Battery Charger offers a reliable and efficient charging solution for demanding marine applications.

Features:

• Smart circuitry provides three-stage charging (bulk, absorption, float)

• Selector switch for gel-cell, flooded lead-acid, and AGM battery types

• Multiple isolated output banks with ammeter for total output current monitoring

• Optional temperature compensation sensor for optimal charging based on ambient temperature

• Current limiting to prevent overload damage

• Can function as a power supply, powering loads directly without a battery

• Rugged stainless-steel case with durable white powder coat finish and optional drip shield

• Protection features include thermal protection, current limiting, forced air cooling, and drip shield

• Compliance with ABS, CE, and US Coast Guard standards
