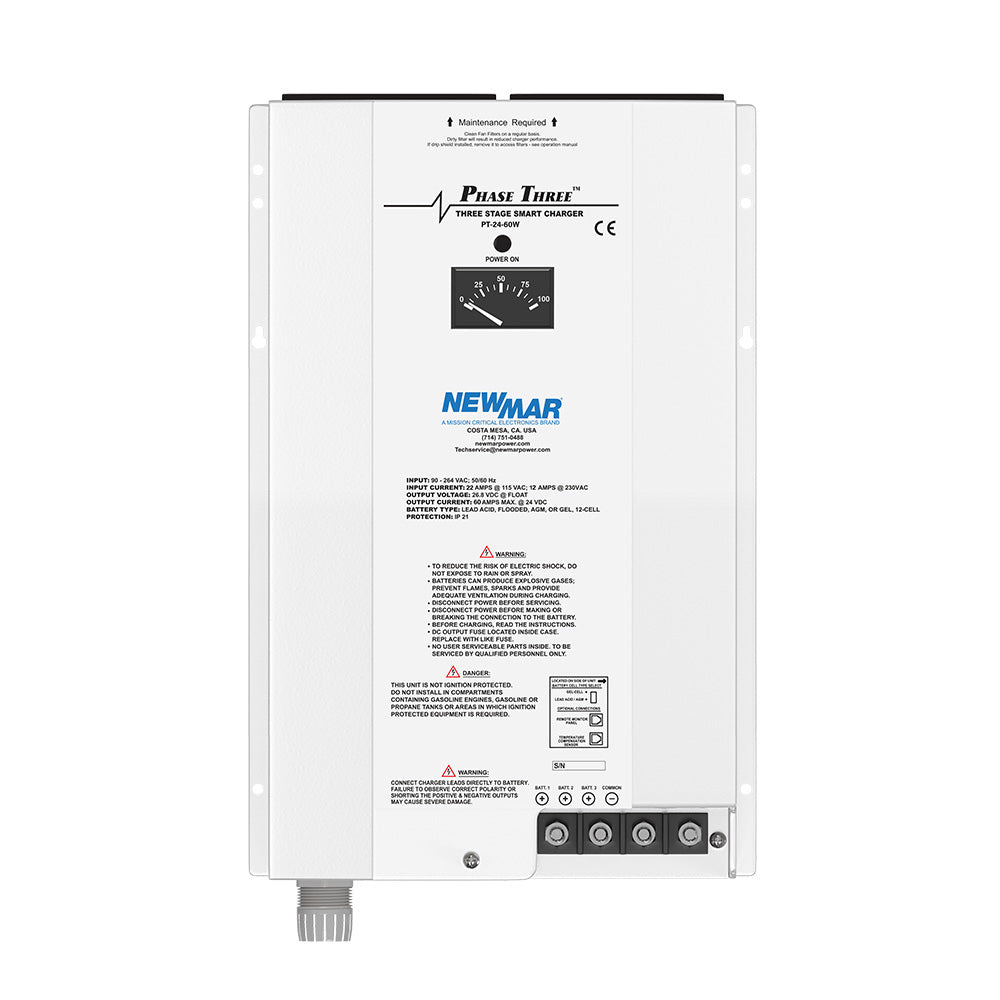

Newmar Power PT-24-60W 24V 60A Smart Marine Battery Charger

PT-24-60W Battery Charger

Smart marine battery charging technology for 24V systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 24V model
• Smart circuitry provides three-stage charging bulk, absorption, float
• Gel-cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current
• The optional sensor adjusts output voltage based on battery temperature
• Current limiting prevents damage from overloading
• Use as a power supply; can power loads without a battery in line
• Built to last rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• Install in conjunction with PT-MCU for additional control and monitoring
• ABS type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 207-253
• Input Amps @ Full Load: @ 115 VAC: NA, @ 230 VAC: 13
• Power Factor: .7
• Max Output Amps: 60
• Output Banks: 3
• Battery Capacity (Amp-Hours): 120-600
• Operating Temp. Rating Reference: T-4
• Case Size Reference: A-5
• Case Size (H x W x D): 17.5E x 12 x 7.2E inches (44.5E x 30.5 x 18.3E centimeters) *Note with Dripshield installed E add 2 (5.08 cm) to height and 1 (2.54 cm) to depth
• Weight Lbs./Kg: 24.1/11
• Optional Temp. Sensor Model: TP
• Remote Panel Model: N/A
• Compliance Reference: EN, CE, ABS

Temperature Rating References:

• Temperature: -20 degrees C to +50 degrees C
• Derate Linearly From Full output

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load
• Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load

Compliance References:

• UL: UL 1950 (per DNB report)
• CG: USCG CFR 183.410 (Ignition protected)
• EN: EN 60335-1
• CE: Carries the CE mark
• ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Newmar Power PT-24-60W Battery Charger

The Newmar Power PT-24-60W is a smart marine battery charger designed for 24-volt electrical systems on workboats, military vessels, commercial vessels, and recreational craft. Its three-stage charging process—bulk, absorption, and float—supports fast battery recovery, proper conditioning, reliable system performance, and extended battery service life. The charger delivers up to 60 amps through three isolated output banks and includes an ammeter for monitoring total output current.

A selectable battery-type switch provides optimized charge and float voltages for gel-cell, flooded lead-acid, and AGM batteries. An optional TP temperature sensor automatically adjusts charging voltage according to battery temperature for improved charging accuracy. The PT-24-60W can also function as a standalone power supply, allowing it to power connected loads without a battery in the circuit. Current limiting, thermal protection, and forced-air cooling help protect the charger during demanding operation.

Built for marine environments, the Newmar Power PT-24-60W features a rugged stainless steel enclosure with a durable white powder-coat finish and polyurethane-coated internal circuitry for enhanced corrosion resistance. It is rated for operation from -4°F to 122°F, supports battery banks from 120 to 600 amp-hours, and accepts 207 to 253 VAC input at 50–60 Hz. The charger is ignition protected and carries EN, CE, and ABS compliance references. For additional control and monitoring, install it with the PT-MCU system. An optional drip shield is available for added installation protection.

Important: This product may not be returned to the original point of purchase. Contact the manufacturer directly with any product issues or concerns. Refer to the owner's manual for installation, operation, and safety information.

Features:

• 24V marine battery charger with 60A maximum output
• Smart three-stage charging with bulk, absorption, and float modes
• Selectable charging profiles for gel-cell, flooded lead-acid, and AGM batteries
• Three isolated output banks with ammeter monitoring of total output current
• Optional temperature sensor adjusts output voltage according to battery temperature
• Current limiting, thermal protection, and forced-air cooling
• Operates as a standalone DC power supply without a battery connected
• Rugged stainless steel case with white powder-coat finish
• Polyurethane-coated internal circuitry for improved corrosion resistance
• Supports battery capacities from 120 to 600 amp-hours
• Compatible with the optional PT-MCU control and monitoring system
• Ignition protected with EN, CE, and ABS compliance references
