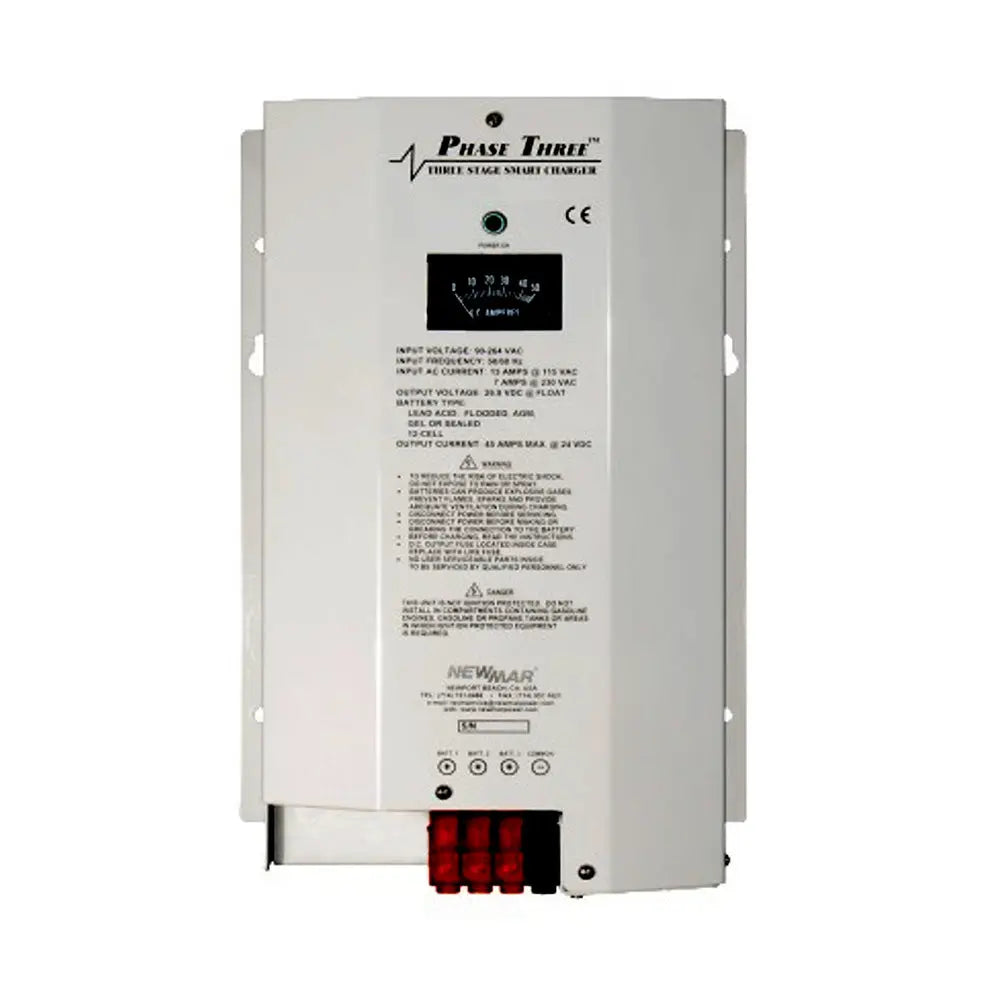

Newmar Power PT-24-8W Marine Battery Charger – 24 Volt Smart Charging System for Vessels and Workboats

PT-24-8W Battery Charger

Smart marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 24-volt model
• Smart circuitry provides three-stage charging bulk, absorption, float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current
• The optional sensor adjusts output voltage based on battery temperature
• Current limiting prevents damage from overloading
• Use as a power supply; can power loads without a battery in line
• Built to last rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• Install in conjunction with PT-MCU for additional control and monitoring
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 85 264
• Input Amps @ Full Load: @ 115 VAC: 2.8, @ 230 VAC: 1.4
• Power Factor: .98@115V and .93@230V
• Max Output Amps: 8
• Output Banks: 3
• Battery Capacity (Amp-Hours): 16 80
• Operating Temp. Rating Reference: T-1
• Case Size Reference: A-1
• Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (28.4A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1 (2.8 cm) to height and .92 (2.3 cm) to depth
• Weight Lbs./Kg: 8/4
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Compliance Reference: CG, CE, ABS

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C
• Derate Linearly From 100% @ 40 degrees C to 60% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load
• Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load

Compliance References:

• UL: UL 1950 (per DNB report)
• CG: USCG CFR 183.410 (Ignition protected)
• EN: EN 60335-1
• CE: Carries the CE mark
• ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Options:

• Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25 of cable. Panel dimensions: 3 H x 4.75 W)

The Newmar Power PT-24-8W Battery Charger is engineered specifically for demanding marine applications, providing reliable and efficient 24-volt battery management for workboats, military vessels, commercial ships, and recreational craft. Its advanced three-stage charging technology ensures fast recovery and optimal conditioning of batteries, which extends their lifespan and enhances overall vessel performance. The charger intelligently interacts with different types of batteries, including gel-cell, flooded lead-acid, and AGM, thanks to an adjustable selector switch that sets the appropriate voltage for each chemistry. Additionally, an optional temperature compensation sensor dynamically adjusts output voltage based on ambient temperature, ensuring batteries are charged safely and effectively under varying conditions.

Constructed from a rugged stainless steel case with a durable white powder coat finish, the PT-24-8W is designed to withstand harsh marine environments. Its polyurethane-coated internal circuitry offers maximum corrosion resistance, while features such as current limiting, thermal protection, forced air cooling, and a drip shield provide comprehensive safety and durability. The charger offers multiple isolated output banks and an ammeter to monitor total output current, enabling precise control and monitoring during operation. Its versatility is enhanced by the ability to function as a power supply, capable of powering loads independently without a battery in line, making it suitable for various auxiliary applications onboard.

Designed to meet strict marine and safety standards, the PT-24-8W is compliant with ABS, UL, CE, and other regulatory certifications. Its compact design fits easily into tight engine compartments or control panels, with dimensions that allow for straightforward installation. The charger supports operating temperatures from -10°C to +60°C, with a linear derating at higher temperatures to maintain optimal performance. Optional accessories, like a remote control panel and temperature sensor, further customize the system to specific vessel requirements. Whether used as a primary charger or a backup power source, the Newmar Power PT-24-8W delivers dependable, high-quality charging performance for demanding marine environments.

Features:

• Smart circuitry provides three-stage charging: bulk, absorption, float

• Selector switch adjusts output voltage for gel-cell, flooded lead-acid, or AGM batteries

• Multiple isolated output banks with an ammeter for current monitoring

• Optional temperature sensor adjusts voltage based on ambient temperature

• Current limiting and thermal protection prevent overload and damage

• Can function as a power supply without a battery in line

• Rugged stainless steel case with durable powder coat finish and optional drip shield

• Marine-grade internal circuitry with corrosion resistance

• Compliance with ABS, UL, CE, and other safety standards

• Compact design suitable for tight spaces onboard
