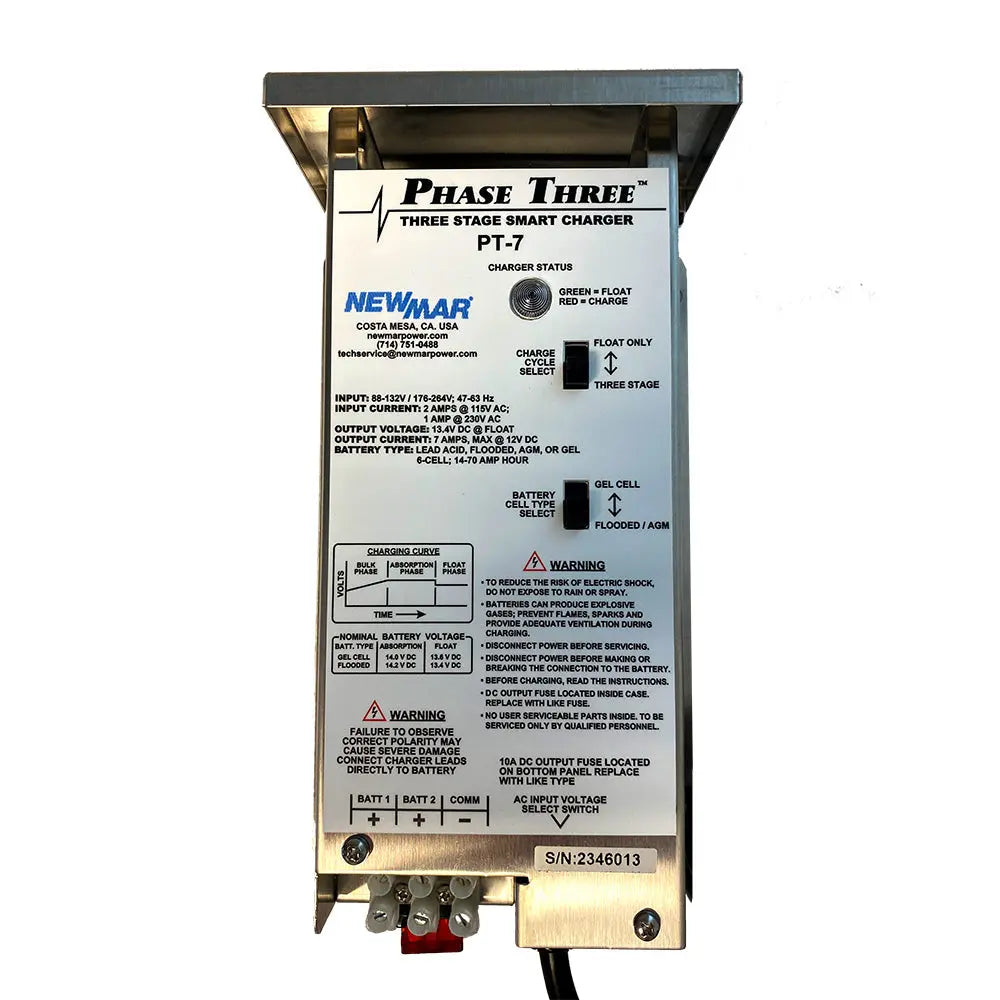

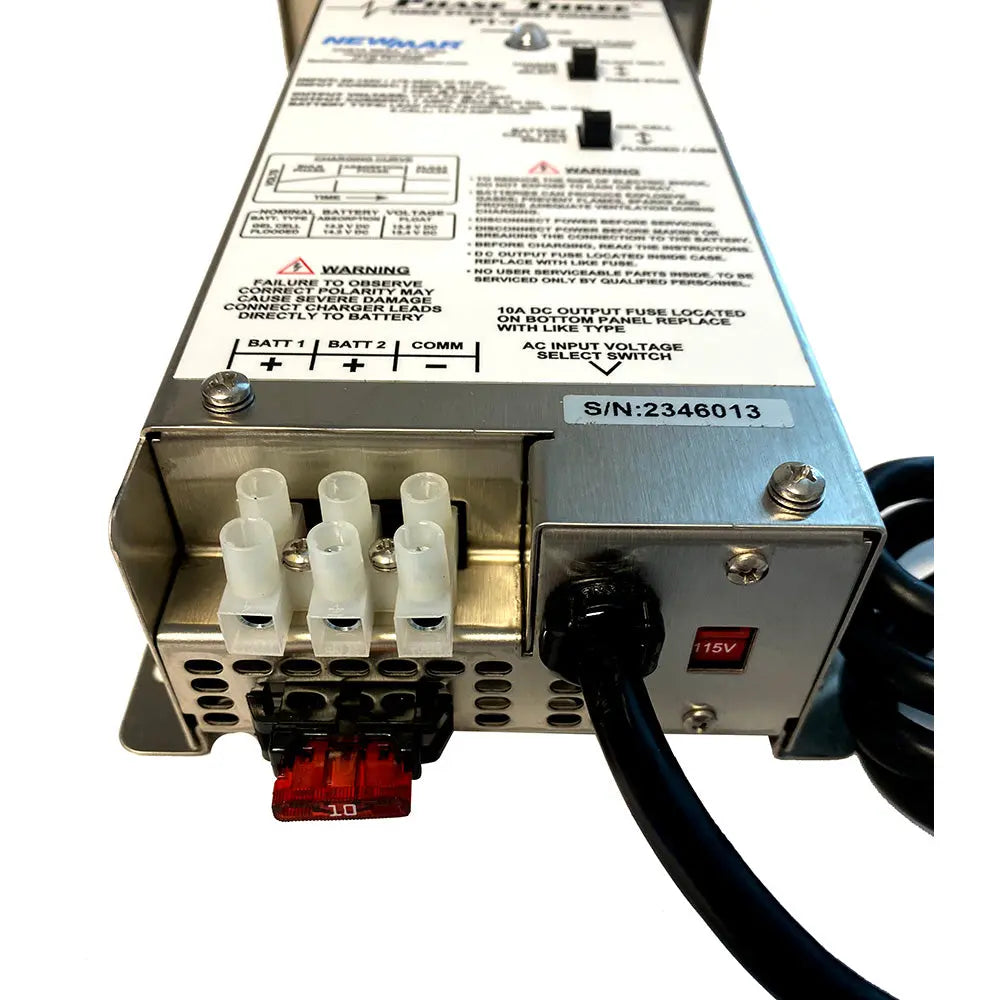

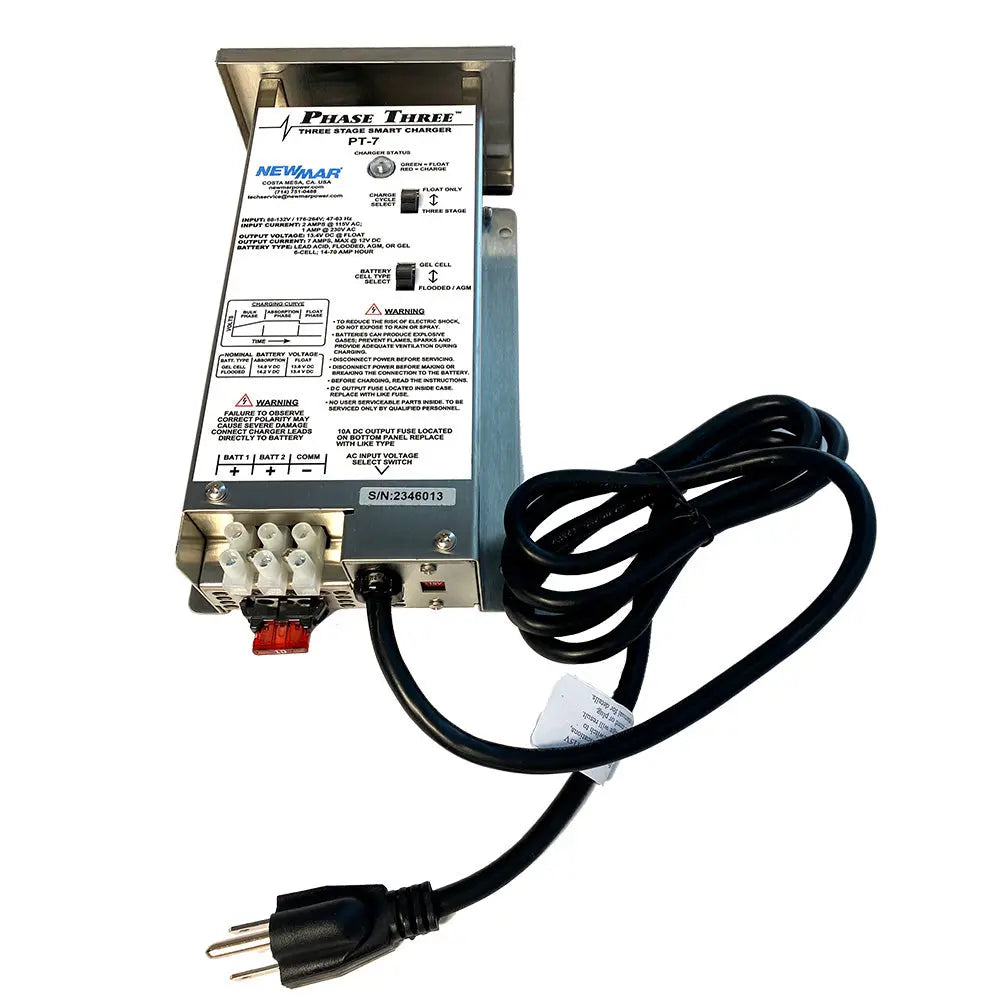

Newmar Power PT-7 Battery Charger for Marine and Commercial Applications

PT-7 Battery Charger

Newmars Phase Three Series Battery Chargers employ Smart battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries ambient temperature. This model is housed in a rugged stainless-steel case with a durable white powder coat finish, and the internal circuitry is polyurethane-coated for maximum corrosion resistance.

Features:

• Smart circuitry provides three-stage charging bulk, absorption, float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
• The optional sensor adjusts output voltage based on battery temperature. (Except PT-7)
• Current limiting prevents damage from overloading
• Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
• Built to last rugged stainless-steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 88-132 or 176-264
• Input Amps @ Full Load: @ 115 VAC 2, @ 230 VAC 1
• P.F. Rating: >.65
• Max Output Amps: 7
• Output Banks: 2
• Battery Capacity (Amp-Hours): 14-70
• Operating Temp. Rating Reference: T-1
• Case Size Reference: A-1
• Case Size (H x W x D): 10.5 x 5.0 x 2.8 inches (26.7 x 12.7 x 7.1 centimeters)
• Weight Lbs./Kg: 3.2/1.5
• Optional Temp. Sensor Model: N/A
• Remote Panel Model: N/A
• Equalize Option: No
• Output Indicator Reference: M-1
• Compliance Reference: CG, CE

Temperature Rating References:

• Temperature: -10 degrees C to +45 degrees C
• Derate Linearly From 100% @ 0 degrees C to 80% @ -10 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
• Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

• CG: USCG CFR 183.410 (Ignition protected)
• CE: Carries the CE mark
• ABS: PT Series meet SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13

The Newmar Power PT-7 Battery Charger is a versatile and durable solution designed for 12-volt systems used in marine, military, commercial, and recreational vessels. Featuring advanced Smart battery charging technology, the PT-7 provides a three-stage charging process—bulk, absorption, and float—that ensures fast recovery, optimal battery conditioning, and extended battery life. Its intelligent circuitry interacts with various battery types, including gel-cell, flooded lead-acid, and AGM, with a simple selector switch allowing users to switch between these modes for the most efficient charging profile.

Constructed in a rugged stainless-steel case with a white powder coat finish, the PT-7 offers excellent resistance to harsh marine environments. The internal circuitry is polyurethane-coated for additional corrosion protection, making it suitable for demanding conditions. The charger includes multiple isolated output banks and an ammeter to monitor total output current, except for the PT-7 model. An optional temperature compensation sensor adjusts the output voltage based on ambient temperature, ensuring batteries receive ideal charging regardless of environmental changes. Safety features such as current limiting, thermal protection, and forced air cooling enhance reliability and prevent damage from overloads or overheating.

The PT-7 is not only a powerful charger but also a flexible power supply. Its well-regulated, clean output can be used to power loads directly without a battery in line, offering additional utility in various applications. It complies with ABS-type standards for battery charging and power supplies, meeting several international safety and performance regulations, including CG and CE certifications. With a maximum output of 7 amps and two output banks, it supports battery capacities ranging from 14 to 70 amp-hours, making it suitable for a broad range of vessel sizes and configurations. Its compact size and lightweight design make installation straightforward, while its robust construction ensures long-term durability in marine environments.

The PT-7 features adjustable output voltages for different battery chemistries: approximately 14.0 VDC for gel-cell and 14.2 VDC for flooded/AGM batteries at 50% load, with float voltages around 13.6 and 13.4 VDC respectively. It operates efficiently within a temperature range of -10°C to +45°C, with linear derating at lower temperatures. Certified by USCG, CE, and ABS standards, the PT-7 is a reliable choice for professional and recreational marine applications, offering peace of mind with its comprehensive protection features and rugged design.

Features:

• Smart circuitry provides three-stage charging including bulk, absorption, and float

• Selectable battery type switch for gel-cell, flooded lead-acid, and AGM batteries

• Multiple isolated output banks with ammeter for current monitoring (excluding PT-7)

• Optional temperature sensor for adjusting output voltage based on ambient temperature (excluding PT-7)

• Current limiting to prevent overload damage

• Can be used as a power supply to directly power loads without a battery

• Rugged stainless-steel case with durable white powder coat finish and optional drip shield

• Protection features including thermal protection, current limiting, and forced air cooling

• Certified for marine and industrial use with ABS, CG, and CE approvals
