Newmar Power PX-1 Waterproof Junction Box for Marine and Electronic Wiring

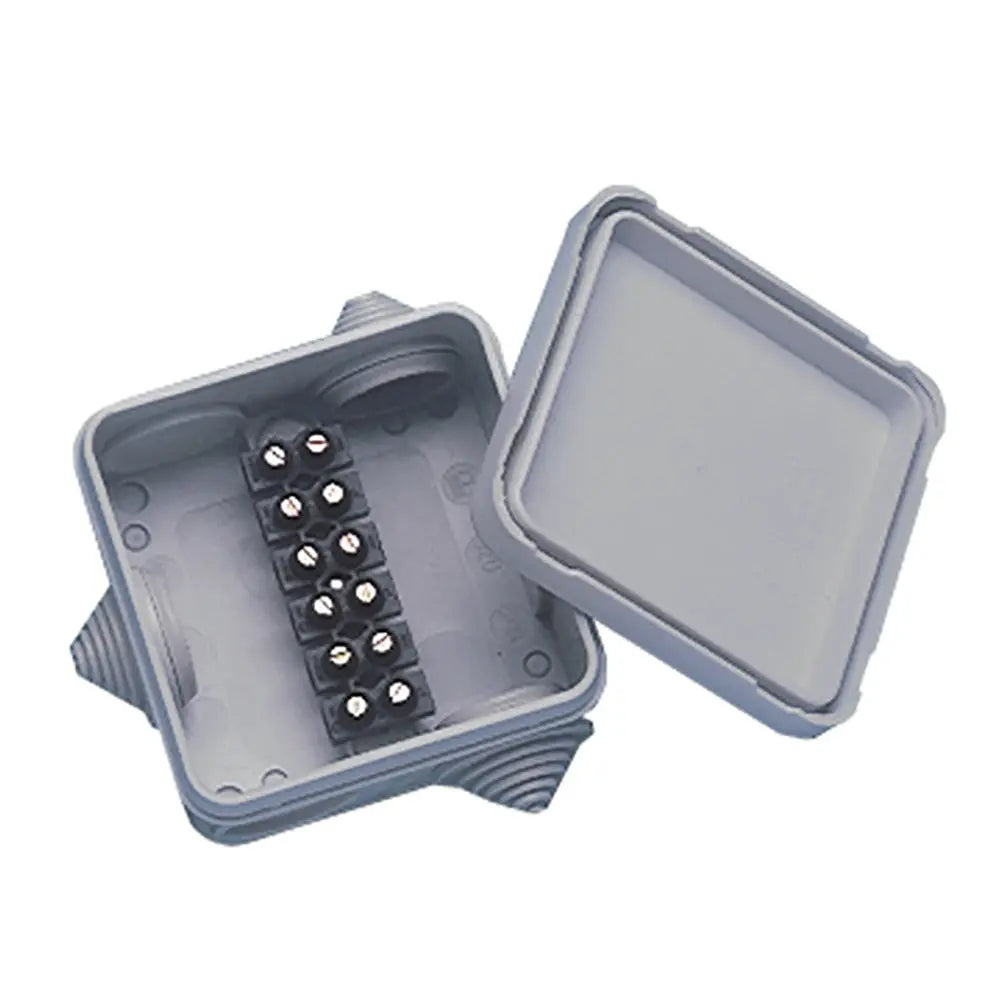

PX-1 Junction Box

This waterproof junction box is ideal for making wiring connections above or below decks, even in areas subject to occasional spray.

Connector Strips Installed in Boxes

Molded nylon encases pairs of connectors that use screw compression to secure wires without the use of lugs. Ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel finger compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage and meeting ABYC standards.

Features:

• Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
• The snap-on cover provides a watertight seal
• Universal cut-to-fit graduated diameter cable entries accommodate a wide cable range
• Multiple position connector strips with captive screw compression wire terminals installed, see matrix below for connector strip specifications per box
• Multiple knockouts are provided for conduit access (in addition to cable entries)
• IEC Waterproof Rating: IP55 Water projected in jets against the enclosure from any direction shall have no harmful effects.

Specifications:

• Number of Connector Strips: 1
• Positions per Strip: 6
• Max Wire Gauge: 16
• Number of Cable Entry Ports: 5
• Number of Cable Entries Installed: 3
• Spare Cable Entries Provided: 2
• Cable Diameter Range (inches): .14 .81
• Cable Diameter Range (mm): 3.5 20.5
• Box Size (inches): 2.95 x 2.95 x 1.66
• Box Size (cm): 7.5 x 7.5 x 4.2

The Newmar Power PX-1 Junction Box is a rugged, waterproof enclosure designed for reliable electrical connections in marine and outdoor environments. Constructed from high-impact polypropylene, this junction box offers superior resistance to corrosion, impact, and environmental elements. Its IP55 waterproof rating ensures protection against water jets from any direction, making it suitable for areas exposed to spray and moisture. The snap-on cover provides a tight, watertight seal, safeguarding internal components and wiring connections from water ingress and debris. The box features multiple knockouts and universal cable entries that can be cut to fit cables ranging from 3.5 to 20.5 millimeters in diameter, offering flexibility in installation and cable management. The interior includes one connector strip with six positions, equipped with captive screw compression terminals that secure wires without the need for lugs. The brass barrels of the terminals gently capture and hold wires, with stainless steel fingers applying compression without damaging copper strands, adhering to ABYC standards for marine wiring safety. Ideal for above or below deck wiring, the PX-1 ensures secure, organized connections in challenging environments, making it suitable for electronic installations, boat wiring, and outdoor electrical projects. Its compact size and durable design make it an essential component for professional and DIY electrical setups that demand high standards of waterproofing and corrosion resistance.

Features:

• Constructed from high-impact polypropylene for durability and corrosion resistance

• IP55 waterproof rating protects against water jets from any direction

• Snap-on, watertight cover ensures a secure seal

• Universal cable entries accommodate cables from 3.5 to 20.5 mm in diameter

• Multiple knockouts allow for flexible conduit access

• Includes a connector strip with six screw compression terminals

• Brass barrels securely hold wires without the use of lugs

• Stainless steel fingers provide gentle compression, meeting ABYC standards

• Designed for above or below deck wiring in marine or outdoor applications

• Compact dimensions suitable for tight installation spaces
