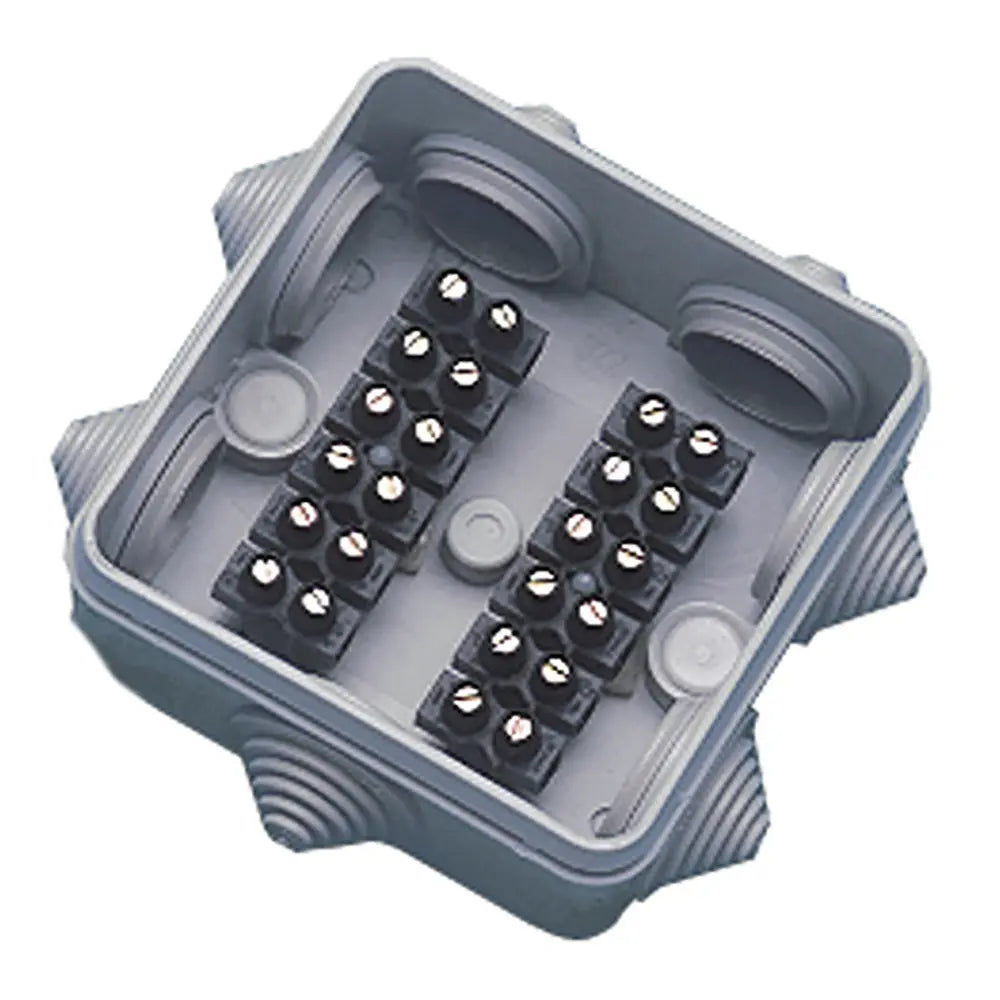

Newmar Power PX-2 Waterproof Junction Box for Marine and Electrical Applications

PX-2 Junction Box

This waterproof junction box is ideal for making wiring connections above or below decks, even in areas subject to occasional spray.

Connector Strips Installed in Boxes

Molded nylon encases pairs of connectors that use screw compression to secure wires without the use of lugs. Ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel finger compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage and meeting ABYC standards.

Features:

• Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
• The snap-on cover provides a watertight seal
• Universal cut-to-fit graduated diameter cable entries accommodate a wide cable range
• Multiple position connector strips with captive screw compression wire terminals installed, see matrix below for connector strip specifications per box
• Multiple knockouts are provided for conduit access (in addition to cable entries)
• IEC Waterproof Rating: IP55 Water projected in jets against the enclosure from any direction shall have no harmful effects.

Specifications:

• Number of Connector Strips: 2
• Positions per Strip: 6
• Max Wire Gauge: 16
• Number of Cable Entry Ports: 7
• Number of Cable Entries Installed: 7
• Spare Cable Entries Provided: 0
• Cable Diameter Range (inches): .14 .81
• Cable Diameter Range (mm): 3.5 20.5
• Box Size (inches): 3.35 x 3.35 x 1.66
• Box Size (cm): 8.5 x 8.5 x 4.2

The Newmar Power PX-2 Junction Box is designed for reliable and secure electrical connections in challenging environments. Made from durable, non-corrosive high-impact polypropylene, this waterproof enclosure ensures protection against moisture, dust, and spray, making it ideal for marine, outdoor, and industrial installations. The snap-on cover provides a watertight seal, preventing water ingress and safeguarding your wiring connections under demanding conditions. Its universal, cut-to-fit graduated diameter cable entries accommodate a wide range of cable sizes, simplifying installation and offering flexibility for various wiring needs. The box features two connector strips, each with six positions, equipped with captive screw compression terminals that secure wires without the need for lugs, ensuring a clean and efficient wiring process. Brass barrels inside the connector strips capture wires, which are held in place with a stainless steel finger, protecting copper strands from damage and meeting ABYC standards for marine safety. Multiple knockouts are included, providing additional conduit access points for enhanced versatility. With an IEC waterproof rating of IP55, the PX-2 junction box withstands water projected in jets from any direction without harm, making it suitable for exposed environments. The compact size and robust construction make the PX-2 an excellent choice for making secure wiring connections above or below decks, even in areas prone to occasional spray. It is well-suited for electronic installations requiring a reliable, weatherproof junction box that complies with marine and industrial standards.

Features:

• Constructed from rugged, non-corrosive high-impact polypropylene for durability and corrosion resistance

• Watertight snap-on cover provides a secure seal against water ingress

• Universal cut-to-fit graduated diameter cable entries accommodate cables from 3.5 to 20.5 mm (0.14 to 0.81 inches)

• Includes two connector strips with six positions each, featuring captive screw compression terminals for secure wiring

• Brass barrels capture wires, protected by stainless steel fingers to prevent damage to copper strands

• Multiple knockouts allow for additional conduit access points

• IEC Waterproof Rating: IP55 ensures protection against water jets from any direction
